| 01570-06103-000 |
Bolt |

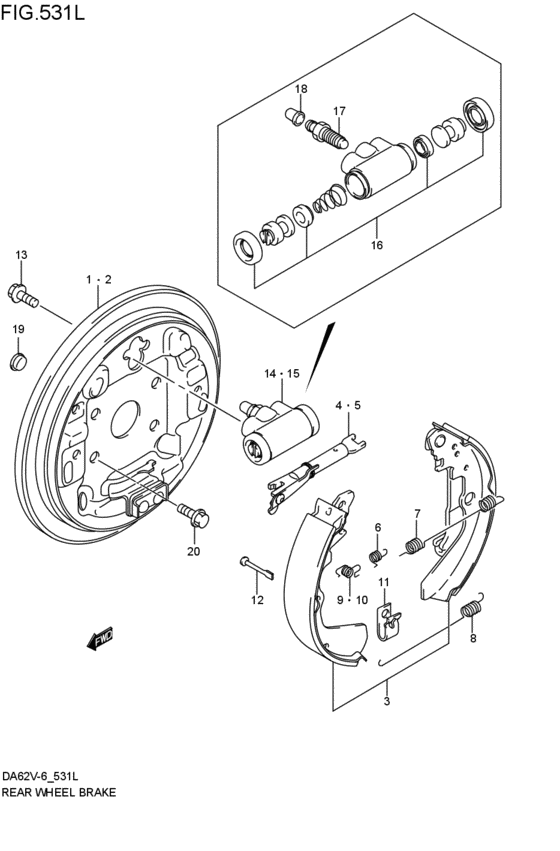

rear wheel brakes (2003-08-01~2005-09-01) |
| 01570-0610A-000 |
Bolt |
rear wheel brakes (2003-08-01~2005-09-01) |
| 09112-08001-000 |
BOLT(8X20) |
rear wheel brakes (2003-08-01~2005-09-01) |
| 52243-84010-000 |
SPRING,SHOE HOLD DOWN |
rear wheel brakes (2003-08-01~2005-09-01) |
| 52400-50810-000 |
CUP/BOOT SET,PISTON |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53110-79A01-000 |
プレート,バッキング,ライト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53141-75F00-000 |
PLUG,BACKING PLATE |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53160-79A01-000 |
プレート,バッキング,レフト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53200-79A01-000 |
SHOE SET,BRAKE |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53231-79A00-000 |
スプリング,シューリターン,アッパ |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53232-50FA0-000 |
SPRING,SHOE RETURN LOWER |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53241-84010-000 |
PIN,SHOE HOLD DOWN |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53401-50FA0-000 |
CYLINDER ASSY,REAR WHEEL,R |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53402-50FA1-000 |
CYLINDER ASSY,RR WHEEL,L |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53701-79A00-000 |
アジャスタアッシ,ライト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53702-79A00-000 |
アジャスタアッシ,レフト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 53711-79A00-000 |
スプリング,アジャスタ |
rear wheel brakes (2003-08-01~2005-09-01) |
| 54524-79A00-000 |
スプリング,ストラット,レフト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 54824-79A00-000 |
スプリング,ストラット,ライト |
rear wheel brakes (2003-08-01~2005-09-01) |
| 55151-60D10-000 |
PLUG,BLEEDER |
rear wheel brakes (2003-08-01~2005-09-01) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
rear wheel brakes (2003-08-01~2005-09-01) |
