| 01551-12253-000 |
ボルト |

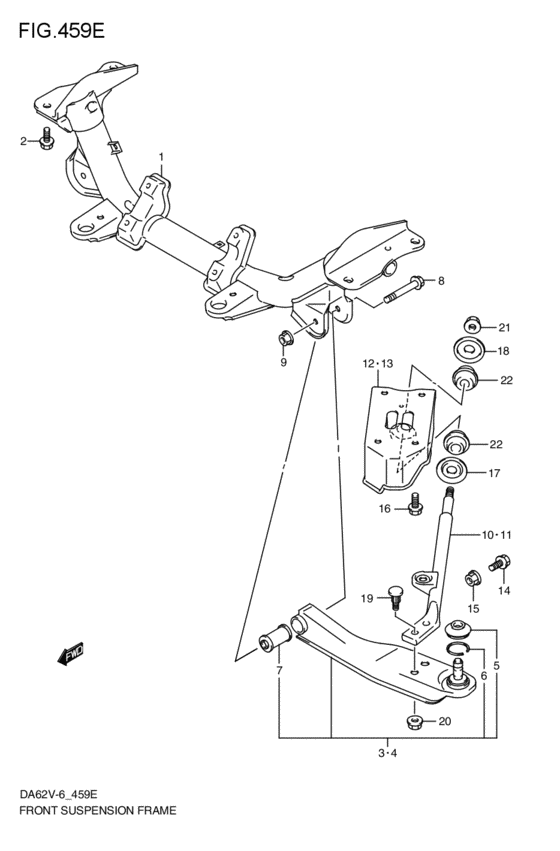

front suspension frame (2003-08-01~2005-09-01) |
| 01551-1225A-000 |
Bolt |
front suspension frame (2003-08-01~2005-09-01) |
| 08316-10103-000 |
Nut |
front suspension frame (2003-08-01~2005-09-01) |
| 08316-1010B-000 |
NUT |
front suspension frame (2003-08-01~2005-09-01) |
| 08316-10123-000 |
Nut |
front suspension frame (2003-08-01~2005-09-01) |
| 08316-1012A-000 |
NUT |
front suspension frame (2003-08-01~2005-09-01) |
| 09100-10305-000 |
BOLT(10X45) |
front suspension frame (2003-08-01~2005-09-01) |
| 09103-10033-000 |
BOLT(10X70) |
front suspension frame (2003-08-01~2005-09-01) |
| 09103-10297-000 |
Bolt (10x70) |
front suspension frame (2003-08-01~2005-09-01) |
| 09119-12016-000 |
BOLT(12X33) |
front suspension frame (2003-08-01~2005-09-01) |
| 09135-10010-000 |
BOLT(10X28) |
front suspension frame (2003-08-01~2005-09-01) |
| 09159-10102-000 |
NUT |
front suspension frame (2003-08-01~2005-09-01) |
| 09159-12017-000 |
NUT |
front suspension frame (2003-08-01~2005-09-01) |
| 09401-27402-000 |
CLIP |
front suspension frame (2003-08-01~2005-09-01) |
| 45201-77A10-000 |
Arm assy,fr suspension,r |
front suspension frame (2003-08-01~2005-09-01) |
| 45201-77A12-000 |
ARM ASSY,FR SPNSN,R |
front suspension frame (2003-08-01~2005-09-01) |
| 45202-77A10-000 |
Arm assy,fr suspension,l |
front suspension frame (2003-08-01~2005-09-01) |
| 45202-77A12-000 |
ARM ASSY,FR SPNSN,L |
front suspension frame (2003-08-01~2005-09-01) |
| 45261-77A10-000 |
BUSH,FR SUSPENSION CONTROL |
front suspension frame (2003-08-01~2005-09-01) |
| 45310-64H00-000 |
ROD,FRONT COMPRESSION,R |
front suspension frame (2003-08-01~2005-09-01) |
| 45313-70D00-000 |
WASHER,COMPRESSION ROD |
front suspension frame (2003-08-01~2005-09-01) |
| 45313-77A01-000 |
WASHER,COMPRESSION ROD |
front suspension frame (2003-08-01~2005-09-01) |
| 45320-64H00-000 |
ROD,FRONT COMPRESSION,L |
front suspension frame (2003-08-01~2005-09-01) |
| 45341-78A00-000 |
BUSHING,COMPRESSION ROD |
front suspension frame (2003-08-01~2005-09-01) |
| 45350-78A01-000 |
BRACKET,COMPRESSION ROD,R |
front suspension frame (2003-08-01~2005-09-01) |
| 45360-78A01-000 |
BRACKET,COMPRESSION ROD,L |
front suspension frame (2003-08-01~2005-09-01) |
| 45700-70810-000 |
Seal Set,dust |
front suspension frame (2003-08-01~2005-09-01) |
| 45723-70B00-000 |
SEAL SET,DUST |
front suspension frame (2003-08-01~2005-09-01) |
| 45723-70B01-000 |
Seal Set,dust |
front suspension frame (2003-08-01~2005-09-01) |
| 45910-63H20-000 |
フレーム,フロントサスペンション |
front suspension frame (2003-08-01~2005-09-01) |
