Search › Model › DA62V
DA62V

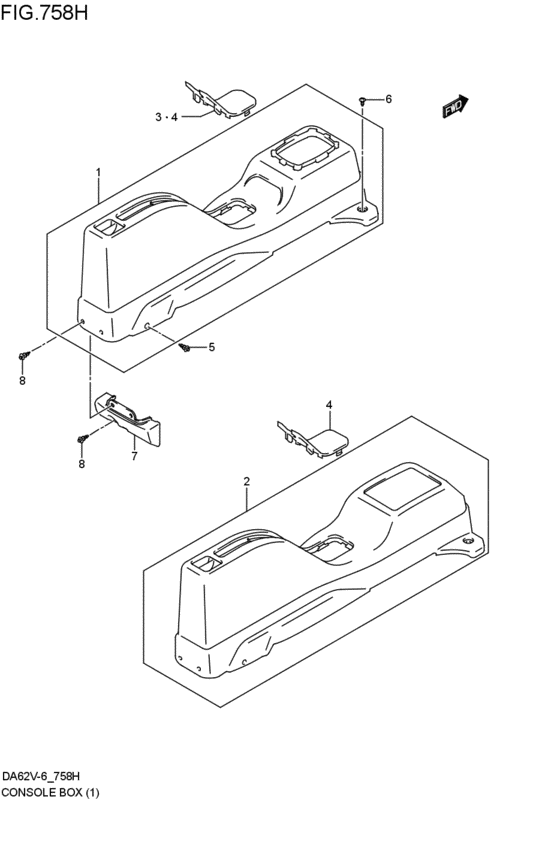

console box (MT,3AT; 2003-08-01~2005-09-01) 7
| # | OEM | Part name |
|---|---|---|
| 2 | 75810-78A11-P4Z | ボックス,コンソール(グレー) |
| 3 | 75813-78A00-P4Z | CAP,CONSOLE BOX |
| 5 | 09409-07308-P4Z | CLIP(GRAY) |
| 6 | 03242-05123-000 | Screw, inner cover |
| 6 | 03241-0512A-000 | SCREW |
| 7 | 85496-79A00-P4Z | COVER,SEAT BELT HARNESS |
| 8 | 09409-06314-P4Z | CLIP(GRAY) |
| OEM | Part name | Category |
|---|---|---|
| 03241-0512A-000 | SCREW | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 03242-05123-000 | Screw, inner cover | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 09409-06314-P4Z | CLIP(GRAY) | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 09409-07308-P4Z | CLIP(GRAY) | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 75810-78A11-P4Z | ボックス,コンソール(グレー) | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 75813-78A00-P4Z | CAP,CONSOLE BOX | console box (MT,3AT; 2003-08-01~2005-09-01) |
| 85496-79A00-P4Z | COVER,SEAT BELT HARNESS | console box (MT,3AT; 2003-08-01~2005-09-01) |
