Search › Model › DA62V
DA62V

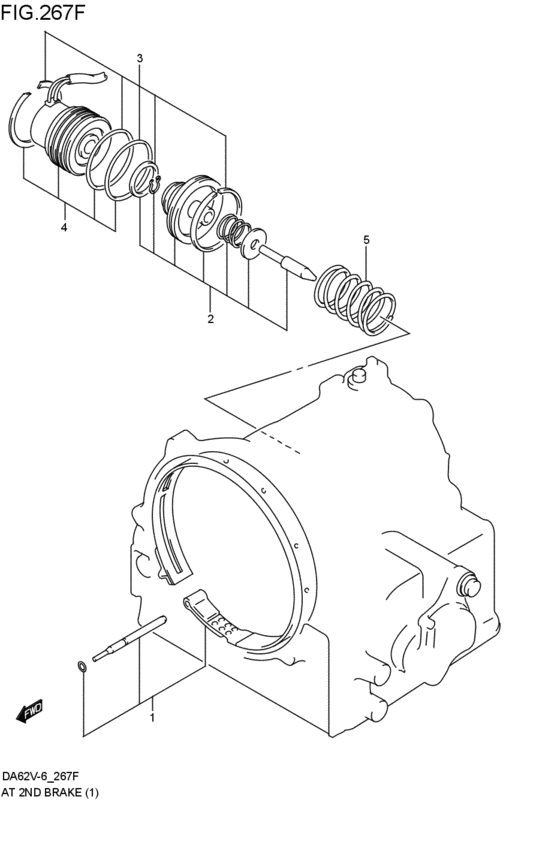

at - second brakes (3AT; 2003-08-01~2005-09-01) 5
| # | OEM | Part name |
|---|---|---|
| 1 | 26700-81CT0-000 | BAND SET,2ND BRAKE |
| 2 | 26740-81C00-000 | PISTON ASSY,2ND BRAKE |
| 3 | 26741-78DT0-000 | SEAL RING SET,2ND BRAKE |
| 4 | 26750-78DT0-000 | COVER SET,2ND BK PISTON |
| 5 | 26762-81C00-000 | SPRING,2ND BRAKE RETURN |
| OEM | Part name | Category |
|---|---|---|
| 26700-81CT0-000 | BAND SET,2ND BRAKE | at - second brakes (3AT; 2003-08-01~2005-09-01) |
| 26740-81C00-000 | PISTON ASSY,2ND BRAKE | at - second brakes (3AT; 2003-08-01~2005-09-01) |
| 26741-78DT0-000 | SEAL RING SET,2ND BRAKE | at - second brakes (3AT; 2003-08-01~2005-09-01) |
| 26750-78DT0-000 | COVER SET,2ND BK PISTON | at - second brakes (3AT; 2003-08-01~2005-09-01) |
| 26762-81C00-000 | SPRING,2ND BRAKE RETURN | at - second brakes (3AT; 2003-08-01~2005-09-01) |
