Search › Model › DA62T
DA62T

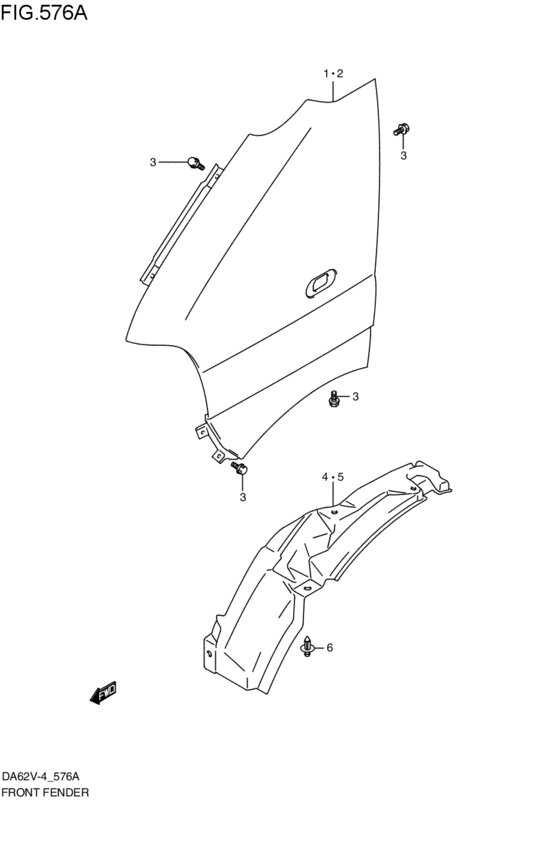

front fender (2001-08-01~2002-12-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 58511-78A30-000 | PANEL,FR FENDER,R |
| 2 | 58611-78A30-000 | PANEL,FR FENDER,L |
| 3 | 02162-06123-000 | Bolt (6x12) |
| 3 | 02162-0612B-000 | SCREW - Bolt |
| 3 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 4 | 72361-79A01-000 | LINING,FR FENDER,R |
| 5 | 72371-79A01-000 | LINING,FR FENDER,L |
| 6 | 09409-07308-5PK | CLIP(BLACK) |
| OEM | Part name | Category |
|---|---|---|
| 02162-06123-000 | Bolt (6x12) | front fender (2001-08-01~2002-12-01) |
| 02162-0612A-000 | SCREW - Bolt, bracket | front fender (2001-08-01~2002-12-01) |
| 02162-0612B-000 | SCREW - Bolt | front fender (2001-08-01~2002-12-01) |
| 09409-07308-5PK | CLIP(BLACK) | front fender (2001-08-01~2002-12-01) |
| 58511-78A30-000 | PANEL,FR FENDER,R | front fender (2001-08-01~2002-12-01) |
| 58611-78A30-000 | PANEL,FR FENDER,L | front fender (2001-08-01~2002-12-01) |
| 72361-79A01-000 | LINING,FR FENDER,R | front fender (2001-08-01~2002-12-01) |
| 72371-79A01-000 | LINING,FR FENDER,L | front fender (2001-08-01~2002-12-01) |
