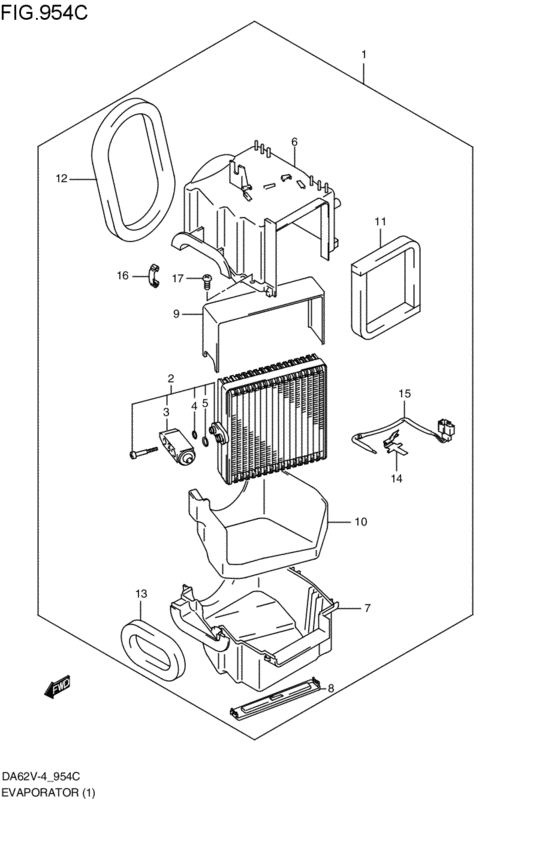

| 03511-04123-000 |
Screw 4x12 |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 03511-0412A-000 |
SCREW |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 74316-85500-000 |
CLAMP - Clamp, case |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95400-78A04-000 |
COOLING UNIT |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95410-81A50-000 |
EVAPORATOR ASSY |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95421-78A01-000 |
CASE,EVAPO,UPPER |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95422-78A00-000 |
CASE,EVAP,LOWER |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95423-81A01-000 |
COVER,FILTER |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95424-78A00-000 |
PACKING,UPPER CASE |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95425-78A00-000 |
PACKING,LOWER CASE |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95431-81A00-000 |
VALVE,EXPANSION CALSONIC GOLD |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95452-70B21-000 |
CLAMP,THERMISTER |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95461-70B01-000 |
PACKING,HEATER - Packing, unit outlet |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95461-78A00-000 |
PACKING,UNIT |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95463-78A00-000 |
PACKING,DASH |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95541-81A02-000 |
THERMISTOR,EVAP |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95895-50G00-000 |
O-RING,D:2.4 ID:10.8 |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
| 95896-50G00-000 |
O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
evaporator (T:KUF; 2001-08-01~2002-12-01) |
