Search › Model › DA62T

DA62T

Suzuki CARRY-EVERY · 2001 · 2,071 parts · 121 categories

2,071 items

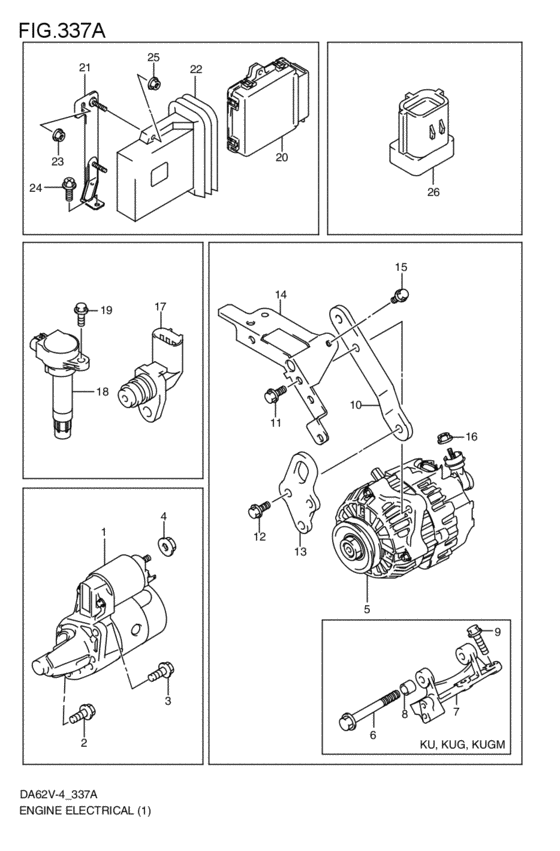

engine electrical (4V:T; 2001-08-01~2002-12-01) 60

#	OEM	Part name
1	31100-78A00-000	モータアッシ,スターティング
1	31100-78A20-000	MOTOR ASSY,STARTING
1	31100-78A10-000	MOTOR ASSY,STARTING
2	01550-08303-000	Bolt
2	01550-0830B-000	Bolt
2	01550-0830A-000	Bolt - Bolt, mount oil seal cover
4	08316-10083-000	Nut
4	08316-1008B-000	NUT
5	31400-65H02-000	GENERATOR ASSY
5	31400-65H03-000	GENERATOR ASSY
5	31400-65H11-000	Generator assy
5	31400-65H12-000	GENERATOR ASSY
5	31400-65H13-000	Generator Assy
6	01550-10853-000	Bolt
6	01550-1085A-000	Bolt
7	11551-65H00-000	BRACKET,GENERATOR
8	11555-60G00-000	Bush, generator
8	11555-60G01-000	BUSH
9	01550-08253-000	Bolt, rear
9	01550-0825B-000	Bolt
9	01550-0825A-000	Bolt
10	11561-65H00-000	ARM,GENERATOR
11	09118-08107-000	BOLT(8X25)
12	01550-08203-000	Bolt
12	01550-0820B-000	Bolt
12	01550-0820A-000	Bolt - Bolt, funnel bracket
13	11851-65H00-000	HOOK,ENGINE
14	31614-65H20-000	BRACKET,GENERATOR COVER
15	01550-06123-000	Bolt
15	01550-0612B-000	Bolt - Bolt, clamp
15	01550-0612A-000	Bolt
16	08316-10063-000	Nut
16	08316-1006B-000	NUT
17	33220-76G30-000	SENSOR ASSY,CAM POSITION
18	33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)
18	33400-85K10-000	COIL ASSY,IGNITION DE
18	33400-76G11-000	Coil assy, ignition
19	01550-06203-000	Bolt
19	01550-0620B-000	Bolt - Bolt, inspection cap
20	33920-65H01-000	Controller assembly, injection
20	33920-65H11-000	コントローラアッシ,インジェクション/AT
21	33924-78A30-000	BRACKET,EPI CONT
22	33925-67H00-000	COVER,EPI CONT
22	33925-78A00-000	Cover, cont
23	09159-06076-000	NUT
24	02162-06123-000	Bolt (6x12)
24	02162-0612B-000	SCREW - Bolt
24	02162-0612A-000	SCREW - Bolt, bracket
26	33926-78AA0-000	RESISTOR,IGT NO.10
26	33926-78AB0-000	RESISTOR,IGT NO.11
26	33926-78A01-000	RESISTOR,IGT NO.N
26	33926-78A10-000	RESISTOR,IGT NO.1
26	33926-78A20-000	RESISTOR,IGT NO.2
26	33926-78A30-000	RESISTOR,IGT NO.3
26	33926-78A40-000	RESISTOR,IGT NO.4
26	33926-78A50-000	RESISTOR,IGT NO.5
26	33926-78A60-000	RESISTOR,IGT NO.6
26	33926-78A70-000	RESISTOR,IGT NO.7
26	33926-78A80-000	RESISTOR,IGT NO.8
26	33926-78A90-000	RESISTOR,IGT NO.9

OEM	Part name	Category
01550-06123-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0612A-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0612B-000	Bolt - Bolt, clamp	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-06203-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0620B-000	Bolt - Bolt, inspection cap	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-08203-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0820A-000	Bolt - Bolt, funnel bracket	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0820B-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-08253-000	Bolt, rear	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0825A-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0825B-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-08303-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0830A-000	Bolt - Bolt, mount oil seal cover	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-0830B-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-10853-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
01550-1085A-000	Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
02162-06123-000	Bolt (6x12)	engine electrical (4V:T; 2001-08-01~2002-12-01)
02162-0612A-000	SCREW - Bolt, bracket	engine electrical (4V:T; 2001-08-01~2002-12-01)
02162-0612B-000	SCREW - Bolt	engine electrical (4V:T; 2001-08-01~2002-12-01)
08316-10063-000	Nut	engine electrical (4V:T; 2001-08-01~2002-12-01)
08316-1006B-000	NUT	engine electrical (4V:T; 2001-08-01~2002-12-01)
08316-10083-000	Nut	engine electrical (4V:T; 2001-08-01~2002-12-01)
08316-1008B-000	NUT	engine electrical (4V:T; 2001-08-01~2002-12-01)
09118-08107-000	BOLT(8X25)	engine electrical (4V:T; 2001-08-01~2002-12-01)
09159-06076-000	NUT	engine electrical (4V:T; 2001-08-01~2002-12-01)
11551-65H00-000	BRACKET,GENERATOR	engine electrical (4V:T; 2001-08-01~2002-12-01)
11555-60G00-000	Bush, generator	engine electrical (4V:T; 2001-08-01~2002-12-01)
11555-60G01-000	BUSH	engine electrical (4V:T; 2001-08-01~2002-12-01)
11561-65H00-000	ARM,GENERATOR	engine electrical (4V:T; 2001-08-01~2002-12-01)
11851-65H00-000	HOOK,ENGINE	engine electrical (4V:T; 2001-08-01~2002-12-01)
31100-78A00-000	モータアッシ,スターティング	engine electrical (4V:T; 2001-08-01~2002-12-01)
31100-78A10-000	MOTOR ASSY,STARTING	engine electrical (4V:T; 2001-08-01~2002-12-01)
31100-78A20-000	MOTOR ASSY,STARTING	engine electrical (4V:T; 2001-08-01~2002-12-01)
31400-65H02-000	GENERATOR ASSY	engine electrical (4V:T; 2001-08-01~2002-12-01)
31400-65H03-000	GENERATOR ASSY	engine electrical (4V:T; 2001-08-01~2002-12-01)
31400-65H11-000	Generator assy	engine electrical (4V:T; 2001-08-01~2002-12-01)
31400-65H12-000	GENERATOR ASSY	engine electrical (4V:T; 2001-08-01~2002-12-01)
31400-65H13-000	Generator Assy	engine electrical (4V:T; 2001-08-01~2002-12-01)
31614-65H20-000	BRACKET,GENERATOR COVER	engine electrical (4V:T; 2001-08-01~2002-12-01)
33220-76G30-000	SENSOR ASSY,CAM POSITION	engine electrical (4V:T; 2001-08-01~2002-12-01)
33400-76G01-000	コイルアッシ,イグニツシヨン(DENSO)	engine electrical (4V:T; 2001-08-01~2002-12-01)
33400-76G11-000	Coil assy, ignition	engine electrical (4V:T; 2001-08-01~2002-12-01)
33400-85K10-000	COIL ASSY,IGNITION DE	engine electrical (4V:T; 2001-08-01~2002-12-01)
33920-65H01-000	Controller assembly, injection	engine electrical (4V:T; 2001-08-01~2002-12-01)
33920-65H11-000	コントローラアッシ,インジェクション/AT	engine electrical (4V:T; 2001-08-01~2002-12-01)
33924-78A30-000	BRACKET,EPI CONT	engine electrical (4V:T; 2001-08-01~2002-12-01)
33925-67H00-000	COVER,EPI CONT	engine electrical (4V:T; 2001-08-01~2002-12-01)
33925-78A00-000	Cover, cont	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A01-000	RESISTOR,IGT NO.N	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A10-000	RESISTOR,IGT NO.1	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A20-000	RESISTOR,IGT NO.2	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A30-000	RESISTOR,IGT NO.3	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A40-000	RESISTOR,IGT NO.4	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A50-000	RESISTOR,IGT NO.5	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A60-000	RESISTOR,IGT NO.6	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A70-000	RESISTOR,IGT NO.7	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A80-000	RESISTOR,IGT NO.8	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78A90-000	RESISTOR,IGT NO.9	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78AA0-000	RESISTOR,IGT NO.10	engine electrical (4V:T; 2001-08-01~2002-12-01)
33926-78AB0-000	RESISTOR,IGT NO.11	engine electrical (4V:T; 2001-08-01~2002-12-01)
