DA62T

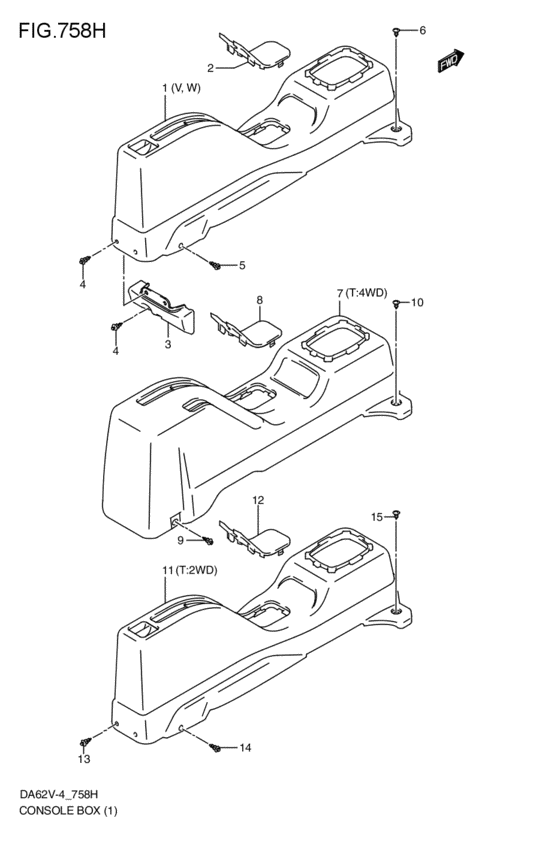

console box (MT; 2001-08-01~2002-12-01) 6
| # | OEM | Part name |
|---|---|---|
| 11 | 75810-78A01-P4Z | BOX,CONSOLE |
| 12 | 75813-78A00-P4Z | CAP,CONSOLE BOX |
| 13 | 09409-06314-P4Z | CLIP(GRAY) |
| 14 | 09409-07308-P4Z | CLIP(GRAY) |
| 15 | 03242-05123-000 | Screw, inner cover |
| 15 | 03241-0512A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03241-0512A-000 | SCREW | console box (MT; 2001-08-01~2002-12-01) |
| 03242-05123-000 | Screw, inner cover | console box (MT; 2001-08-01~2002-12-01) |
| 09409-06314-P4Z | CLIP(GRAY) | console box (MT; 2001-08-01~2002-12-01) |
| 09409-07308-P4Z | CLIP(GRAY) | console box (MT; 2001-08-01~2002-12-01) |
| 75810-78A01-P4Z | BOX,CONSOLE | console box (MT; 2001-08-01~2002-12-01) |
| 75813-78A00-P4Z | CAP,CONSOLE BOX | console box (MT; 2001-08-01~2002-12-01) |
