| 03511-04163-000 |
Screw |

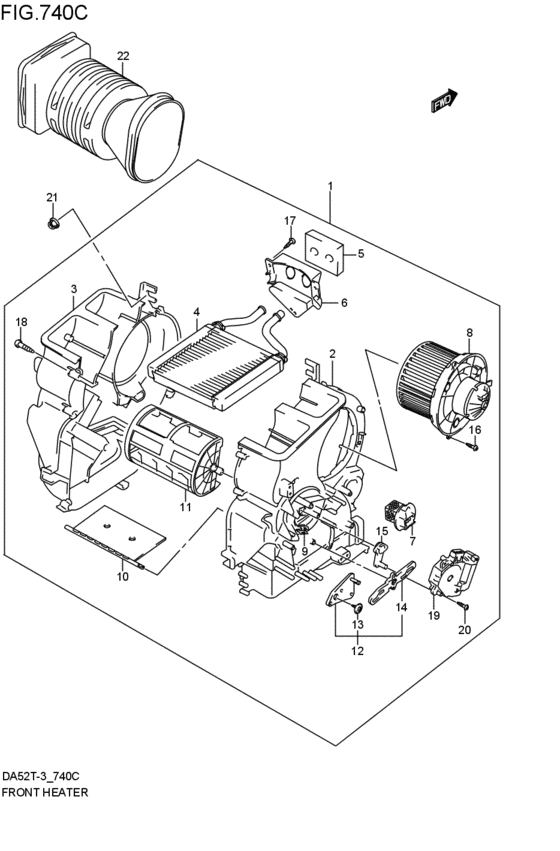

front heater (2000-05-01~2001-10-01) |
| 03511-0416A-000 |
SCREW |
front heater (2000-05-01~2001-10-01) |
| 03541-05123-000 |
Screw |
front heater (2000-05-01~2001-10-01) |
| 03541-0512B-000 |
SCREW |
front heater (2000-05-01~2001-10-01) |
| 09159-06081-000 |
NUT |
front heater (2000-05-01~2001-10-01) |
| 74100-78A00-000 |
Heater unit |
front heater (2000-05-01~2001-10-01) |
| 74100-78A02-000 |
HEATER UNIT |
front heater (2000-05-01~2001-10-01) |
| 74111-78A00-000 |
Case, heater rh |
front heater (2000-05-01~2001-10-01) |
| 74111-78A01-000 |
CASE,HTR,R |
front heater (2000-05-01~2001-10-01) |
| 74112-78A00-000 |
Case, heater lh |
front heater (2000-05-01~2001-10-01) |
| 74112-78A01-000 |
CASE,HTR,L |
front heater (2000-05-01~2001-10-01) |
| 74116-77A00-000 |
PACKING |
front heater (2000-05-01~2001-10-01) |
| 74117-77A00-000 |
CLAMP,PIPE - Bracket, pipe |
front heater (2000-05-01~2001-10-01) |
| 74120-78A00-000 |
CORE,HEATER |
front heater (2000-05-01~2001-10-01) |
| 74135-82000-000 |
SCREW,MOTOR |
front heater (2000-05-01~2001-10-01) |
| 74140-81A00-000 |
RESISTOR,BLOWER |
front heater (2000-05-01~2001-10-01) |
| 74150-75H01-000 |
MOTOR ASSY |
front heater (2000-05-01~2001-10-01) |
| 74150-76G00-000 |
Motor assy, blower |
front heater (2000-05-01~2001-10-01) |
| 74151-50F00-000 |
CABLE |
front heater (2000-05-01~2001-10-01) |
| 74171-77A00-000 |
DOOR ASSY,TEMP |
front heater (2000-05-01~2001-10-01) |
| 74172-77A00-000 |
DOOR ASSY,MODE |
front heater (2000-05-01~2001-10-01) |
| 74180-77A00-000 |
LEVER,TEMP |
front heater (2000-05-01~2001-10-01) |
| 74183-82005-000 |
SCREW,LINK |
front heater (2000-05-01~2001-10-01) |
| 74185-77A00-000 |
LEVER,TEMP |
front heater (2000-05-01~2001-10-01) |
| 74187-77A00-000 |
LEVER,MODE |
front heater (2000-05-01~2001-10-01) |
