Search › Model › DA52T
DA52T

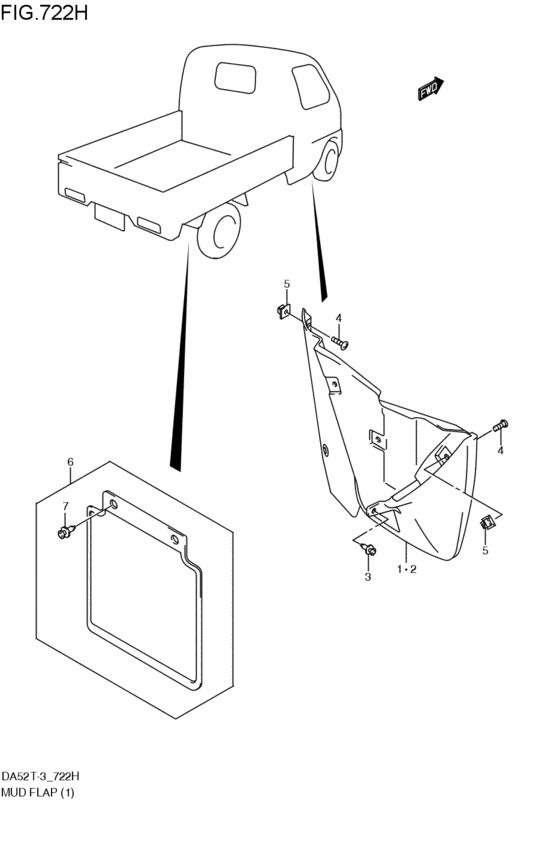

mad flap (T; 2000-05-01~2001-10-01) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 72211-79A00-5PK | FLAP,FR MUD,R |
| 2 | 72221-79A00-5PK | FLAP,FR MUD,L |
| 3 | 09409-06322-5PK | CLIP(BLACK) - Clip (black) |
| 4 | 03542-06163-000 | Screw |
| 4 | 03541-0616A-000 | SCREW |
| 5 | 09148-06006-000 | NUT - Nut, side |
| 6 | 72220-78810-5PK | FLAP SET,RR MUD (1 pc) |
| 7 | 09409-08327-000 | CLIP |
| OEM | Part name | Category |
|---|---|---|
| 03541-0616A-000 | SCREW | mad flap (T; 2000-05-01~2001-10-01) |
| 03542-06163-000 | Screw | mad flap (T; 2000-05-01~2001-10-01) |
| 09148-06006-000 | NUT - Nut, side | mad flap (T; 2000-05-01~2001-10-01) |
| 09409-06322-5PK | CLIP(BLACK) - Clip (black) | mad flap (T; 2000-05-01~2001-10-01) |
| 09409-08327-000 | CLIP | mad flap (T; 2000-05-01~2001-10-01) |
| 72211-79A00-5PK | FLAP,FR MUD,R | mad flap (T; 2000-05-01~2001-10-01) |
| 72220-78810-5PK | FLAP SET,RR MUD (1 pc) | mad flap (T; 2000-05-01~2001-10-01) |
| 72221-79A00-5PK | FLAP,FR MUD,L | mad flap (T; 2000-05-01~2001-10-01) |
