| 01547-06163-000 |
Bolt (green) |

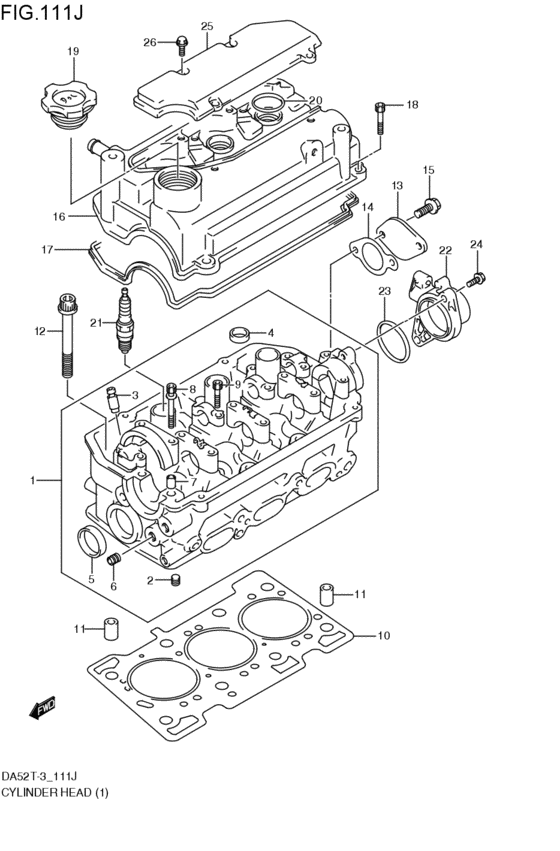

Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01547-0616B-000 |
Bolt |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-06203-000 |
Bolt |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-0620B-000 |
Bolt - Bolt, inspection cap |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-06253-000 |
Bolt (6x25) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-0625A-000 |
Bolt |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-0625B-000 |
Bolt - Bolt, head cover |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-08203-000 |
Bolt |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-0820A-000 |
Bolt - Bolt, funnel bracket |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 01550-0820B-000 |
Bolt |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 04211-13189-000 |
PIN |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 07130-06403-000 |
Bolt - Bolt (6x40) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 07130-0640B-000 |
Bolt - Bolt, camshaft housing |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09103-06185-000 |
BOLT(6X20) - Bolt (6x20) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09103-06232-000 |
BOLT(6X16) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09206-08001-000 |
PIN(8X11) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09241-20006-000 |
PLUG - Plug, crank pin oil |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09241-30009-000 |
Plug - Plug (od:30) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09241-30010-000 |
PLUG |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09246-05006-000 |
PLUG(1/8PT,H:5.5) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09482-00448-000 |
PLUG,SPARK(NGK DCPR7E) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 09482-00449-000 |
PLUG,SPARK(XU22EPR-U) |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11100-77G00-000 |
ヘッドアッシ,シリンダ |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11100-77G01-000 |
HEAD ASSY,CYLINDER |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11112-53A00-000 |
PLUG,OIL VENTURI |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11115-77G00-001 |
GUIDE,VALVE |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11116-79A00-000 |
Plate,cylinder head |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11116-79A0V-000 |
PLATE,CYLINDER HEAD |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11117-52E10-000 |
BOLT,CYLINDER HEAD |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11141-51E01-000 |
ガスケット,シリンダヘッド |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11141-81401-000 |
GASKET,CYL HEAD |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11162-81401-000 |
O-RING,CASE |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11170-79A01-000 |
Cover,cylinder head |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11179-81402-000 |
O-RING |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11180-77G00-000 |
COVER,CYL HEAD UPPER |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 11189-81402-000 |
GASKET,CYL HEAD COVER |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 16920-83G00-000 |
Cap,oil filler |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 16920-83G01-000 |
CAP OIL FILLER |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 16920-86502-000 |
Cap, oil filler |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 17699-53F01-000 |
GASKET |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 33200-76801-000 |
Case, cam position sensor |
Cylinder head (4V; 2000-05-01~2001-10-01) |
| 33221-76G00-000 |
Case, cam position sensor |
Cylinder head (4V; 2000-05-01~2001-10-01) |
