| 01550-0610A-000 |
Bolt |

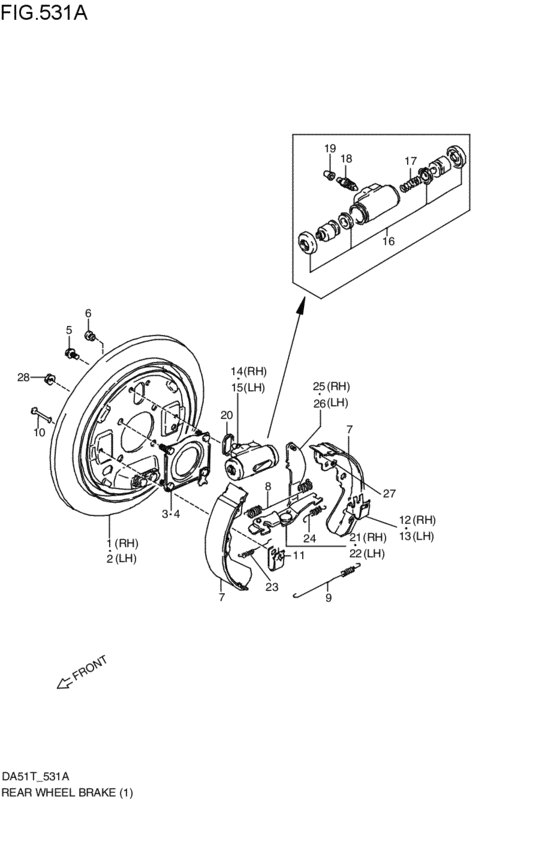

rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 01550-0610B-000 |
Bolt |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 08332-11043-000 |
E ring |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 08332-1104A-000 |
E RING |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 08332-1104B-000 |
E RING |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 09159-08075-000 |
NUT |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53110-85060-000 |
プレート,バッキング,ライト |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53110-85120-000 |
PLATE,BACKING,R |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53131-82030-000 |
Bolt, wheel cylinder |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53141-82030-000 |
Plug, backint plate |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53141-84010-000 |
PLUG,BACKING PLATE |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53160-85060-000 |
プレート,バッキング,レフト |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53160-85120-000 |
PLATE,BACKING,L |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53200-51800-000 |
SHOE SET,BRAKE RR NON ASBESTOS |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53210-85120-000 |
シュー,ブレーキ |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53231-85010-000 |
スプリング,シューリターン,アッパ |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53231-8501V-000 |
SPRING,SHOE RETURN UPPER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53232-85120-000 |
SPRING,SHOE RETURN LOWER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53241-82030-000 |
PIN,SHOE HOLD DOWN - Pin, shoe hold down |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53243-85010-000 |
SPRING,SHOE HOLD DOWN - Spring, shoe hold down |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53244-82031-000 |
SPRING,SHOE HOLD DOWN,R - Spring, shoe hold down lh |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53245-82031-000 |
SPRING,SHOE HOLD DOWN,L - Spring, shoe hold down rh |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53400-85851-000 |
CUP SET,RR WHEEL CYLINDER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53401-85121-000 |
CYLINDER ASSY,REAR WHEEL,R |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53402-85121-000 |
CYLINDER ASSY,REAR WHEEL,L |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53402-85122-000 |
CYLINDER ASSY,RR WHEEL |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53417-82030-000 |
GASKET,RR WHEEL CYLINDER - Gasket, rear wheel cylinder |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53432-85010-000 |
SPRING,WHEEL CYLINDER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53473-82030-000 |
PLUG BLEDER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53474-82030-000 |
Cap, bleeder plug |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53710-85010-000 |
STRUT ASSY,BRAKE,R |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53714-85010-000 |
SPRING,QUADRANT |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53715-82030-000 |
スプリング,アンチラトル |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53715-8203V-000 |
SPRING,ANTIRATTLE |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53720-85010-000 |
STRUT ASSY,BRAKE,L |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53750-85010-000 |
レバー,パーキングシュー,ライト |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53750-8501V-000 |
LEVER,PARKING SHOE,R |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53753-85010-000 |
Retainer, parking lever |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53760-85010-000 |
レバー,パーキングシュー,レフト |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53760-8501V-000 |
LEVER,PARKING SHOE,L |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53820-85010-000 |
Retainer,rr whl brg outer,r |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53820-8501V-000 |
RETAINER,RR WHL BRG OUTER,R |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53830-85010-000 |
Retainer,rr whl brg outer,l |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 53830-8501V-000 |
RETAINER,RR WHL BRG OUTER,L |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 55151-78451-000 |
PLUG,BLEEDER |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 55156-66310-000 |
CAP,BLEEDER PLUG - Cap, bleeder plug |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
| 59122-18410-000 |
Cap, bleeder plug |
rear wheel brakes (C,V:2WD:(GA,PA,GB); 1990-01-01~1991-08-01) |
