Search › Model › DA51T

DA51T

Suzuki CARRY-EVERY · 1990 · 2,130 parts · 91 categories

2,130 items

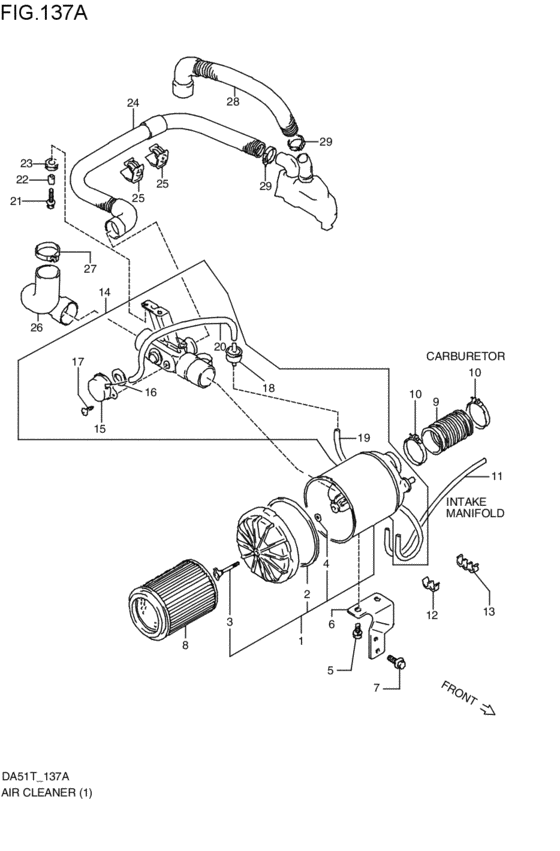

air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01) 50

#	OEM	Part name
1	13701-74D00-000	ケースアッシ,エアクリーナ
1	11191-65C00-000	Hose,breather
1	13701-74D20-000	CASE ASSY,AIR CLEANER
2	13772-85000-000	GASKET,CASE
3	13745-79120-000	BOLT,WING
3	01580-0650A-000	Bolt
4	09280-09003-000	O ring, clutch lever shaft
4	09280-09005-000	O RING(D:1.9,ID:8.6)
5	01137-08123-000	Bolt - Bolt, brace rear
5	01570-0812A-000	Bolt
6	11643-70D01-000	Bracket,air cleaner
7	01137-08203-000	Bolt, brace front
7	01570-0820B-000	Bolt
7	01570-0820A-000	Bolt
8	13780-79001-000	ELEMENT,AIR CLEANER
9	13881-85000-000	HOSE,AIR CLEANER TO CARBURETOR
10	09402-62309-000	CLAMP
11	09358-35754-600	ホース,3.5X7.5X600
11	09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)
11	09355-35006-601	Hose(3.5X7.5X601)
12	09408-00033-000	CLAMP
13	09408-00034-000	クリップ
13	09408-00035-000	CLIP - Clamp
14	13740-70D00-000	ケースアッシ,エアバルブ
14	13740-53F00-000	ケースアッシ,エアバルブ
14	07130-0510B-000	Bolt - Bolt, sensor
14	09250-04003-000	PLUG(OD:8) - Plug (od:8)
15	13748-85510-000	ACTUATOR,AIR VALVE
16	13746-85000-000	Gasket,actuator
17	03142-05109-000	Screw 5x10
17	03142-0510B-000	SCREW
18	18114-85000-000	バルブ,バキュームトランスミツテイング
18	18114-82150-000	VALVE,VACUUM TRANSMITTING - Valve, vacuum transmitting
19	09358-35754-300	ホース,3.5X7.5X300
21	09116-06056-000	Bolt (6*10) - Bolt (6x20)
21	09116-06115-000	BOLT(6X20) - Bolt (6x20)
22	09180-06138-000	SPACER(6.3X9.1X11.5) - Spacer (6.5x10x10)
23	09320-08054-000	Cushion, rear
24	13840-60C00-000	ホース,ウォームエア
24	13840-60C01-000	HOSE,WARM AIR
24	13840-60C10-000	ホース,ウォームエア
25	09403-32301-000	HOLDER
26	13871-70D00-000	ジョイント,インレットツーエアバルブ
26	13871-63C00-000	JOINT,INLET TO AIR VALVE
27	09402-46308-000	Сlamp
27	09402-46309-XC0	CLAMP
28	13850-85010-000	ホース,ウォームエア,インレット
28	13840-53F80-000	HOSE,WARM AIR
29	09402-34308-000	Сlamp
29	09402-34303-000	CLAMP

OEM	Part name	Category
01137-08123-000	Bolt - Bolt, brace rear	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
01137-08203-000	Bolt, brace front	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
01570-0812A-000	Bolt	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
01570-0820A-000	Bolt	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
01570-0820B-000	Bolt	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
01580-0650A-000	Bolt	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
03142-05109-000	Screw 5x10	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
03142-0510B-000	SCREW	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
07130-0510B-000	Bolt - Bolt, sensor	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09116-06056-000	Bolt (6*10) - Bolt (6x20)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09116-06115-000	BOLT(6X20) - Bolt (6x20)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09180-06138-000	SPACER(6.3X9.1X11.5) - Spacer (6.5x10x10)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09250-04003-000	PLUG(OD:8) - Plug (od:8)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09280-09003-000	O ring, clutch lever shaft	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09280-09005-000	O RING(D:1.9,ID:8.6)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09320-08054-000	Cushion, rear	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09355-35006-601	Hose(3.5X7.5X601)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09355-35754-601	HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve)	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09358-35754-300	ホース,3.5X7.5X300	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09358-35754-600	ホース,3.5X7.5X600	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09402-34303-000	CLAMP	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09402-34308-000	Сlamp	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09402-46308-000	Сlamp	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09402-46309-XC0	CLAMP	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09402-62309-000	CLAMP	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09403-32301-000	HOLDER	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09408-00033-000	CLAMP	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09408-00034-000	クリップ	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
09408-00035-000	CLIP - Clamp	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
11191-65C00-000	Hose,breather	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
11643-70D01-000	Bracket,air cleaner	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13701-74D00-000	ケースアッシ,エアクリーナ	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13701-74D20-000	CASE ASSY,AIR CLEANER	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13740-53F00-000	ケースアッシ,エアバルブ	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13740-70D00-000	ケースアッシ,エアバルブ	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13745-79120-000	BOLT,WING	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13746-85000-000	Gasket,actuator	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13748-85510-000	ACTUATOR,AIR VALVE	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13772-85000-000	GASKET,CASE	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13780-79001-000	ELEMENT,AIR CLEANER	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13840-53F80-000	HOSE,WARM AIR	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13840-60C00-000	ホース,ウォームエア	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13840-60C01-000	HOSE,WARM AIR	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13840-60C10-000	ホース,ウォームエア	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13850-85010-000	ホース,ウォームエア,インレット	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13871-63C00-000	JOINT,INLET TO AIR VALVE	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13871-70D00-000	ジョイント,インレットツーエアバルブ	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
13881-85000-000	HOSE,AIR CLEANER TO CARBURETOR	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
18114-82150-000	VALVE,VACUUM TRANSMITTING - Valve, vacuum transmitting	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
18114-85000-000	バルブ,バキュームトランスミツテイング	air cleaner (C:2WD:(TU,TA,TC,KA,KC); 1990-01-01~1991-08-01)
