DA41V

Suzuki CARRY-EVERY · 1989 · 2,767 parts · 105 categories

2,767 items

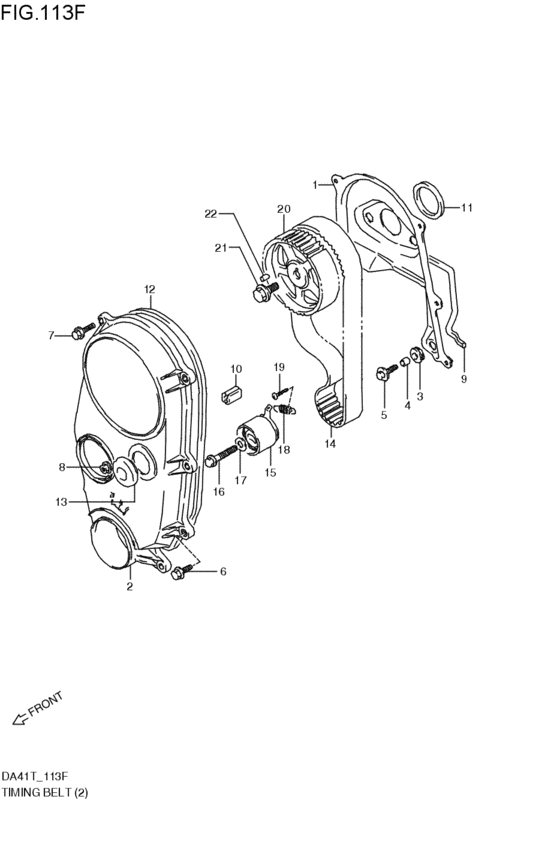

timing belt (2V; 1989-05-01~1990-01-01) 44

#	OEM	Part name
1	11380-60C00-000	カバー,タイミングベルト,インサイド
1	11360-60C00-000	COVER,TIMING BELT INSIDE
2	11390-60C01-000	カバー,タイミングベルト,アウトサイド
2	11390-60C03-000	カバー,タイミングベルト,アウトサイド
2	72999-67H00-000	CAP,OD:40
2	09250-30002-000	キャップ,OD:30
3	09308-10004-000	GROMMET
4	09180-06106-000	SPACER(6.8X10X7)
5	09116-06113-000	ボルト,6X16
5	09116-06167-000	BOLT(6X20) - Bolt (6x20)
6	01517-06163-000	Bolt
6	01550-0616B-000	Bolt
6	01550-0616A-000	Bolt
7	01517-06203-000	Bolt
7	01550-0620B-000	Bolt - Bolt, inspection cap
7	01550-0620A-000	Bolt
8	08316-16063-000	Nut
8	08316-1006B-000	NUT
9	11383-60C00-000	シール,タイミングベルトインサイド,NO.1
10	11394-70B00-000	SEAL
11	11483-73001-000	シール,タイミングベルト,NO.3
11	11480-78110-000	SEAL SET,TIMING COVER INSIDE
11	11300-53831-000	SEAL SET,TIMING BELT COVER
12	11396-72B00-000	シール,タイミングベルトカバー,アウトサイド
12	11396-71C00-000	SEAL,TIMING BELT COVER OUT
14	12761-60C11-000	ベルト,タイミング
14	11407-60C30-000	BELT SET,TIMING
15	12810-81401-000	テンショナアッシ,タイミングベルト
15	12810-81402-000	TENSIONER ASSY,TIMING BELT
16	01517-08406-000	Bolt
16	01550-0840B-000	Bolt
16	01550-0840A-000	Bolt
17	08322-11083-000	Washer
17	08322-0108B-000	WASHER
17	08322-0108A-000	WASHER
18	12821-61C00-000	スプリング,テンショナ
18	12821-70B02-000	SPRING,TENSIONER
19	02112-06206-000	Screw
19	02112-0620B-000	SCREW
19	02112-0620A-000	SCREW - Screw, holder
20	12741-60C00-000	プーリ,カムシャフトタイミング
21	01537-12256-000	ボルト
21	01550-1225A-000	Bolt
22	04221-05109-000	PIN

OEM	Part name	Category
01517-06163-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01517-06203-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01517-08406-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01537-12256-000	ボルト	timing belt (2V; 1989-05-01~1990-01-01)
01550-0616A-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01550-0616B-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01550-0620A-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01550-0620B-000	Bolt - Bolt, inspection cap	timing belt (2V; 1989-05-01~1990-01-01)
01550-0840A-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01550-0840B-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
01550-1225A-000	Bolt	timing belt (2V; 1989-05-01~1990-01-01)
02112-06206-000	Screw	timing belt (2V; 1989-05-01~1990-01-01)
02112-0620A-000	SCREW - Screw, holder	timing belt (2V; 1989-05-01~1990-01-01)
02112-0620B-000	SCREW	timing belt (2V; 1989-05-01~1990-01-01)
04221-05109-000	PIN	timing belt (2V; 1989-05-01~1990-01-01)
08316-1006B-000	NUT	timing belt (2V; 1989-05-01~1990-01-01)
08316-16063-000	Nut	timing belt (2V; 1989-05-01~1990-01-01)
08322-0108A-000	WASHER	timing belt (2V; 1989-05-01~1990-01-01)
08322-0108B-000	WASHER	timing belt (2V; 1989-05-01~1990-01-01)
08322-11083-000	Washer	timing belt (2V; 1989-05-01~1990-01-01)
09116-06113-000	ボルト,6X16	timing belt (2V; 1989-05-01~1990-01-01)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	timing belt (2V; 1989-05-01~1990-01-01)
09180-06106-000	SPACER(6.8X10X7)	timing belt (2V; 1989-05-01~1990-01-01)
09250-30002-000	キャップ,OD:30	timing belt (2V; 1989-05-01~1990-01-01)
09308-10004-000	GROMMET	timing belt (2V; 1989-05-01~1990-01-01)
11300-53831-000	SEAL SET,TIMING BELT COVER	timing belt (2V; 1989-05-01~1990-01-01)
11360-60C00-000	COVER,TIMING BELT INSIDE	timing belt (2V; 1989-05-01~1990-01-01)
11380-60C00-000	カバー,タイミングベルト,インサイド	timing belt (2V; 1989-05-01~1990-01-01)
11383-60C00-000	シール,タイミングベルトインサイド,NO.1	timing belt (2V; 1989-05-01~1990-01-01)
11390-60C01-000	カバー,タイミングベルト,アウトサイド	timing belt (2V; 1989-05-01~1990-01-01)
11390-60C03-000	カバー,タイミングベルト,アウトサイド	timing belt (2V; 1989-05-01~1990-01-01)
11394-70B00-000	SEAL	timing belt (2V; 1989-05-01~1990-01-01)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	timing belt (2V; 1989-05-01~1990-01-01)
11396-72B00-000	シール,タイミングベルトカバー,アウトサイド	timing belt (2V; 1989-05-01~1990-01-01)
11407-60C30-000	BELT SET,TIMING	timing belt (2V; 1989-05-01~1990-01-01)
11480-78110-000	SEAL SET,TIMING COVER INSIDE	timing belt (2V; 1989-05-01~1990-01-01)
11483-73001-000	シール,タイミングベルト,NO.3	timing belt (2V; 1989-05-01~1990-01-01)
12741-60C00-000	プーリ,カムシャフトタイミング	timing belt (2V; 1989-05-01~1990-01-01)
12761-60C11-000	ベルト,タイミング	timing belt (2V; 1989-05-01~1990-01-01)
12810-81401-000	テンショナアッシ,タイミングベルト	timing belt (2V; 1989-05-01~1990-01-01)
12810-81402-000	TENSIONER ASSY,TIMING BELT	timing belt (2V; 1989-05-01~1990-01-01)
12821-61C00-000	スプリング,テンショナ	timing belt (2V; 1989-05-01~1990-01-01)
12821-70B02-000	SPRING,TENSIONER	timing belt (2V; 1989-05-01~1990-01-01)
72999-67H00-000	CAP,OD:40	timing belt (2V; 1989-05-01~1990-01-01)
