DA4

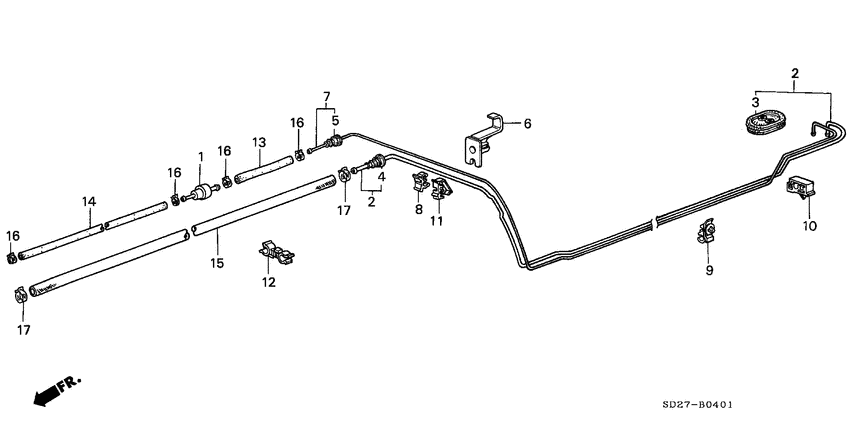

Fuel pipe (CARBURETOR) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 16704-PE0-662 | Valve - ONE WAY |
| 2 | 17700-SE7-733 | Pipe comp - FUEL FEED |
| 2 | 17700-SE7-732 | Pipe comp - FUEL FEED |
| 2 | 17700-SE7-731 | Pipe comp - FUEL FEED |
| 3 | 17710-SB3-600 | Grommet - FUEL PIPE |
| 4 | 17711-SA7-930 | Grommet - FUEL PIPE |
| 5 | 17712-SA0-000 | Grommet - FUEL PIPE |
| 7 | 17740-SE7-732 | Pipe comp - FUEL RETURN |
| 7 | 17740-SE7-731 | Pipe comp - FUEL RETURN |
| 7 | 17740-SE7-733 | Pipe comp - FUEL RETURN |
| 8 | 46392-SB2-014 | Clip b - BRAKE PIPE |
| 9 | 91591-SD2-003 | Clamp - FUEL PIPE |
| 10 | 91595-SH3-003 | Clamp - FUEL PIPE |
| 11 | 91591-SH3-003 | Clip - FUEL PIPE (BLACK) |
| 12 | 91591-SE7-E01 | Clip - FUEL VENT TUBE |
| OEM | Part name | Category |
|---|---|---|
| 16704-PE0-662 | Valve - ONE WAY | Fuel pipe (CARBURETOR) |
| 17700-SE7-731 | Pipe comp - FUEL FEED | Fuel pipe (CARBURETOR) |
| 17700-SE7-732 | Pipe comp - FUEL FEED | Fuel pipe (CARBURETOR) |
| 17700-SE7-733 | Pipe comp - FUEL FEED | Fuel pipe (CARBURETOR) |
| 17710-SB3-600 | Grommet - FUEL PIPE | Fuel pipe (CARBURETOR) |
| 17711-SA7-930 | Grommet - FUEL PIPE | Fuel pipe (CARBURETOR) |
| 17712-SA0-000 | Grommet - FUEL PIPE | Fuel pipe (CARBURETOR) |
| 17740-SE7-731 | Pipe comp - FUEL RETURN | Fuel pipe (CARBURETOR) |
| 17740-SE7-732 | Pipe comp - FUEL RETURN | Fuel pipe (CARBURETOR) |
| 17740-SE7-733 | Pipe comp - FUEL RETURN | Fuel pipe (CARBURETOR) |
| 46392-SB2-014 | Clip b - BRAKE PIPE | Fuel pipe (CARBURETOR) |
| 91591-SD2-003 | Clamp - FUEL PIPE | Fuel pipe (CARBURETOR) |
| 91591-SE7-E01 | Clip - FUEL VENT TUBE | Fuel pipe (CARBURETOR) |
| 91591-SH3-003 | Clip - FUEL PIPE (BLACK) | Fuel pipe (CARBURETOR) |
| 91595-SH3-003 | Clamp - FUEL PIPE | Fuel pipe (CARBURETOR) |
