Search › Model › DA4
DA4

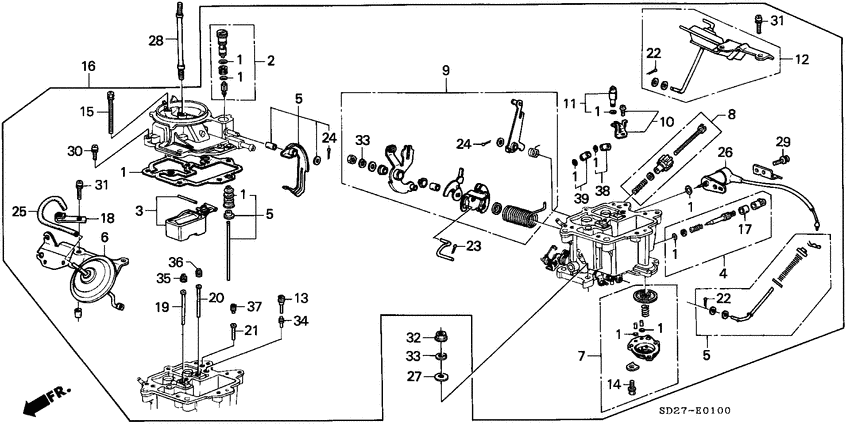

Carburetor 32
| # | OEM | Part name |
|---|---|---|
| 1 | 16010-PC3-602 | Gasket set |
| 2 | 16011-PC3-601 | Valve set - FLOAT |
| 3 | 16013-PA1-641 | Float set |
| 4 | 16016-PE4-751 | Screw set a |
| 5 | 16019-PC3-781 | Rod set - PUMP |
| 6 | 16020-PE4-851 | Diaphragm assy. |
| 7 | 16021-PE8-601 | Diaphragm set - PUMP |
| 8 | 16028-PC3-601 | Screw set b |
| 9 | 16032-PE4-771 | Rod set - THROTTLE |
| 10 | 16037-PD3-601 | Plate set |
| 11 | 16041-PE4-772 | Economizer set |
| 12 | 16043-PE4-811 | Opener set - THROTTLE |
| 13 | 16071-PC3-601 | Plug |
| 14 | 16080-PE4-731 | Screw-washer |
| 15 | 16081-PC3-601 | Bolt |
| 16 | 16100-PE4-817 | Carburetor assy - DE26A F |
| 17 | 16109-PB9-005 | Collar - SETTING |
| 18 | 16134-PC3-601 | Clamp |
| 19 | 16164-PD3-821 | Tube - EMULSION SECONDARY |
| 20 | 16166-PE3-851 | Tube - EMULSION PRIMARY |
| 21 | 16168-634-671 | Tube - PRIMARY SLOW EMULSION |
| 22 | 16181-PC3-781 | Pin - SPLIT, 1.2 |
| 23 | 16182-PC3-781 | Pin - SPLIT, 1.0 |
| 24 | 16183-PC3-781 | Pin - SPLIT, 1.2 |
| 25 | 16199-PC3-601 | Tube |
| 26 | 16230-PE4-732 | Valve - FUEL MAGNETIC |
| 27 | 22415-551-000 | Washer - 6.5MM |
| 28 | 90085-PE3-300 | Bolt - STUD, 6X70 |
| 34 | 99103-PC3-0500 | Jet - SLOW, #50 |
| 35 | 99105-663-0700 | Jet - AIR, #70 |
| 36 | 99105-663-0900 | Jet - AIR, #90 |
| 37 | 99107-663-1550 | Jet - SLOW AIR, #155 |
| OEM | Part name | Category |
|---|---|---|
| 16010-PC3-602 | Gasket set | Carburetor |
| 16011-PC3-601 | Valve set - FLOAT | Carburetor |
| 16013-PA1-641 | Float set | Carburetor |
| 16016-PE4-751 | Screw set a | Carburetor |
| 16019-PC3-781 | Rod set - PUMP | Carburetor |
| 16020-PE4-851 | Diaphragm assy. | Carburetor |
| 16021-PE8-601 | Diaphragm set - PUMP | Carburetor |
| 16028-PC3-601 | Screw set b | Carburetor |
| 16032-PE4-771 | Rod set - THROTTLE | Carburetor |
| 16037-PD3-601 | Plate set | Carburetor |
| 16041-PE4-772 | Economizer set | Carburetor |
| 16043-PE4-811 | Opener set - THROTTLE | Carburetor |
| 16071-PC3-601 | Plug | Carburetor |
| 16080-PE4-731 | Screw-washer | Carburetor |
| 16081-PC3-601 | Bolt | Carburetor |
| 16100-PE4-817 | Carburetor assy - DE26A F | Carburetor |
| 16109-PB9-005 | Collar - SETTING | Carburetor |
| 16134-PC3-601 | Clamp | Carburetor |
| 16164-PD3-821 | Tube - EMULSION SECONDARY | Carburetor |
| 16166-PE3-851 | Tube - EMULSION PRIMARY | Carburetor |
| 16168-634-671 | Tube - PRIMARY SLOW EMULSION | Carburetor |
| 16181-PC3-781 | Pin - SPLIT, 1.2 | Carburetor |
| 16182-PC3-781 | Pin - SPLIT, 1.0 | Carburetor |
| 16183-PC3-781 | Pin - SPLIT, 1.2 | Carburetor |
| 16199-PC3-601 | Tube | Carburetor |
| 16230-PE4-732 | Valve - FUEL MAGNETIC | Carburetor |
| 22415-551-000 | Washer - 6.5MM | Carburetor |
| 90085-PE3-300 | Bolt - STUD, 6X70 | Carburetor |
| 99103-PC3-0500 | Jet - SLOW, #50 | Carburetor |
| 99105-663-0700 | Jet - AIR, #70 | Carburetor |
| 99105-663-0900 | Jet - AIR, #90 | Carburetor |
| 99107-663-1550 | Jet - SLOW AIR, #155 | Carburetor |
