Search › Model › DA32W
DA32W

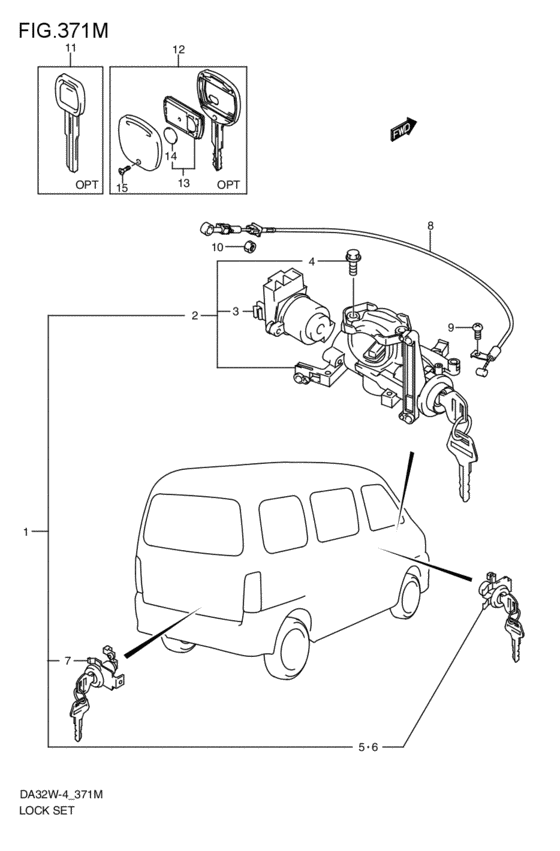

lock set (2001-05-01~) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 37103-79880-000 | ロックセット |
| 1 | 03211-0516A-000 | SCREW |
| 1 | 37103-79881-000 | ロックセット |
| 1 | 03211-05163-000 | Screw - Tapping screw |
| 2 | 37102-79860-000 | ロックアッシ,ステアリング |
| 2 | 37102-79861-000 | LOCK ASSY,STEERING |
| 3 | 37111-65H00-000 | SWITCH ASSY |
| 3 | 37111-78A10-000 | SWITCH ASSY |
| 4 | 37152-84G00-000 | BOLT, STRG LOCK |
| 5 | 82201-50813-000 | CYLINDER,FR DR LOCK,R |
| 6 | 82201-50823-000 | CYLINDER,FR DR LOCK,L |
| 7 | 82500-50871-000 | CYLINDER,BACK DR LOCK |
| 8 | 28551-65H10-000 | ケーブル,キーインタロック |
| 8 | 28551-65H13-000 | CABLE,KEY INTER LOCK |
| 9 | 09125-05061-000 | SCREW(5X8) |
| 10 | 08316-10083-000 | Nut |
| 10 | 08316-1008B-000 | NUT |
| 11 | 37145-50E00-000 | KEY,BLANK |
| 12 | 37145-84F00-000 | KEY,BLANK TRANSMITTER,KEY LESS |
| 13 | 37182-58J00-000 | スイッチ,トランスミッタ,キーレス |
| 13 | 37182-58J01-000 | SWITCH,TRANSMITTER KEYLESS |
| 14 | 37185-76G50-000 | バッテリ,リチユーム,CR1220 |
| 15 | 37186-76G50-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 03211-05163-000 | Screw - Tapping screw | lock set (2001-05-01~) |
| 03211-0516A-000 | SCREW | lock set (2001-05-01~) |
| 08316-10083-000 | Nut | lock set (2001-05-01~) |
| 08316-1008B-000 | NUT | lock set (2001-05-01~) |
| 09125-05061-000 | SCREW(5X8) | lock set (2001-05-01~) |
| 28551-65H10-000 | ケーブル,キーインタロック | lock set (2001-05-01~) |
| 28551-65H13-000 | CABLE,KEY INTER LOCK | lock set (2001-05-01~) |
| 37102-79860-000 | ロックアッシ,ステアリング | lock set (2001-05-01~) |
| 37102-79861-000 | LOCK ASSY,STEERING | lock set (2001-05-01~) |
| 37103-79880-000 | ロックセット | lock set (2001-05-01~) |
| 37103-79881-000 | ロックセット | lock set (2001-05-01~) |
| 37111-65H00-000 | SWITCH ASSY | lock set (2001-05-01~) |
| 37111-78A10-000 | SWITCH ASSY | lock set (2001-05-01~) |
| 37145-50E00-000 | KEY,BLANK | lock set (2001-05-01~) |
| 37145-84F00-000 | KEY,BLANK TRANSMITTER,KEY LESS | lock set (2001-05-01~) |
| 37152-84G00-000 | BOLT, STRG LOCK | lock set (2001-05-01~) |
| 37182-58J00-000 | スイッチ,トランスミッタ,キーレス | lock set (2001-05-01~) |
| 37182-58J01-000 | SWITCH,TRANSMITTER KEYLESS | lock set (2001-05-01~) |
| 37185-76G50-000 | バッテリ,リチユーム,CR1220 | lock set (2001-05-01~) |
| 37186-76G50-000 | SCREW | lock set (2001-05-01~) |
| 82201-50813-000 | CYLINDER,FR DR LOCK,R | lock set (2001-05-01~) |
| 82201-50823-000 | CYLINDER,FR DR LOCK,L | lock set (2001-05-01~) |
| 82500-50871-000 | CYLINDER,BACK DR LOCK | lock set (2001-05-01~) |
