DA116

Toyota HEAVY-DUTY-TRUCK · 1969 · 5,383 parts · 214 categories

5,383 items

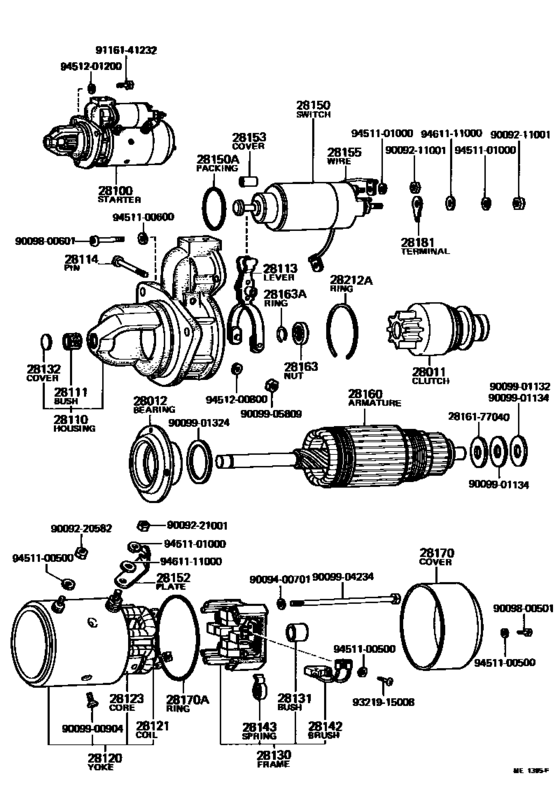

Starter ([01.1971 - 04.1977] (7101-7704)2D) 69

#	OEM	Part name
28011	28011-54010	Clutch Sub-Assy, Starter
28011	28011-66011	Clutch Sub-Assy, Starter
28011	28011-77090	Clutch Sub-Assy, Starter
28012	28012-47013	Bearing Sub-Assy, Center
28100	28100-77040	Starter Assy
28100	28100-77041	Starter Assy
28100	28100-77060	Starter Assy
28100	28100-77090	Starter Assy
28100	28100-77110	Starter Assy
28110	28110-77044	Housing Assy, Starter Drive
28110	28110-77045	Housing Assy, Starter Drive
28110	28110-77062	Housing Assy, Starter Drive
28110	28115-77090	Housing Assy, Starter Drive
28111	28111-47010	Bush(For Starter Housing)
28113	28113-66011	Lever, Starter Pinion Drive
28114	28114-76010	Pin, Starter Drive Lever Set
28114	28114-77040	Pin, Starter Drive Lever Set
28120	28120-56071	Yoke Assy, Starter
28120	28120-66010	Yoke Assy, Starter
28120	28120-77090	Yoke Assy, Starter
28121	28121-66010	Coil, Starter Field
28123	28123-76010	Core, Starter Pole
28130	28130-77041	Frame Assy, Starter Commutator End
28130	28130-77090	Frame Assy, Starter Commutator End
28130	28130-77110	Frame Assy, Starter Commutator End
28130	28199-46080	Cover, Starter End Frame
28130	90099-04207	New Genuine Part
28132	28132-47011	Cover, Starter Bearing(For Drive Housing)
28142	28142-77040	Brush, Starter
28143	28143-77040	Spring, Starter Brush
28150	28150-66011	Switch Assy, Magnet Starter
28150	28150-77060	Switch Assy, Magnet Starter
28150	28150-77090	Switch Assy, Magnet Starter
28150	90092-06026	Packing(For Starter Magnet Switch)
28150	90099-06026	Packing(For Starter Magnet Switch)
28152	28151-66010	Plate, Switch Connecting
28153	28152-47011	Cover, Magnet Switch
28155	28155-66010	Wire, Lead, Switch Connecting
28155	28155-66011	Wire, Lead, Switch Connecting
28160	28160-77042	Armature Assy, Starter
28160	28160-77090	Armature Assy, Starter
28163	28163-47011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07096	Ring, Snap(For Starter Pinion Stop Nut)
28170	28170-77040	Cover Assy, Starter
28170	90099-06022	Ring, O(For Starter Cover)
28181	28181-47010	Terminal, Starter
28212	90099-07031	Ring, Snap, Starter Clutch Housing Disc
2816177040	28161-77040	New Genuine Part
9009211001	90092-11001	New Genuine Part
9009220582	90092-20582	New Genuine Part
9009221001	90092-21001	NUT
9009400701	90094-00701	New Genuine Part
9009800501	90098-00501	New Genuine Part
9009800501	93319-15008	SCREW
9009800601	90098-00601	New Genuine Part
9009900904	90099-00904	New Genuine Part
9009901132	90099-01132	New Genuine Part
9009901134	90099-01134	New Genuine Part
9009901324	90099-01324	New Genuine Part
9009904234	90099-04234	New Genuine Part
9009905809	90099-05809	New Genuine Part
9116141232	91161-41232	New Genuine Part
9321915008	93219-15008	New Genuine Part
9451100500	94511-00500	Washer, Cover Set, No.2
9451100600	94511-00600	Washer, Lock, No.2
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201200	94512-01200	Washer
9461111000	94611-11000	New Genuine Part

OEM	Part name	Category
28011-54010	Clutch Sub-Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28011-66011	Clutch Sub-Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28011-77090	Clutch Sub-Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28012-47013	Bearing Sub-Assy, Center	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28100-77040	Starter Assy	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28100-77041	Starter Assy	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28100-77060	Starter Assy	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28100-77090	Starter Assy	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28100-77110	Starter Assy	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28110-77044	Housing Assy, Starter Drive	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28110-77045	Housing Assy, Starter Drive	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28110-77062	Housing Assy, Starter Drive	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28111-47010	Bush(For Starter Housing)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28113-66011	Lever, Starter Pinion Drive	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28114-76010	Pin, Starter Drive Lever Set	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28114-77040	Pin, Starter Drive Lever Set	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28115-77090	Housing Assy, Starter Drive	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28120-56071	Yoke Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28120-66010	Yoke Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28120-77090	Yoke Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28121-66010	Coil, Starter Field	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28123-76010	Core, Starter Pole	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28130-77041	Frame Assy, Starter Commutator End	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28130-77090	Frame Assy, Starter Commutator End	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28130-77110	Frame Assy, Starter Commutator End	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28132-47011	Cover, Starter Bearing(For Drive Housing)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28142-77040	Brush, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28143-77040	Spring, Starter Brush	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28150-66011	Switch Assy, Magnet Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28150-77060	Switch Assy, Magnet Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28150-77090	Switch Assy, Magnet Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28151-66010	Plate, Switch Connecting	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28152-47011	Cover, Magnet Switch	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28155-66010	Wire, Lead, Switch Connecting	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28155-66011	Wire, Lead, Switch Connecting	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28160-77042	Armature Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28160-77090	Armature Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28161-77040	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28163-47011	Nut Or Collar, Pinion Stop, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28170-77040	Cover Assy, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28181-47010	Terminal, Starter	Starter ([01.1971 - 04.1977] (7101-7704)2D)
28199-46080	Cover, Starter End Frame	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90092-06026	Packing(For Starter Magnet Switch)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90092-11001	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90092-20582	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90092-21001	NUT	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90094-00701	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90098-00501	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90098-00601	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-00904	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-01132	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-01134	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-01324	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-04207	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-04234	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-05809	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-06022	Ring, O(For Starter Cover)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-06026	Packing(For Starter Magnet Switch)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-07031	Ring, Snap, Starter Clutch Housing Disc	Starter ([01.1971 - 04.1977] (7101-7704)2D)
90099-07096	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
91161-41232	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
93219-15008	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
93319-15008	SCREW	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94511-00500	Washer, Cover Set, No.2	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94511-00600	Washer, Lock, No.2	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94511-01000	Washer(For Rear Drive Shaft)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94512-01200	Washer	Starter ([01.1971 - 04.1977] (7101-7704)2D)
94611-11000	New Genuine Part	Starter ([01.1971 - 04.1977] (7101-7704)2D)
