Search › Model › DA116

DA116

Toyota HEAVY-DUTY-TRUCK · 1969 · 5,383 parts · 214 categories

5,383 items

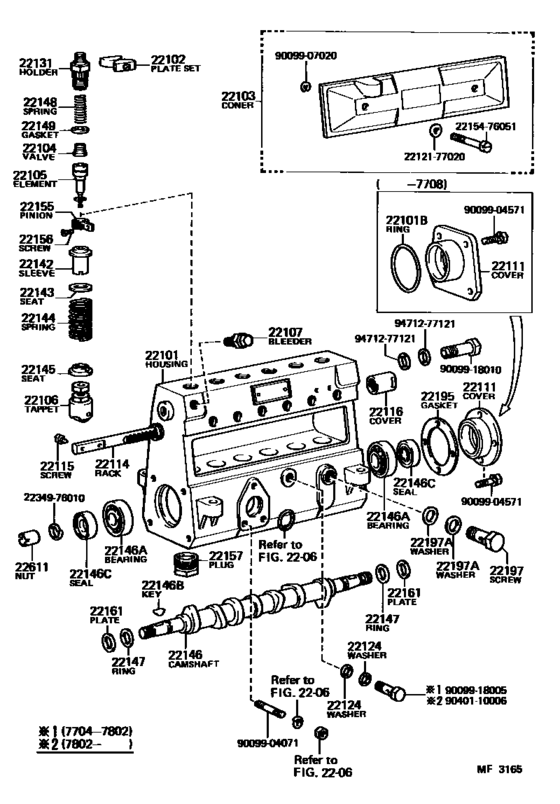

Injection Pump Body ([04.1977 - ] (7704- )2D) 67

#	OEM	Part name
22101	22101-77020	Housing Sub-Assy, Injection Pump
22101	22190-77130	Housing Sub-Assy, Injection Pump
22101	15077-77011	Pipe Sub-Assy, Oil, Injection Pump Outlet
22101	22190-77131	Housing Sub-Assy, Injection Pump
22101	22190-77132	Housing Sub-Assy, Injection Pump
22101	90099-14002	Ring, O(For Fullroad Stopper Housing, No.2)
22102	22102-77021	Plate Set, Valve Holder Lock
22103	22103-47030	Cover Sub-Assy, Injection Pump
22103	22103-77130	Cover Sub-Assy, Injection Pump
22103	22103-77140	Cover Sub-Assy, Injection Pump
22104	22104-68110	Valve Sub-Assy, Injection Pump Delivery
22104	22104-77020	Valve Sub-Assy, Injection Pump Delivery
22105	22105-77020	Element Sub-Assy, Injection Pump
22105	22105-77130	Element Sub-Assy, Injection Pump
22106	22106-77020	Tappet Sub-Assy, Injection Pump
22107	22150-67010	Bleeder Sub-Assy, Air
22111	22111-77020	Cover, Injection Pump Camshaft Bearing
22111	22111-77130	Cover, Injection Pump Camshaft Bearing
22114	22114-77020	Rack, Control
22114	22114-77130	Rack, Control
22115	22115-77020	Screw, Rack Guide
22115	22115-78140	Screw, Rack Guide
22116	22116-46010	Cover, Control Rack
22116	22116-77020	Cover, Control Rack
22124	22124-77020	Washer(For Over Flow Nipple)
22124	90201-10108	Washer(For Over Flow Nipple)
22124	90099-01451	Washer, Injection Pump Drain Union
22131	22131-77020	Holder, Delivery Valve
22142	22142-77020	Sleeve, Plunger Control
22142	22142-58230	Sleeve, Plunger Control
22143	22143-77020	Seat, Spring Upper
22144	90501-30133	Spring, Pump Plunger
22145	22145-77020	Seat, Spring, Lower
22146	22146-77020	Camshaft, Injection Pump
22146	22146-68010	Camshaft, Injection Pump
22146	90099-10087	Bearing(For Injection Camshaft)
22146	90099-13002	Key(For Spline Shaft)
22146	90099-15003	Seal, Oil(For Injection Pump Flange)
22147	22147-77020	Ring, Camshaft Adjust
22148	22148-77020	Spring, Delivery Valve
22148	90501-12126	Spring, Delivery Valve
22149	22149-76010	Gasket, Delivery Valve
22155	22155-76010	Pinion, Plunger Control
22156	22156-76010	Screw, Plunger Control Pinion Clamp
22157	22157-48023	Plug, Injection Pump Felt Plate
22161	22161-76010	Plate, Camshaft Shim
22161	22162-76010	Plate, Camshaft Shim
22161	22163-76010	Plate, Camshaft Shim
22161	22164-76010	Plate, Camshaft Shim
22161	22165-76010	Plate, Camshaft Shim
22161	22166-76010	Plate, Camshaft Shim
22195	22195-77130	Gasket, Bearing Cover
22195	22195-77141	Gasket, Bearing Cover
22197	90099-18005	Screw, Fuel Inlet Follow
22197	90099-18018	Nipple, Over Flow
22197	90099-01439	Gasket, Union Bolt
22197	90430-16004	Gasket, Union Bolt
22611	22611-77020	Nut, Timer Round
2212177020	22121-77020	Packing, Air Bleeder Screw
2215476051	22154-76051	Screw(For Injection Pump Cover Setting)
2234976010	22349-76010	Washer, Spring(For Drive Gear)
9009904071	90099-04071	New Genuine Part
9009904571	90099-04571	New Genuine Part
9009907020	90099-07020	Ring, Snap(For Injection Pump Cover)
9009918010	90099-18010	Screw, Fuel Pipe Follow
9040110006	90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)
9471277121	94712-77121	Gasket, Nipple Union(For Fuel)

OEM	Part name	Category
15077-77011	Pipe Sub-Assy, Oil, Injection Pump Outlet	Injection Pump Body ([04.1977 - ] (7704- )2D)
22101-77020	Housing Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22102-77021	Plate Set, Valve Holder Lock	Injection Pump Body ([04.1977 - ] (7704- )2D)
22103-47030	Cover Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22103-77130	Cover Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22103-77140	Cover Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22104-68110	Valve Sub-Assy, Injection Pump Delivery	Injection Pump Body ([04.1977 - ] (7704- )2D)
22104-77020	Valve Sub-Assy, Injection Pump Delivery	Injection Pump Body ([04.1977 - ] (7704- )2D)
22105-77020	Element Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22105-77130	Element Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22106-77020	Tappet Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22111-77020	Cover, Injection Pump Camshaft Bearing	Injection Pump Body ([04.1977 - ] (7704- )2D)
22111-77130	Cover, Injection Pump Camshaft Bearing	Injection Pump Body ([04.1977 - ] (7704- )2D)
22114-77020	Rack, Control	Injection Pump Body ([04.1977 - ] (7704- )2D)
22114-77130	Rack, Control	Injection Pump Body ([04.1977 - ] (7704- )2D)
22115-77020	Screw, Rack Guide	Injection Pump Body ([04.1977 - ] (7704- )2D)
22115-78140	Screw, Rack Guide	Injection Pump Body ([04.1977 - ] (7704- )2D)
22116-46010	Cover, Control Rack	Injection Pump Body ([04.1977 - ] (7704- )2D)
22116-77020	Cover, Control Rack	Injection Pump Body ([04.1977 - ] (7704- )2D)
22121-77020	Packing, Air Bleeder Screw	Injection Pump Body ([04.1977 - ] (7704- )2D)
22124-77020	Washer(For Over Flow Nipple)	Injection Pump Body ([04.1977 - ] (7704- )2D)
22131-77020	Holder, Delivery Valve	Injection Pump Body ([04.1977 - ] (7704- )2D)
22142-58230	Sleeve, Plunger Control	Injection Pump Body ([04.1977 - ] (7704- )2D)
22142-77020	Sleeve, Plunger Control	Injection Pump Body ([04.1977 - ] (7704- )2D)
22143-77020	Seat, Spring Upper	Injection Pump Body ([04.1977 - ] (7704- )2D)
22145-77020	Seat, Spring, Lower	Injection Pump Body ([04.1977 - ] (7704- )2D)
22146-68010	Camshaft, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22146-77020	Camshaft, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22147-77020	Ring, Camshaft Adjust	Injection Pump Body ([04.1977 - ] (7704- )2D)
22148-77020	Spring, Delivery Valve	Injection Pump Body ([04.1977 - ] (7704- )2D)
22149-76010	Gasket, Delivery Valve	Injection Pump Body ([04.1977 - ] (7704- )2D)
22150-67010	Bleeder Sub-Assy, Air	Injection Pump Body ([04.1977 - ] (7704- )2D)
22154-76051	Screw(For Injection Pump Cover Setting)	Injection Pump Body ([04.1977 - ] (7704- )2D)
22155-76010	Pinion, Plunger Control	Injection Pump Body ([04.1977 - ] (7704- )2D)
22156-76010	Screw, Plunger Control Pinion Clamp	Injection Pump Body ([04.1977 - ] (7704- )2D)
22157-48023	Plug, Injection Pump Felt Plate	Injection Pump Body ([04.1977 - ] (7704- )2D)
22161-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22162-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22163-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22164-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22165-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22166-76010	Plate, Camshaft Shim	Injection Pump Body ([04.1977 - ] (7704- )2D)
22190-77130	Housing Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22190-77131	Housing Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22190-77132	Housing Sub-Assy, Injection Pump	Injection Pump Body ([04.1977 - ] (7704- )2D)
22195-77130	Gasket, Bearing Cover	Injection Pump Body ([04.1977 - ] (7704- )2D)
22195-77141	Gasket, Bearing Cover	Injection Pump Body ([04.1977 - ] (7704- )2D)
22349-76010	Washer, Spring(For Drive Gear)	Injection Pump Body ([04.1977 - ] (7704- )2D)
22611-77020	Nut, Timer Round	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-01439	Gasket, Union Bolt	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-01451	Washer, Injection Pump Drain Union	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-04071	New Genuine Part	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-04571	New Genuine Part	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-07020	Ring, Snap(For Injection Pump Cover)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-10087	Bearing(For Injection Camshaft)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-13002	Key(For Spline Shaft)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-14002	Ring, O(For Fullroad Stopper Housing, No.2)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-15003	Seal, Oil(For Injection Pump Flange)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-18005	Screw, Fuel Inlet Follow	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-18010	Screw, Fuel Pipe Follow	Injection Pump Body ([04.1977 - ] (7704- )2D)
90099-18018	Nipple, Over Flow	Injection Pump Body ([04.1977 - ] (7704- )2D)
90201-10108	Washer(For Over Flow Nipple)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90401-10006	Bolt, Union(For Turbo Oil Inlet Pipe)	Injection Pump Body ([04.1977 - ] (7704- )2D)
90430-16004	Gasket, Union Bolt	Injection Pump Body ([04.1977 - ] (7704- )2D)
90501-12126	Spring, Delivery Valve	Injection Pump Body ([04.1977 - ] (7704- )2D)
90501-30133	Spring, Pump Plunger	Injection Pump Body ([04.1977 - ] (7704- )2D)
94712-77121	Gasket, Nipple Union(For Fuel)	Injection Pump Body ([04.1977 - ] (7704- )2D)
