D81W

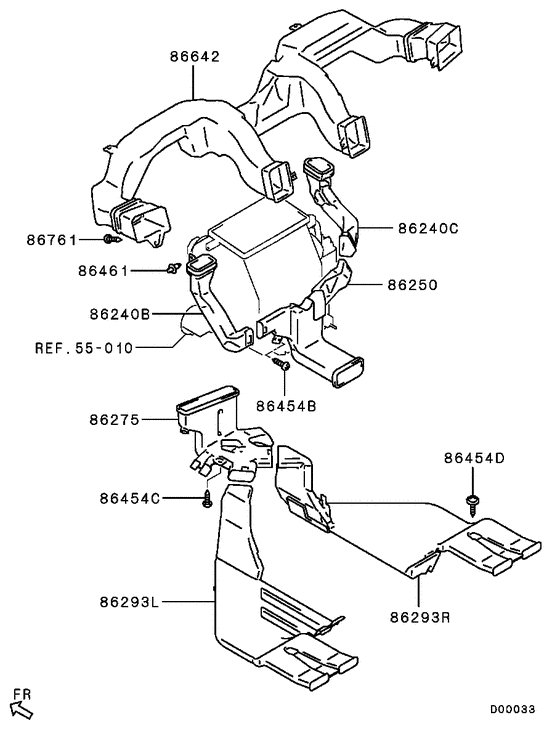

Ventilation & duct (FRONT) 11
| # | OEM | Part name |
|---|---|---|
| 86240 | MR513478 | DUCT,FLOOR CONSOLE HEATER,FR |
| 86240 | MR513480 | DUCT,FLOOR CONSOLE HEATER,FR |
| 86250 | MR513479 | DUCT,FLOOR CONSOLE HEATER,RR |
| 86275 | MR513463 | DUCT,FOOT HEATER |
| 86293 | MR513464 | DUCT,RR HEATER,RR LH |
| 86293 | MR513465 | DUCT,RR HEATER,RR RH |
| 86454 | MF453019 | SCREW, STEERING COLUMN COVER - Tapping,4x16 |
| 86454 | MS450157 | SCREW, ENG CONTROL EQUIP - Tapping,5x16 |
| 86461 | MB476821 | CLIP, SPLASH SHIELD |
| 86642 | MR568876 | DUCT,VENTILATOR AIR DISTRIBUTION |
| 86761 | MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 |
| OEM | Part name | Category |
|---|---|---|
| MB476821 | CLIP, SPLASH SHIELD | Ventilation & duct (FRONT) |
| MF453019 | SCREW, STEERING COLUMN COVER - Tapping,4x16 | Ventilation & duct (FRONT) |
| MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 | Ventilation & duct (FRONT) |
| MR513463 | DUCT,FOOT HEATER | Ventilation & duct (FRONT) |
| MR513464 | DUCT,RR HEATER,RR LH | Ventilation & duct (FRONT) |
| MR513465 | DUCT,RR HEATER,RR RH | Ventilation & duct (FRONT) |
| MR513478 | DUCT,FLOOR CONSOLE HEATER,FR | Ventilation & duct (FRONT) |
| MR513479 | DUCT,FLOOR CONSOLE HEATER,RR | Ventilation & duct (FRONT) |
| MR513480 | DUCT,FLOOR CONSOLE HEATER,FR | Ventilation & duct (FRONT) |
| MR568876 | DUCT,VENTILATOR AIR DISTRIBUTION | Ventilation & duct (FRONT) |
| MS450157 | SCREW, ENG CONTROL EQUIP - Tapping,5x16 | Ventilation & duct (FRONT) |
