D40

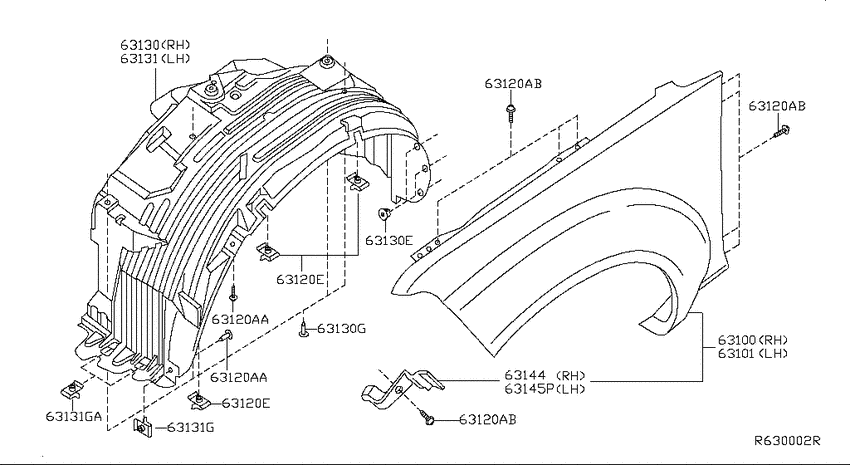

Front fender & fitting (2009-08-01 ~ ; KC +CC) 9
| # | OEM | Part name |
|---|---|---|
| 63100 | 63100-EA530 | Fender-Front, Rh |
| 63100 | 63100-ZL15A | Fender-Front, Rh |
| 63101 | 63101-EA530 | Fender-Front, Lh |
| 63101 | 63101-ZL15A | Fender-Front, Lh |
| 63120 | 01466-0002U | Screw |
| 63130 | 63840-EA800 | Protector-Front Fender, Rh |
| 63131 | 63841-EA800 | Protector-Front Fender, Lh |
| 63144 | 63144-EA530 | Bracket-Front Fender Lower, Rh |
| 63145 | 63145-EA530 | Bracket-Front Fender Lower, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01466-0002U | Screw | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63100-EA530 | Fender-Front, Rh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63100-ZL15A | Fender-Front, Rh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63101-EA530 | Fender-Front, Lh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63101-ZL15A | Fender-Front, Lh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63144-EA530 | Bracket-Front Fender Lower, Rh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63145-EA530 | Bracket-Front Fender Lower, Lh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63840-EA800 | Protector-Front Fender, Rh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
| 63841-EA800 | Protector-Front Fender, Lh | Front fender & fitting (2009-08-01 ~ ; KC +CC) |
