Search › Model › D40
D40

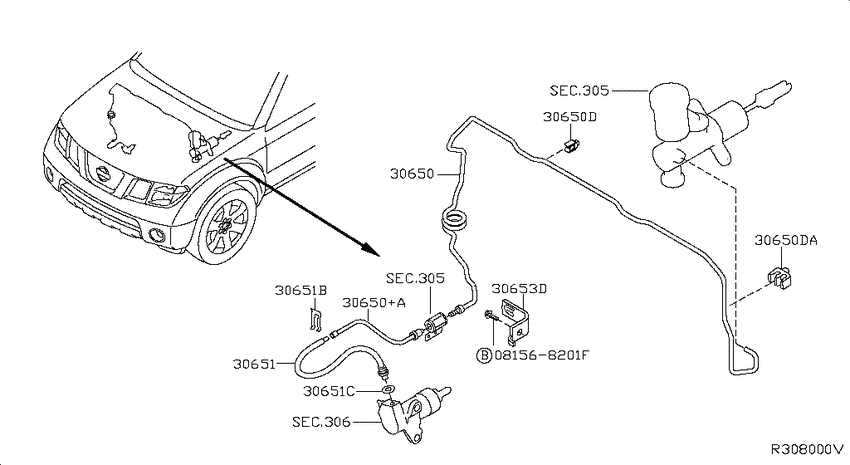

Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) 9
| # | OEM | Part name |
|---|---|---|
| 30650 | 30850-EA200 | Tube Assy-Clutch |
| 30650 | 30851-EA200 | Tube Assy-Clutch |
| 30650 | 46289-0C010 | Clamp |
| 30650 | 46271-01B10 | Clip |
| 30650 | 46271-01E00 | CLAMP-BRAKE TUBE |
| 30650 | 30650-EA200 | Orifice Assy-Clutch |
| 30651 | 30855-ZP50A | Hose Assy-Clutch |
| 30653 | 50915-EA010 | Bracket-Clutch Hose |
| 81568201 | 08156-8201F | BOLTHEXPP WW |
| OEM | Part name | Category |
|---|---|---|
| 08156-8201F | BOLTHEXPP WW | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 30650-EA200 | Orifice Assy-Clutch | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 30850-EA200 | Tube Assy-Clutch | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 30851-EA200 | Tube Assy-Clutch | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 30855-ZP50A | Hose Assy-Clutch | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 46271-01B10 | Clip | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 46271-01E00 | CLAMP-BRAKE TUBE | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 46289-0C010 | Clamp | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
| 50915-EA010 | Bracket-Clutch Hose | Clutch piping (2008-07-01 ~ ; QR25DE +VQ40DE) |
