Search › Model › D22

D22

Nissan DATSUN · 1997 · 3,206 parts · 238 categories

3,206 items

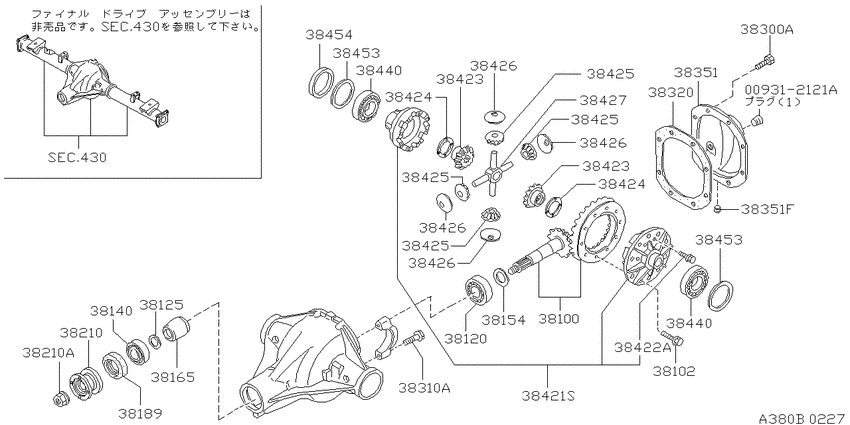

Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4) 90

#	OEM	Part name
38100	38100-F5601	Gear Set-Final Drive
38100	38100-07G10	Gear Set-Final Drive
38102	38102-20R00	Bolt-Drive Gear
38125	38125-P0102	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G00	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G01	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G02	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G03	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G04	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G05	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G06	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G07	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G08	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G09	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G10	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G11	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G12	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G13	Washer-Adjust, Drive Pinion Bearing
38125	38127-01G14	Washer-Adjust, Drive Pinion Bearing
38140	38140-13201	Bearing-Drive Pinion, Front
38154	38154-P6017	Washer-Adjust, Drive Pinion
38154	38154-P6018	Washer-Adjust, Drive Pinion
38154	38154-P6019	Washer-Adjust, Drive Pinion
38154	38154-P6020	Washer-Adjust, Drive Pinion
38154	38154-P6021	Washer-Adjust, Drive Pinion
38154	38154-P6022	Washer-Adjust, Drive Pinion
38154	38154-P6023	Washer-Adjust, Drive Pinion
38154	38154-P6024	Washer-Adjust, Drive Pinion
38154	38154-P6025	Washer-Adjust, Drive Pinion
38154	38154-P6028	Washer-Adjust, Drive Pinion
38154	38154-P6029	Washer-Adjust, Drive Pinion
38154	38154-P6030	Washer-Adjust, Drive Pinion
38154	38154-P6031	Washer-Adjust, Drive Pinion
38154	38154-P6032	Washer-Adjust, Drive Pinion
38154	38154-P6033	Washer-Adjust, Drive Pinion
38154	38154-P6034	Washer-Adjust, Drive Pinion
38154	38154-P6035	Washer-Adjust, Drive Pinion
38154	38154-P6036	Washer-Adjust, Drive Pinion
38165	38131-78500	Spacer-Drive Pinion Bearing
38165	38132-78500	Spacer-Drive Pinion Bearing
38165	38133-78500	Spacer-Drive Pinion Bearing
38165	38134-78500	Spacer-Drive Pinion Bearing
38165	38135-78500	Spacer-Drive Pinion Bearing
38189	38189-N3111	Seal-Oil, Drive Pinion
38210	38210-C6010	Flange Assy-Companion
38210	38216-U3000	Nut
38210	38216-U301A	Nut-Drive Pinion
38210	47960-2S400	Bracket-Sensor
38210	47960-2S900	Bracket-Sensor
38210	38210-01G15	Flange Assy-Companion
38300	38321-C8010	Bolt-Front Cover
38300	38321-C801A	Bolt-Front Cover
38310	38315-N3100	Bolt-Bearing Cap
38351	38350-C6023	Cover-Rear, Final Drive
38351	32103-U8401	Plug-Drain
38421	38420-12S10	Case Set-Differential
38421	38420-P9400	Case-Differential
38421	38421-C6091	Case Set-Differential
38422	38434-10V00	Bolt-Coupling, Differential Case
38422	38434-C6000	Bolt-Coupling, Differential Case
38423	38423-C6002	Gear-Side
38423	38423-01G00	Gear-Side
38424	38424-E3000	Washer-Thrust, Side Gear
38424	38424-E3001	Washer-Thrust, Side Gear
38424	38424-E3002	Washer-Thrust, Side Gear
38424	38424-E3003	Washer-Thrust, Side Gear
38424	38424-W2010	Washer-Thrust, Side Gear
38424	38424-W2011	Washer-Thrust, Side Gear
38424	38424-W2012	Washer-Thrust, Side Gear
38424	38424-W2013	Washer-Thrust, Side Gear
38424	38424-W2014	Washer-Thrust, Side Gear
38424	38424-W2015	Washer-Thrust, Side Gear
38424	38424-W2016	Washer-Thrust, Side Gear
38424	38424-W2017	Washer-Thrust, Side Gear
38425	38425-B4000	Pinion-Mate
38425	38425-C6002	Pinion-Mate
38425	38425-78501	Pinion-Mate
38425	38425-78502	Pinion-mate
38426	38426-P9300	Washer-Thrust, Pinion Mate
38426	38426-01X15	Washer-Thrust, Pinion Mate
38427	38427-C6002	Shaft-Pinion Mate
38427	38427-P9300	Shaft-Pinion Mate
38427	38427-01G00	Shaft-Pinion Mate
38440	38440-N3111	Bearing-Differential Side
38453	38453-01G00	Shim-Adjust, Side Bearing
38453	38453-01G01	Shim-Adjust, Side Bearing
38453	38453-01G02	Shim-Adjust, Side Bearing
38453	38453-01G03	Shim-Adjust, Side Bearing
38453	38453-01G04	Shim-Adjust, Side Bearing
38454	38454-N3160	Spacer-Differential Side

OEM	Part name	Category
32103-U8401	Plug-Drain	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38100-07G10	Gear Set-Final Drive	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38100-F5601	Gear Set-Final Drive	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38102-20R00	Bolt-Drive Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38125-P0102	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G00	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G01	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G02	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G03	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G04	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G05	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G06	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G07	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G08	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G09	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G10	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G11	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G12	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G13	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38127-01G14	Washer-Adjust, Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38131-78500	Spacer-Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38132-78500	Spacer-Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38133-78500	Spacer-Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38134-78500	Spacer-Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38135-78500	Spacer-Drive Pinion Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38140-13201	Bearing-Drive Pinion, Front	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6017	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6018	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6019	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6020	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6021	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6022	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6023	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6024	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6025	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6028	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6029	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6030	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6031	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6032	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6033	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6034	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6035	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38154-P6036	Washer-Adjust, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38189-N3111	Seal-Oil, Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38210-01G15	Flange Assy-Companion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38210-C6010	Flange Assy-Companion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38216-U3000	Nut	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38216-U301A	Nut-Drive Pinion	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38315-N3100	Bolt-Bearing Cap	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38321-C8010	Bolt-Front Cover	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38321-C801A	Bolt-Front Cover	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38350-C6023	Cover-Rear, Final Drive	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38420-12S10	Case Set-Differential	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38420-P9400	Case-Differential	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38421-C6091	Case Set-Differential	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38423-01G00	Gear-Side	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38423-C6002	Gear-Side	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-E3000	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-E3001	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-E3002	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-E3003	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2010	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2011	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2012	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2013	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2014	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2015	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2016	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38424-W2017	Washer-Thrust, Side Gear	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38425-78501	Pinion-Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38425-78502	Pinion-mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38425-B4000	Pinion-Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38425-C6002	Pinion-Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38426-01X15	Washer-Thrust, Pinion Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38426-P9300	Washer-Thrust, Pinion Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38427-01G00	Shaft-Pinion Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38427-C6002	Shaft-Pinion Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38427-P9300	Shaft-Pinion Mate	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38434-10V00	Bolt-Coupling, Differential Case	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38434-C6000	Bolt-Coupling, Differential Case	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38440-N3111	Bearing-Differential Side	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38453-01G00	Shim-Adjust, Side Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38453-01G01	Shim-Adjust, Side Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38453-01G02	Shim-Adjust, Side Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38453-01G03	Shim-Adjust, Side Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38453-01G04	Shim-Adjust, Side Bearing	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
38454-N3160	Spacer-Differential Side	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
47960-2S400	Bracket-Sensor	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)
47960-2S900	Bracket-Sensor	Rear final drive (1999-06-01 ~ ; 4 ピニオン(C200); KA24DE.AT.F4)

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 238
Collected: 2026-07-27
