Search › Model › D22
D22

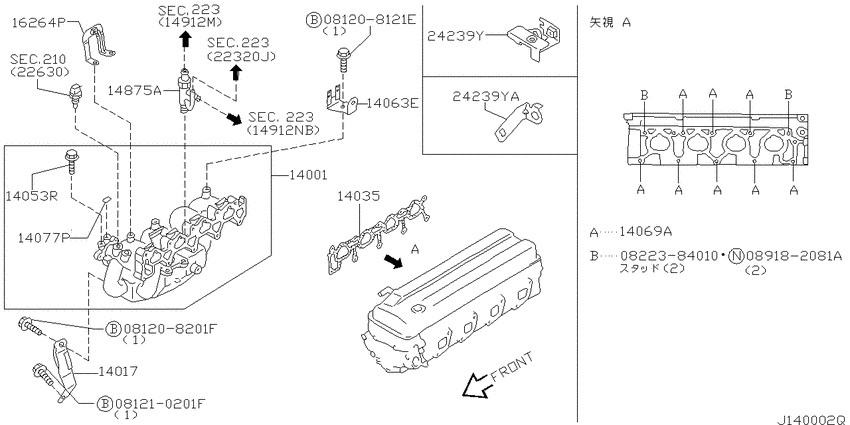

Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) 11
| # | OEM | Part name |
|---|---|---|
| 14001 | 14001-VJ260 | Manifold Assy-Intake |
| 14017 | 14017-VJ261 | Support-Manifold |
| 14053 | 14053-42L00 | Plug Assy-Air Relief |
| 14063 | 24136-VJ201 | Bracket-Egi Harness |
| 14069 | 14069-3S500 | Bolt |
| 14875 | 14875-VJ202 | Connector-Vacuum Hose |
| 16264 | 16264-VJ201 | Bracket |
| 24239 | 24239-VJ220 | Bracket-Clip |
| 24239 | 24239-VJ260 | Bracket-Clip |
| 81208121 | 08120-8121E | Bolt-hexagon |
| 81210201 | 08121-0201F | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8121E | Bolt-hexagon | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 08121-0201F | Bolt-hexagon | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 14001-VJ260 | Manifold Assy-Intake | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 14017-VJ261 | Support-Manifold | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 14053-42L00 | Plug Assy-Air Relief | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 14069-3S500 | Bolt | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 14875-VJ202 | Connector-Vacuum Hose | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 16264-VJ201 | Bracket | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 24136-VJ201 | Bracket-Egi Harness | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 24239-VJ220 | Bracket-Clip | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
| 24239-VJ260 | Bracket-Clip | Manifold (1999-06-01 ~ ; インテーク パーツ; KA24DE) |
