| 01121-01003 |
BOLT |

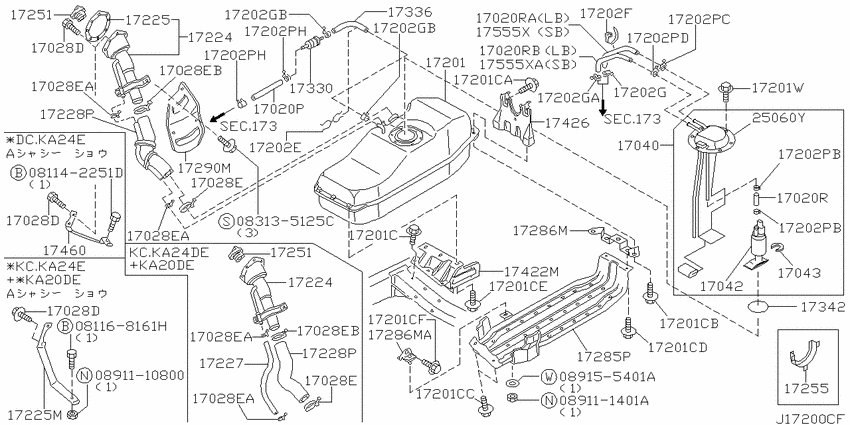

Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01121-01473 |
BOLT |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01431-00281 |
SCREW |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01552-00401 |
CLIP-WIRING HARNESS |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01555-00231 |
CLAMP |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01555-00461 |
CLAMP |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01558-00401 |
CLAMP-HOSE |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 01995-00181 |
HOSE-FUEL |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 08114-2251D |
Bolt-hexagon |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 08116-8161H |
Bolt-hexagon |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 08313-5125C |
スクリユ-,マシン |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 08740-05039 |
HOSE-FUEL |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 14908-B5000 |
Clip-Wiring Harness |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 16439-35F15 |
Clamp |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 16439-N4710 |
Clamp-Hose |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17040-VJ200 |
Pump Compl-Fuel |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17042-VJ200 |
Pump Assy-Fuel |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17043-4P000 |
Support-Pump, Rubber |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17202-VJ200 |
Tank Assy-Fuel |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17202-VK80B |
Tank Assy-Fuel |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17220-VJ205 |
Tube Assy-Filler |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17225-01G00 |
Packing-Filler Neck |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17228-VJ210 |
Hose-Filler |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17251-79922 |
Cap Assy-Filler |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17251-C9905 |
Cap Assy-Filler |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17285-31G11 |
Protector-Fuel Tank |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17286-31G00 |
Bracket-Fuel Tank Mounting, Rear |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17286-31G10 |
Bracket-Protector, Fuel Tank |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17290-01G00 |
Protector |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17330-2S622 |
Tube Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17330-2S661 |
Tube Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17330-2S662 |
Tube Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17330-2S670 |
Tube Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17330-D0100 |
Valve Assy-Fuel Check |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S611 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S612 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S614 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S618 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S621 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-2S668 |
Hose Assy-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17335-4P010 |
Hose-Breather |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17336-VJ201 |
Hose-Evaporation |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17422-31G02 |
Bracket-Fuel Tank Mounting, Front |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17426-01G01 |
Bracket-Fuel |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 17460-20G00 |
Protector |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
| 25060-VJ200 |
Sender Unit-Fuel Gauge |
Fuel tank (2002-04-01 ~ ; KA20DE +KA24DE) |
