D22

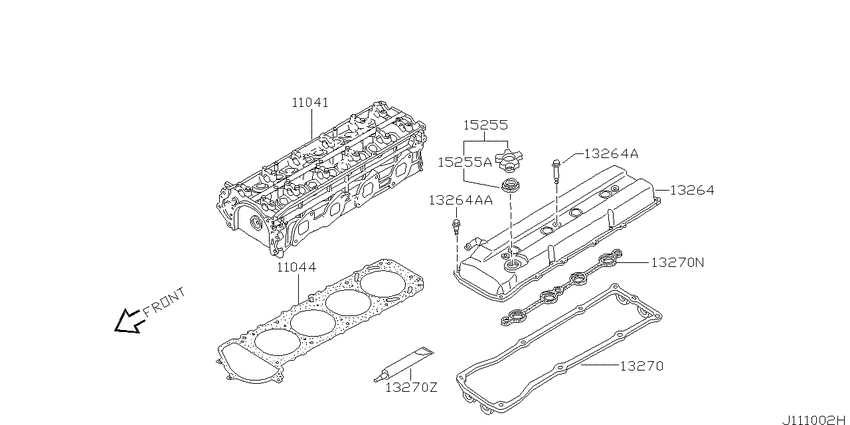

Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) 8
| # | OEM | Part name |
|---|---|---|
| 11041 | 11040-VJ260 | Head Assy-Cylinder |
| 11044 | 11044-70F00 | Gasket-Cylinder Head |
| 13264 | 13264-VJ211 | Cover Assy-Valve Rocker |
| 13264 | 13224-70F00 | Bolt-Rocker Cover |
| 13264 | 13224-70F0C | Bolt-rocker cover |
| 13264 | 13224-70F10 | Bolt-Rocker Cover |
| 13264 | 13224-70F1C | Bolt-rocker cover |
| 15255 | 15255-D5500 | Cap Assy-Oil Filler |
| OEM | Part name | Category |
|---|---|---|
| 11040-VJ260 | Head Assy-Cylinder | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 11044-70F00 | Gasket-Cylinder Head | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 13224-70F00 | Bolt-Rocker Cover | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 13224-70F0C | Bolt-rocker cover | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 13224-70F10 | Bolt-Rocker Cover | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 13224-70F1C | Bolt-rocker cover | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 13264-VJ211 | Cover Assy-Valve Rocker | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
| 15255-D5500 | Cap Assy-Oil Filler | Cylinder head & rocker cover (1999-06-01 ~ ; アッセンブリー; KA24DE) |
