| 00923-10810 |
PIN-SNAP |

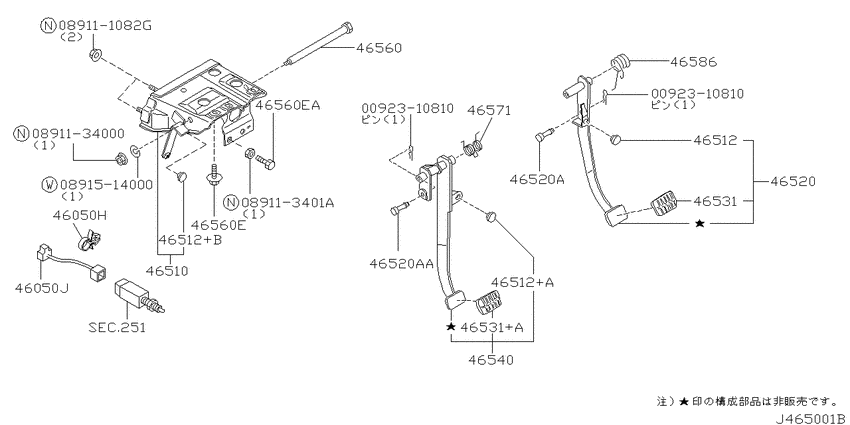

Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 18519-VR000 |
Clamp |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 24167-VJ200 |
Harness-Sub |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46123-03W10 |
Pin-Clevis |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46123-H8500 |
Pin-Clevis |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46123-H850A |
Pin-Clevis |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46510-VJ200 |
Bracket Assy-Pedal |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46520-15G00 |
Pedal Assy-Brake |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46540-VJ200 |
Pedal Assy-Clutch |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46560-2S600 |
Pin-Fulcrum |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
| 46586-01G00 |
Spring-Return |
Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.MT.F5 +KA24DE.MT.F5) |
