Search › Model › D22

D22

Nissan DATSUN · 1997 · 3,206 parts · 238 categories

← Back to categories

3,206 items

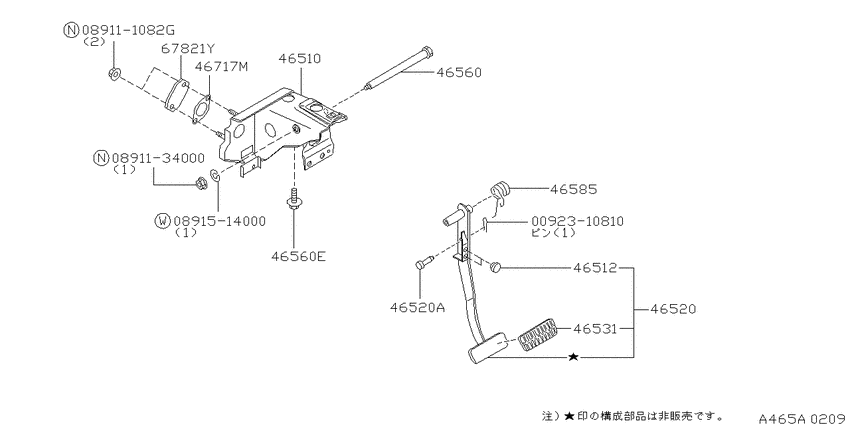

Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4) 10

#	OEM	Part name
46510	46510-2S410	Bracket Assy-Pedal
46520	46520-2S410	Pedal Assy-Brake
46520	46123-03W10	Pin-Clevis
46520	46123-H8500	Pin-Clevis
46520	46123-H850A	Pin-Clevis
46560	46560-24G00	Pin-Fulcrum
46585	46585-V5000	Spring-Return
46717	46567-V5000	Packing-Clutch Cable
67821	67832-H8800	Cover-Clutch Master Cylinder Hole
92310810	00923-10810	PIN-SNAP

OEM	Part name	Category
00923-10810	PIN-SNAP	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46123-03W10	Pin-Clevis	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46123-H8500	Pin-Clevis	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46123-H850A	Pin-Clevis	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46510-2S410	Bracket Assy-Pedal	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46520-2S410	Pedal Assy-Brake	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46560-24G00	Pin-Fulcrum	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46567-V5000	Packing-Clutch Cable	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
46585-V5000	Spring-Return	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)
67832-H8800	Cover-Clutch Master Cylinder Hole	Brake & clutch pedal (1999-06-01 ~ 2001-10-01; QD32.AT.F4 +KA24DE.AT.F4)

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 238
Collected: 2026-07-27
