D22

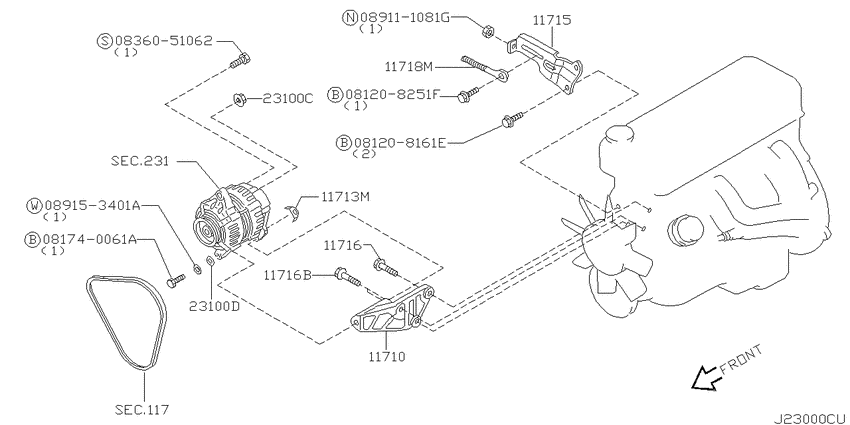

Alternator fitting (2002-02-01 ~ ; KA24DE) 9
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-VJ210 | Bracket-Alternator |
| 11713 | 23188-16V00 | Nut-Stopper, Alternator |
| 11715 | 11715-VJ267 | Bar-Adjusting, Alternator |
| 11716 | 11916-85E02 | BOLT |
| 11716 | 11916-85E0B | Bolt |
| 11716 | 11716-40F00 | Bolt |
| 11718 | 11942-06E00 | BRACKET-ALTERNATOR ADJUST BOLT |
| 11718 | 11942-06E0A | Bracket-Alternator Adjust Bolt |
| 836051062 | 08360-51062 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08360-51062 | スクリユ-,マシン | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11710-VJ210 | Bracket-Alternator | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11715-VJ267 | Bar-Adjusting, Alternator | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11716-40F00 | Bolt | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11916-85E02 | BOLT | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11916-85E0B | Bolt | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11942-06E00 | BRACKET-ALTERNATOR ADJUST BOLT | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 11942-06E0A | Bracket-Alternator Adjust Bolt | Alternator fitting (2002-02-01 ~ ; KA24DE) |
| 23188-16V00 | Nut-Stopper, Alternator | Alternator fitting (2002-02-01 ~ ; KA24DE) |
