Search › Model › D22
D22

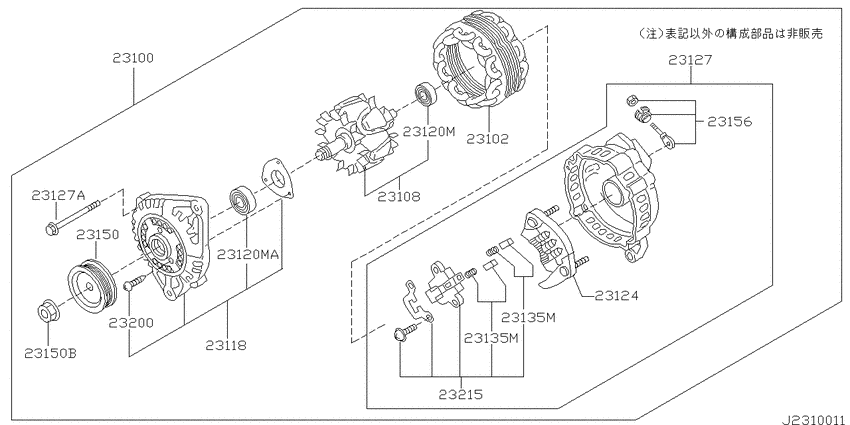

Alternator (1999-06-01 ~ ; 三菱; KA24DE) 13
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-VJ210 | Alternator Assy |
| 23102 | 23102-0M010 | Stator Assy |
| 23108 | 23108-0E716 | Rotor Assy |
| 23118 | 23118-VJ215 | Cover Assy-Front |
| 23120 | 23120-30R10 | Bearing-Ball |
| 23120 | 23120-22J20 | Bearing-Ball |
| 23124 | 23124-VJ215 | Rectifier Assy |
| 23127 | 23127-VJ215 | Cover Assy-Rear |
| 23127 | 23131-20P10 | Bolt-Through |
| 23150 | 23150-VJ210 | Pulley Assy |
| 23150 | 23153-70T12 | Plate-Terminal |
| 23200 | 23115-20P10 | Screw Set |
| 23215 | 23215-0V016 | Regulator Assy-Ic |
| OEM | Part name | Category |
|---|---|---|
| 23100-VJ210 | Alternator Assy | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23102-0M010 | Stator Assy | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23108-0E716 | Rotor Assy | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23115-20P10 | Screw Set | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23118-VJ215 | Cover Assy-Front | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23120-22J20 | Bearing-Ball | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23120-30R10 | Bearing-Ball | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23124-VJ215 | Rectifier Assy | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23127-VJ215 | Cover Assy-Rear | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23131-20P10 | Bolt-Through | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23150-VJ210 | Pulley Assy | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23153-70T12 | Plate-Terminal | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
| 23215-0V016 | Regulator Assy-Ic | Alternator (1999-06-01 ~ ; 三菱; KA24DE) |
