D05W

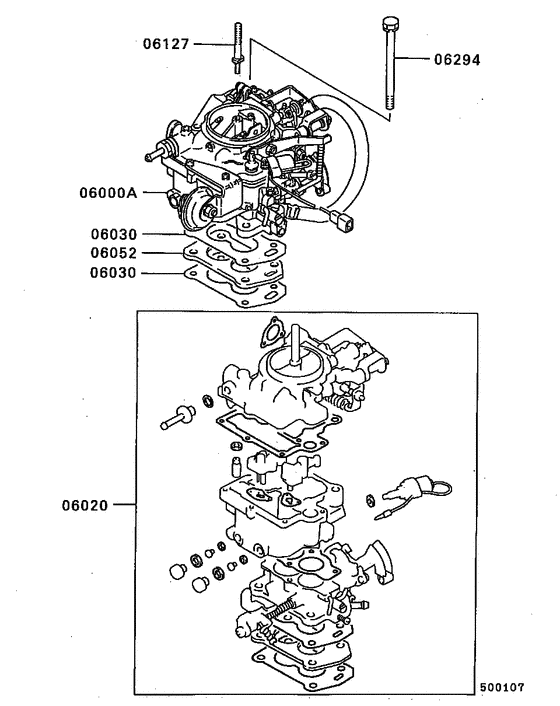

Carburetor (ALL (ASSEMBLY)) 12
| # | OEM | Part name |
|---|---|---|
| 6000 | MD079246 | CARBURETOR ASSY |
| 6000 | MD117666 | CARBURETOR ASSY |
| 6000 | MD079231 | CARBURETOR ASSY |
| 6020 | MD601737 | GASKET KIT, CARB |
| 6020 | MD615274 | GASKET KIT,CARB |
| 6030 | MD021255 | GASKET,CARB |
| 6030 | MD091628 | GASKET, CARB |
| 6030 | MD164718 | GASKET, CARB |
| 6030 | MD164811 | GASKET,CARB |
| 6052 | MD007093 | INSULATOR, CARB HEAT |
| 6127 | MD074616 | STUD, CARB - 8x45 |
| 6294 | MD025519 | BOLT, CARB - Washer assembled,8x110 |
| OEM | Part name | Category |
|---|---|---|
| MD007093 | INSULATOR, CARB HEAT | Carburetor (ALL (ASSEMBLY)) |
| MD021255 | GASKET,CARB | Carburetor (ALL (ASSEMBLY)) |
| MD025519 | BOLT, CARB - Washer assembled,8x110 | Carburetor (ALL (ASSEMBLY)) |
| MD074616 | STUD, CARB - 8x45 | Carburetor (ALL (ASSEMBLY)) |
| MD079231 | CARBURETOR ASSY | Carburetor (ALL (ASSEMBLY)) |
| MD079246 | CARBURETOR ASSY | Carburetor (ALL (ASSEMBLY)) |
| MD091628 | GASKET, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD117666 | CARBURETOR ASSY | Carburetor (ALL (ASSEMBLY)) |
| MD164718 | GASKET, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD164811 | GASKET,CARB | Carburetor (ALL (ASSEMBLY)) |
| MD601737 | GASKET KIT, CARB | Carburetor (ALL (ASSEMBLY)) |
| MD615274 | GASKET KIT,CARB | Carburetor (ALL (ASSEMBLY)) |
