Search › Model › D02W
D02W

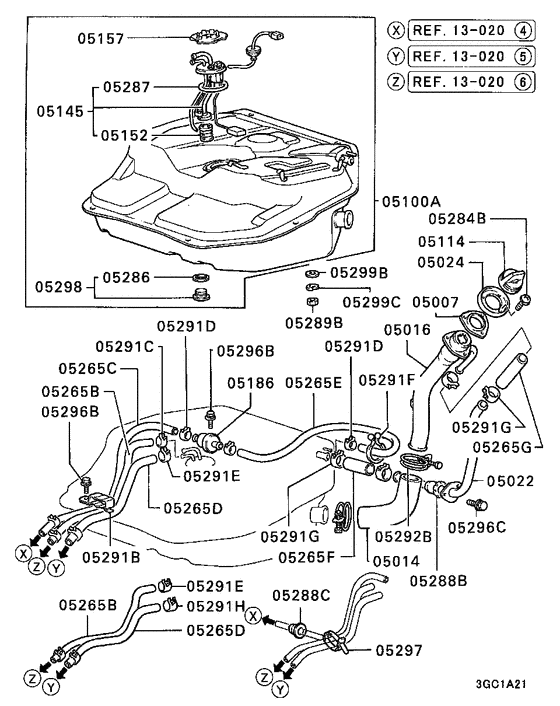

Fuel tank (ALL) 37
| # | OEM | Part name |
|---|---|---|
| 5007 | MB247374 | GASKET, FUEL FILLER NECK |
| 5014 | MB247852 | HOSE, FUEL FILLER |
| 5016 | MB247853 | NECK, FUEL FILLER |
| 5022 | MB247870 | PIPE, FUEL FILLER BREATHER |
| 5024 | MB248049 | PLATE, FUEL FILLER NECK REINF |
| 5100 | MB248382 | FUEL TANK ASSY |
| 5114 | MB247387 | CAP, FUEL TANK |
| 5145 | MB408480 | GAUGE UNIT, FUEL TANK |
| 5152 | MB129895 | FILTER, FUEL IN TANK |
| 5157 | MB248216 | PLATE, FUEL TANK GAUGE |
| 5186 | MB009102 | VALVE, FUEL TANK VAPOR HOSE 2-WAY |
| 5265 | MS642596 | HOSE, FUEL TANK - 6x2000 |
| 5265 | MS605158 | HOSE, EMISSION SOLENOID VALVE - 6x2000 |
| 5265 | MS603111 | TUBE, FUEL RETURN LINE - Rubber,8x2000 |
| 5265 | MB247375 | HOSE, FUEL TANK |
| 5265 | MB247859 | HOSE, FUEL TANK |
| 5284 | MB400510 | SCREW, FUEL TANK - Washer assembled,6x16 |
| 5284 | MU340019 | SCREW, FUEL TANK - Washer assembled,6x16 |
| 5284 | MU340031 | SCREW, FUEL TANK - Washer assembled,6x16 |
| 5284 | MB400511 | SCREW, FUEL TANK - Washer assembled,6x16 |
| 5284 | MS350109 | SCREW, FUEL LINE - Washer assembled,6x16 |
| 5286 | MB129662 | GASKET, FUEL TANK - 22 |
| 5287 | MB248217 | O-RING, FUEL TANK - 69.6 |
| 5288 | MB247876 | GROMMET, FUEL TANK - 22 |
| 5289 | MF430006 | NUT - 10 |
| 5291 | MB075877 | CLIP, FUEL TANK |
| 5291 | MS660163 | CLIP, ROCKER COVER - D=11.6 |
| 5291 | MS660169 | CLIP, FUEL TANK - D=10 |
| 5291 | MS660164 | CLAMP, T/M OIL COOLER LINE - D=13.1 |
| 5291 | MB248414 | CLIP, FUEL TANK - 30 |
| 5291 | MS660173 | CLIP, FUEL TANK - D=18.5 |
| 5292 | MS660031 | CLAMP, FUEL TANK - 52 |
| 5296 | MF240025 | BOLT, ENG OIL PUMP INR - Washer assembled,6x16 |
| 5296 | MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 |
| 5298 | MB129660 | PLUG, FUEL TANK |
| 5299 | MF450006 | WASHER, CYLINDER HEAD - Plain,10 |
| 5299 | MF450406 | WASHER - Spring,10 |
| OEM | Part name | Category |
|---|---|---|
| MB009102 | VALVE, FUEL TANK VAPOR HOSE 2-WAY | Fuel tank (ALL) |
| MB075877 | CLIP, FUEL TANK | Fuel tank (ALL) |
| MB129660 | PLUG, FUEL TANK | Fuel tank (ALL) |
| MB129662 | GASKET, FUEL TANK - 22 | Fuel tank (ALL) |
| MB129895 | FILTER, FUEL IN TANK | Fuel tank (ALL) |
| MB247374 | GASKET, FUEL FILLER NECK | Fuel tank (ALL) |
| MB247375 | HOSE, FUEL TANK | Fuel tank (ALL) |
| MB247387 | CAP, FUEL TANK | Fuel tank (ALL) |
| MB247852 | HOSE, FUEL FILLER | Fuel tank (ALL) |
| MB247853 | NECK, FUEL FILLER | Fuel tank (ALL) |
| MB247859 | HOSE, FUEL TANK | Fuel tank (ALL) |
| MB247870 | PIPE, FUEL FILLER BREATHER | Fuel tank (ALL) |
| MB247876 | GROMMET, FUEL TANK - 22 | Fuel tank (ALL) |
| MB248049 | PLATE, FUEL FILLER NECK REINF | Fuel tank (ALL) |
| MB248216 | PLATE, FUEL TANK GAUGE | Fuel tank (ALL) |
| MB248217 | O-RING, FUEL TANK - 69.6 | Fuel tank (ALL) |
| MB248382 | FUEL TANK ASSY | Fuel tank (ALL) |
| MB248414 | CLIP, FUEL TANK - 30 | Fuel tank (ALL) |
| MB400510 | SCREW, FUEL TANK - Washer assembled,6x16 | Fuel tank (ALL) |
| MB400511 | SCREW, FUEL TANK - Washer assembled,6x16 | Fuel tank (ALL) |
| MB408480 | GAUGE UNIT, FUEL TANK | Fuel tank (ALL) |
| MF240025 | BOLT, ENG OIL PUMP INR - Washer assembled,6x16 | Fuel tank (ALL) |
| MF243649 | BOLT, FLYWHEEL HOUSING - Washer assembled,8x16 | Fuel tank (ALL) |
| MF430006 | NUT - 10 | Fuel tank (ALL) |
| MF450006 | WASHER, CYLINDER HEAD - Plain,10 | Fuel tank (ALL) |
| MF450406 | WASHER - Spring,10 | Fuel tank (ALL) |
| MS350109 | SCREW, FUEL LINE - Washer assembled,6x16 | Fuel tank (ALL) |
| MS603111 | TUBE, FUEL RETURN LINE - Rubber,8x2000 | Fuel tank (ALL) |
| MS605158 | HOSE, EMISSION SOLENOID VALVE - 6x2000 | Fuel tank (ALL) |
| MS642596 | HOSE, FUEL TANK - 6x2000 | Fuel tank (ALL) |
| MS660031 | CLAMP, FUEL TANK - 52 | Fuel tank (ALL) |
| MS660163 | CLIP, ROCKER COVER - D=11.6 | Fuel tank (ALL) |
| MS660164 | CLAMP, T/M OIL COOLER LINE - D=13.1 | Fuel tank (ALL) |
| MS660169 | CLIP, FUEL TANK - D=10 | Fuel tank (ALL) |
| MS660173 | CLIP, FUEL TANK - D=18.5 | Fuel tank (ALL) |
| MU340019 | SCREW, FUEL TANK - Washer assembled,6x16 | Fuel tank (ALL) |
| MU340031 | SCREW, FUEL TANK - Washer assembled,6x16 | Fuel tank (ALL) |
