D02W

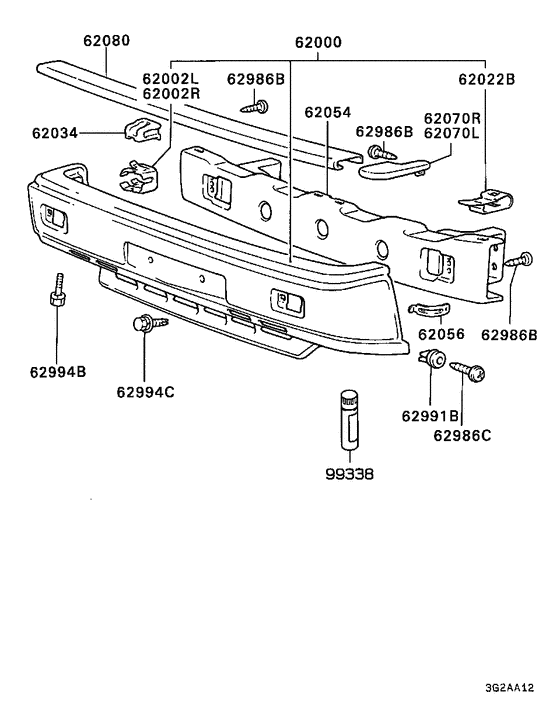

Front bumper & support (ALL) 13
| # | OEM | Part name |
|---|---|---|
| 62000 | MB283062 | FACE KIT, FR BUMPER |
| 62000 | MB283063 | FACE KIT, FR BUMPER |
| 62002 | MB271997 | BRACKET, FR BUMPER SIDE, LH |
| 62002 | MB271998 | BRACKET, FR BUMPER SIDE, RH |
| 62022 | MB271319 | CLIP, FR BUMPER |
| 62034 | MB182609 | INSERT, FR BUMPER |
| 62054 | MB271357 | REINFORCEMENT, FR BUMPER |
| 62056 | MB325620 | RETAINER, FR BUMPER SIDE |
| 62986 | MF453030 | SCREW, ENG CONTROL EQUIP - Tapping,5x10 |
| 62986 | MS450161 | SCREW, FR BUMPER - Tapping,6x20 |
| 62991 | MB062240 | GROMMET, FR BUMPER - Screw,7 |
| 62994 | MS240156 | BOLT - Washer assembled,6x20 |
| 62994 | MS240126 | BOLT, RADIATOR CONDENSER TANK - Washer assembled,8x25 |
| OEM | Part name | Category |
|---|---|---|
| MB062240 | GROMMET, FR BUMPER - Screw,7 | Front bumper & support (ALL) |
| MB182609 | INSERT, FR BUMPER | Front bumper & support (ALL) |
| MB271319 | CLIP, FR BUMPER | Front bumper & support (ALL) |
| MB271357 | REINFORCEMENT, FR BUMPER | Front bumper & support (ALL) |
| MB271997 | BRACKET, FR BUMPER SIDE, LH | Front bumper & support (ALL) |
| MB271998 | BRACKET, FR BUMPER SIDE, RH | Front bumper & support (ALL) |
| MB283062 | FACE KIT, FR BUMPER | Front bumper & support (ALL) |
| MB283063 | FACE KIT, FR BUMPER | Front bumper & support (ALL) |
| MB325620 | RETAINER, FR BUMPER SIDE | Front bumper & support (ALL) |
| MF453030 | SCREW, ENG CONTROL EQUIP - Tapping,5x10 | Front bumper & support (ALL) |
| MS240126 | BOLT, RADIATOR CONDENSER TANK - Washer assembled,8x25 | Front bumper & support (ALL) |
| MS240156 | BOLT - Washer assembled,6x20 | Front bumper & support (ALL) |
| MS450161 | SCREW, FR BUMPER - Tapping,6x20 | Front bumper & support (ALL) |
