CY8A

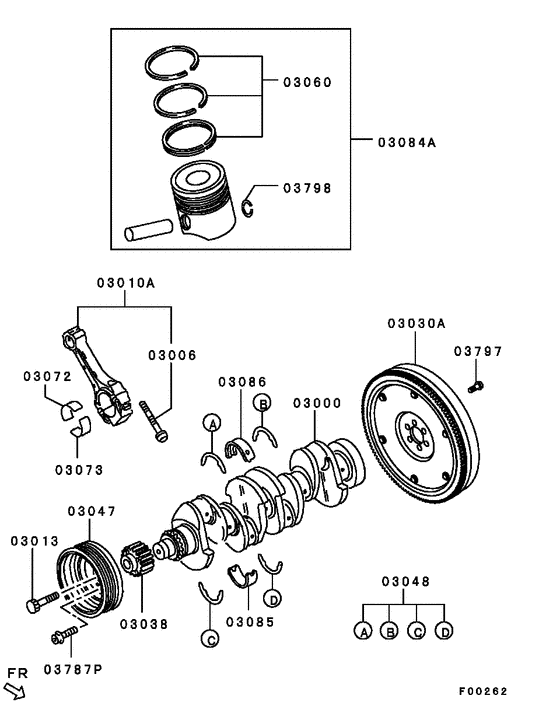

Piston & crankshaft (ALL) 16
| # | OEM | Part name |
|---|---|---|
| 3000 | MN980271 | CRANKSHAFT |
| 3006 | MN980055 | BOLT,CONNROD |
| 3010 | MN980054 | CONNECTING ROD ASSY |
| 3013 | MN980048 | CENTER BOLT,CRANKSHAFT PULLEY |
| 3038 | MN980268 | SPROCKET,CRANKSHAFT CAMSHAFT DRIVE |
| 3047 | MN980049 | PULLEY,CRANKSHAFT |
| 3048 | MN980051 | THRUST BEARING SET,CRANKSHAFT |
| 3060 | MN980060 | RING SET,PISTON |
| 3072 | MN980056 | BEARING,CONNROD,UPR |
| 3073 | MN980057 | BEARING,CONNROD,LWR |
| 3084 | MN980058 | PISTON & RING ASSY |
| 3085 | MN980053 | BEARING,CRANKSHAFT,LWR |
| 3086 | MN980052 | BEARING,CRANKSHAFT,UPR |
| 3787 | MN980289 | BOLT,INLET MANIFOLD |
| 3797 | MN168195 | BOLT,FLYWHEEL |
| 3798 | MN980059 | SNAP RING,PISTON |
| OEM | Part name | Category |
|---|---|---|
| MN168195 | BOLT,FLYWHEEL | Piston & crankshaft (ALL) |
| MN980048 | CENTER BOLT,CRANKSHAFT PULLEY | Piston & crankshaft (ALL) |
| MN980049 | PULLEY,CRANKSHAFT | Piston & crankshaft (ALL) |
| MN980051 | THRUST BEARING SET,CRANKSHAFT | Piston & crankshaft (ALL) |
| MN980052 | BEARING,CRANKSHAFT,UPR | Piston & crankshaft (ALL) |
| MN980053 | BEARING,CRANKSHAFT,LWR | Piston & crankshaft (ALL) |
| MN980054 | CONNECTING ROD ASSY | Piston & crankshaft (ALL) |
| MN980055 | BOLT,CONNROD | Piston & crankshaft (ALL) |
| MN980056 | BEARING,CONNROD,UPR | Piston & crankshaft (ALL) |
| MN980057 | BEARING,CONNROD,LWR | Piston & crankshaft (ALL) |
| MN980058 | PISTON & RING ASSY | Piston & crankshaft (ALL) |
| MN980059 | SNAP RING,PISTON | Piston & crankshaft (ALL) |
| MN980060 | RING SET,PISTON | Piston & crankshaft (ALL) |
| MN980268 | SPROCKET,CRANKSHAFT CAMSHAFT DRIVE | Piston & crankshaft (ALL) |
| MN980271 | CRANKSHAFT | Piston & crankshaft (ALL) |
| MN980289 | BOLT,INLET MANIFOLD | Piston & crankshaft (ALL) |
