CY2A

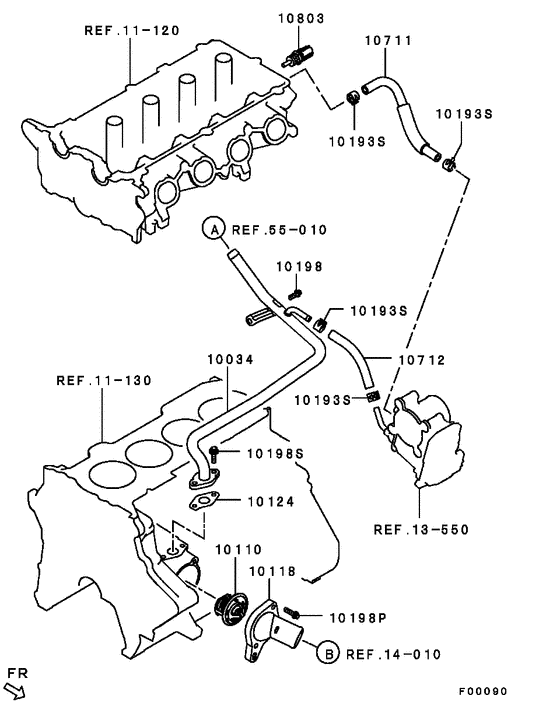

Water pipe & thermostat (ALL) 12
| # | OEM | Part name |
|---|---|---|
| 10034 | MN195748 | PIPE, WATER PUMP INLET |
| 10110 | MN176384 | THERMOSTAT KIT - 82 |
| 10118 | MN155852 | FITTING, COOLING WATER INLET HOSE |
| 10124 | MN195746 | GASKET, COOLING WATER OUTLET HOSE FITTING |
| 10193 | MU010441 | CLIP, COOLING WATER LINE - 13.7-15.8 |
| 10198 | MU010115 | BOLT, COOLING WATER LINE - M6x12 |
| 10198 | MU010008 | BOLT, COOLING WATER LINE - M6x25 |
| 10198 | MU010117 | BOLT, COOLING WATER LINE - M6x20 |
| 10711 | MR994848 | HOSE, THROTTLE BODY WATER FEED |
| 10711 | MN195841 | HOSE, THROTTLE BODY WATER FEED |
| 10712 | MR994849 | HOSE, THROTTLE BODY WATER RETURN - 7x120 |
| 10803 | MR985034 | SENSOR UNIT, WATER TEMPERATURE |
| OEM | Part name | Category |
|---|---|---|
| MN155852 | FITTING, COOLING WATER INLET HOSE | Water pipe & thermostat (ALL) |
| MN176384 | THERMOSTAT KIT - 82 | Water pipe & thermostat (ALL) |
| MN195746 | GASKET, COOLING WATER OUTLET HOSE FITTING | Water pipe & thermostat (ALL) |
| MN195748 | PIPE, WATER PUMP INLET | Water pipe & thermostat (ALL) |
| MN195841 | HOSE, THROTTLE BODY WATER FEED | Water pipe & thermostat (ALL) |
| MR985034 | SENSOR UNIT, WATER TEMPERATURE | Water pipe & thermostat (ALL) |
| MR994848 | HOSE, THROTTLE BODY WATER FEED | Water pipe & thermostat (ALL) |
| MR994849 | HOSE, THROTTLE BODY WATER RETURN - 7x120 | Water pipe & thermostat (ALL) |
| MU010008 | BOLT, COOLING WATER LINE - M6x25 | Water pipe & thermostat (ALL) |
| MU010115 | BOLT, COOLING WATER LINE - M6x12 | Water pipe & thermostat (ALL) |
| MU010117 | BOLT, COOLING WATER LINE - M6x20 | Water pipe & thermostat (ALL) |
| MU010441 | CLIP, COOLING WATER LINE - 13.7-15.8 | Water pipe & thermostat (ALL) |
