Search › Model › CY10
CY10

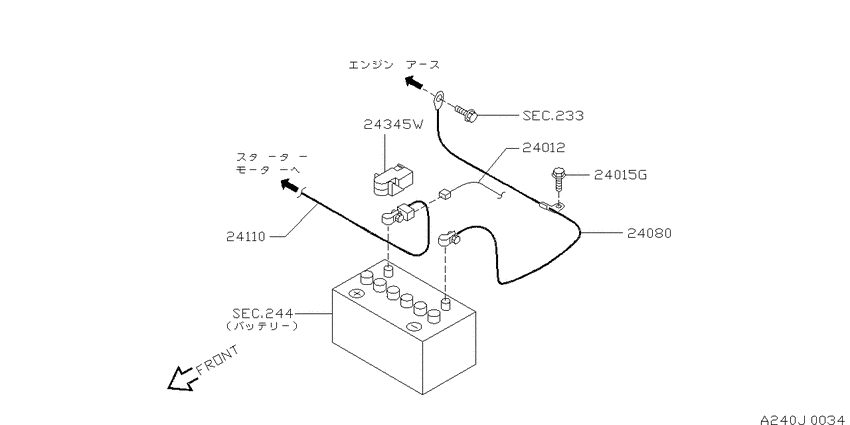

Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) 8
| # | OEM | Part name |
|---|---|---|
| 24012 | 24012-4H103 | Harness Assy-Engine Room |
| 24012 | 24012-4H112 | Harness Assy-Engine Room |
| 24012 | 24012-WC102 | Harness Assy-Engine Room |
| 24012 | 24012-WC103 | Harness Assy-Engine Room |
| 24012 | 01466-00371 | SCREW |
| 24080 | 24080-50Y01 | Cable Assy-Battery Earth |
| 24110 | 24110-95R21 | Cable Assy-Battery To Starter Motor |
| 24110 | 24110-95R23 | Cable Assy-Battery To Starter Motor |
| OEM | Part name | Category |
|---|---|---|
| 01466-00371 | SCREW | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24012-4H103 | Harness Assy-Engine Room | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24012-4H112 | Harness Assy-Engine Room | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24012-WC102 | Harness Assy-Engine Room | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24012-WC103 | Harness Assy-Engine Room | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24080-50Y01 | Cable Assy-Battery Earth | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24110-95R21 | Cable Assy-Battery To Starter Motor | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
| 24110-95R23 | Cable Assy-Battery To Starter Motor | Wiring (1996-05-01 ~ ; バッテリー 回り; W/2D) |
