CY10

Nissan WINGROAD-AD-EXPERT · 1990 · 2,570 parts · 200 categories

2,570 items

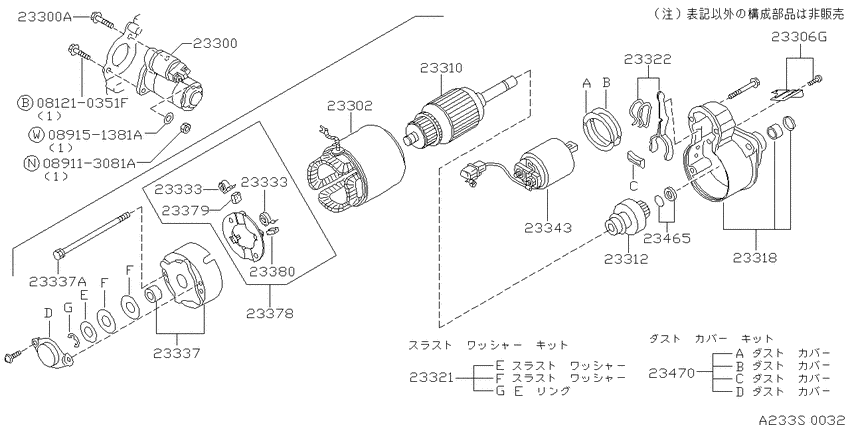

Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4) 40

#	OEM	Part name
23300	23300-0M301	Motor Assy-Starter
23300	23300-73Y01	Motor Assy-Starter
23300	23300-73Y10	Motor Assy-Starter
23300	01121-01441	BOLT
23302	23302-0M300	Yoke Assy
23302	23302-41B60	Yoke Assy
23302	23302-73Y10	Yoke Assy
23306	23347-73Y00	Plate-Connecting
23306	23347-81N10	Plate-Connecting
23310	23310-0M300	Armature Assy
23310	23310-41B60	Armature Assy
23310	23310-73Y10	Armature Assy
23312	23312-50Y01	Pinion Assy
23312	23312-73Y00	Pinion Assy
23318	23318-0M200	Case Assy-Gear
23318	23318-73Y10	Case Assy-Gear
23318	23318-77A04	Case Assy-Gear
23321	23321-N3300	Washer Set-Thrust
23321	23460-M8011	Washer Set-Thrust
23322	23322-06E10	LEVER SET-SHIFT
23322	23322-77A04	Lever Set-Shift
23333	23333-50Y02	Spring-Brush
23333	23333-53J00	Spring-Brush
23337	23337-0M300	Cover Assy-Rear
23337	23337-73Y00	Cover Assy-Rear
23337	23340-M4900	Bolt-Through
23337	23340-M8011	Bolt-Through
23343	23343-73Y10	Switch Assy-Magnetic
23343	23343-0M30A	Switch Assy-Magnetic
23378	23378-0M300	Holder Assy-Brush
23378	23378-41B00	Holder Assy-Brush
23378	23378-53J10	Holder Assy-Brush
23379	23379-0M300	Brush-Minus
23379	23379-53J00	Brush-Minus
23380	23380-0M300	Brush-Plus
23380	23380-41B00	Brush-Plus
23465	23465-N3300	Stopper Set-Pinion
23470	23470-M8201	Cover Set-Dust
23470	23470-0M300	Cover-Dust
89113081	08911-3081A	Nut-Wiper Arm

OEM	Part name	Category
01121-01441	BOLT	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
08911-3081A	Nut-Wiper Arm	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23300-0M301	Motor Assy-Starter	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23300-73Y01	Motor Assy-Starter	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23300-73Y10	Motor Assy-Starter	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23302-0M300	Yoke Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23302-41B60	Yoke Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23302-73Y10	Yoke Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23310-0M300	Armature Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23310-41B60	Armature Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23310-73Y10	Armature Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23312-50Y01	Pinion Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23312-73Y00	Pinion Assy	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23318-0M200	Case Assy-Gear	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23318-73Y10	Case Assy-Gear	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23318-77A04	Case Assy-Gear	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23321-N3300	Washer Set-Thrust	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23322-06E10	LEVER SET-SHIFT	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23322-77A04	Lever Set-Shift	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23333-50Y02	Spring-Brush	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23333-53J00	Spring-Brush	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23337-0M300	Cover Assy-Rear	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23337-73Y00	Cover Assy-Rear	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23340-M4900	Bolt-Through	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23340-M8011	Bolt-Through	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23343-0M30A	Switch Assy-Magnetic	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23343-73Y10	Switch Assy-Magnetic	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23347-73Y00	Plate-Connecting	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23347-81N10	Plate-Connecting	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23378-0M300	Holder Assy-Brush	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23378-41B00	Holder Assy-Brush	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23378-53J10	Holder Assy-Brush	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23379-0M300	Brush-Minus	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23379-53J00	Brush-Minus	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23380-0M300	Brush-Plus	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23380-41B00	Brush-Plus	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23460-M8011	Washer Set-Thrust	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23465-N3300	Stopper Set-Pinion	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23470-0M300	Cover-Dust	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
23470-M8201	Cover Set-Dust	Starter motor (1997-05-01 ~ ; 日立; "W/2D.GA15DE +W/4D.2WD.GA15DE.AT.F4)
