Search › Model › CY10

CY10

Nissan WINGROAD-AD-EXPERT · 1990 · 2,570 parts · 200 categories

2,570 items

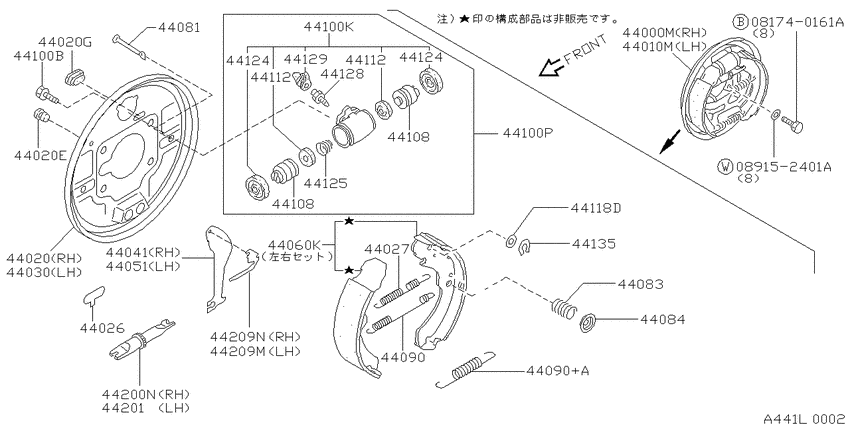

Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; G*W/2D.GA15DE +*W/4D.2WD.GA15DE.LE.AT.F4 +*2WD.GA15DE.LE.MT.F5 +*CD20.LE) 42

#	OEM	Part name
44000	44000-73R10	Brake Assy-Drum, Rear Rh
44000	44000-86R10	Brake Assy-Drum, Rear Rh
44000	44000-90R00	Brake Assy-Drum, Rear Rh
44010	44010-73R10	Brake Assy-Drum, Rear Lh
44010	44010-86R10	Brake Assy-Drum, Rear Lh
44010	44010-90R00	Brake Assy-Drum, Rear Lh
44020	44020-32R10	Plate Assy-Back, Rear Brake Rh
44020	44020-86R10	Plate Assy-Back, Rear Brake Rh
44020	41098-01J10	Plug
44026	44133-0C010	Spacer-Adjusting
44030	44030-32R10	Plate Assy-Back, Rear Brake Lh
44030	44030-86R10	Plate Assy-Back, Rear Brake Lh
44041	44041-0C010	Lever-Toggle, Rh
44041	44041-5V500	Lever-Toggle, Rh
44051	44051-0C010	Lever-Toggle, Lh
44051	44051-5V500	Lever-Toggle, Lh
44060	44060-70N25	Shoe Set-Rear Brake
44060	44060-86R25	Shoe Set-Rear Brake
44081	44081-25Y10	Pin-Anti Shoe Rattle
44081	44081-U9201	Pin-Anti Shoe Rattle
44083	44083-56E10	SPRING-ANTI SHOE RATTLE
44084	44084-U9200	Retainer-Spring, Anti Shoe Rattle
44090	44091-47L10	Spring-Return, Rear Brake Shoe
44100	44100-G5122	Cylinder Assy-Rear Wheel
44108	44108-2U600	Piston-Cylinder
44108	44108-D0106	Piston-Cylinder
44108	44108-M4912	Piston-Cylinder
44118	44085-01A00	Washer-Lock
44124	44124-17C10	Cover-Dust
44124	44124-D5500	Cover-Dust
44125	44125-M7010	Spring
44125	44125-U9200	Spring
44128	44128-60R00	Screw-Bleeder
44128	44128-72B10	Screw-Bleeder
44129	41129-60R00	Cap-Bleeder Screw
44129	44129-L0700	Cap-Bleeder Screw
44135	44082-U8700	Ring-Snap
44135	44222-M4900	Ring-Retaining
44200	44200-56E11	ADJUSTER ASSY-REAR BRAKE,RH
44201	44201-0E610	Adjuster Assy-Rear Brake, Lh
44209	44211-0C010	Lever Assy-Adjuster, Lh
81740161	08174-0161A	Bolt-hexagon

OEM	Part name	Category
08174-0161A	Bolt-hexagon	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
41098-01J10	Plug	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
41129-60R00	Cap-Bleeder Screw	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44000-73R10	Brake Assy-Drum, Rear Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44000-86R10	Brake Assy-Drum, Rear Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44000-90R00	Brake Assy-Drum, Rear Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44010-73R10	Brake Assy-Drum, Rear Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44010-86R10	Brake Assy-Drum, Rear Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44010-90R00	Brake Assy-Drum, Rear Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44020-32R10	Plate Assy-Back, Rear Brake Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44020-86R10	Plate Assy-Back, Rear Brake Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44030-32R10	Plate Assy-Back, Rear Brake Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44030-86R10	Plate Assy-Back, Rear Brake Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44041-0C010	Lever-Toggle, Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44041-5V500	Lever-Toggle, Rh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44051-0C010	Lever-Toggle, Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44051-5V500	Lever-Toggle, Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44060-70N25	Shoe Set-Rear Brake	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44060-86R25	Shoe Set-Rear Brake	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44081-25Y10	Pin-Anti Shoe Rattle	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44081-U9201	Pin-Anti Shoe Rattle	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44082-U8700	Ring-Snap	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44083-56E10	SPRING-ANTI SHOE RATTLE	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44084-U9200	Retainer-Spring, Anti Shoe Rattle	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44085-01A00	Washer-Lock	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44091-47L10	Spring-Return, Rear Brake Shoe	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44100-G5122	Cylinder Assy-Rear Wheel	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44108-2U600	Piston-Cylinder	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44108-D0106	Piston-Cylinder	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44108-M4912	Piston-Cylinder	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44124-17C10	Cover-Dust	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44124-D5500	Cover-Dust	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44125-M7010	Spring	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44125-U9200	Spring	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44128-60R00	Screw-Bleeder	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44128-72B10	Screw-Bleeder	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44129-L0700	Cap-Bleeder Screw	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44133-0C010	Spacer-Adjusting	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44200-56E11	ADJUSTER ASSY-REAR BRAKE,RH	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44201-0E610	Adjuster Assy-Rear Brake, Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44211-0C010	Lever Assy-Adjuster, Lh	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
44222-M4900	Ring-Retaining	Rear brake (1997-05-01 ~ 1997-06-01; ｳｲﾝｸﾞﾛ-ﾄﾞ/AD MAX ｱﾝﾁｽｷｯﾄﾞ付き; GW/2D.GA15DE +W/4D.2WD.GA15DE.LE.AT.F4 +2WD.GA15DE.LE.MT.F5 +CD20.LE)
