Search › Model › CY10

CY10

Nissan WINGROAD-AD-EXPERT · 1990 · 2,570 parts · 200 categories

2,570 items

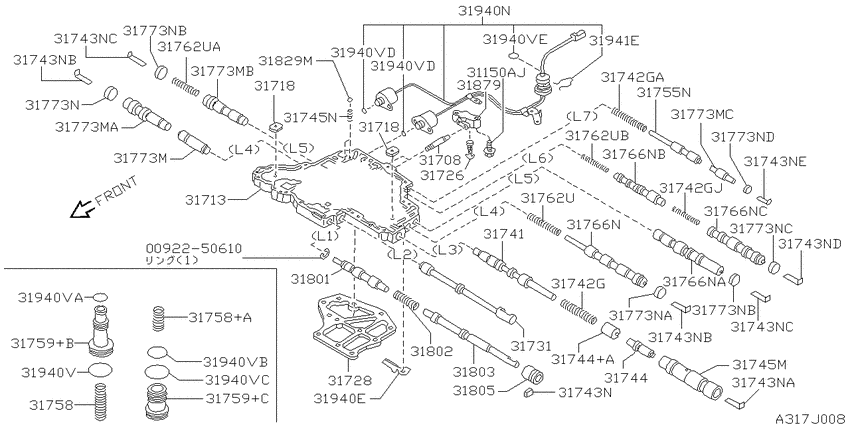

Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4) 71

#	OEM	Part name
31150	01121-03701	BOLT
31708	31708-31X00	Tube-Connector, Control Valve
31713	31713-31X17	Body-Lower, Control Valve
31718	31718-01X00	Plate-Support, Accumulator
31726	31726-31X00	Filter Assy-Oil, Auto Transmission
31731	31731-31X00	Valve-Manual
31731	31731-31X02	Valve-Manual
31741	31741-31X02	Valve-Pressure Regulator
31742	31742-31X00	Spring-Pressure Regulator
31742	31742-31X60	Spring-Valve
31742	31742-31X64	Spring-Valve
31742	31742-31X03	Spring-Kick Down Modifier
31742	31742-31X63	Spring-Valve
31742	31742-31X70	Spring-Valve
31742	31742-31X06	Spring-Relief Valve
31742	31742-31X18	Spring-Valve
31742	31742-31X08	Spring-Lock Up Control
31743	31743-31X00	Plate-Retainer
31743	31743-31X01	Plate-Retainer
31743	31743-31X02	Plate-Retainer
31743	31743-80X07	Plate-Retainer
31743	31743-31X10	Plate-Retainer
31743	31743-31X05	Plate-Retainer
31744	31744-31X07	Plug-Pressure Regulator
31744	31744-31X05	Plug-Pressure Regulator
31745	31745-31X04	Sleeve-Pressure Regulator
31745	31872-31X00	Spring-Relief Valve
31755	31772-31X00	Valve-Overrun Clutch Control
31755	31772-31X13	Valve-Spool
31755	31772-41X01	Valve-Spool
31755	31772-31X06	Valve-Accumulator Control
31755	31772-21X00	Valve-Spool
31755	31772-31X07	Valve-1St Reducing
31755	31772-31X20	Valve-Spool
31755	31772-31X03	Valve-Throttle Modulator
31755	31772-31X19	Valve-Spool
31758	31605-31X09	Spring-Servo
31758	31605-31X15	Spring-Servo
31759	31675-31X01	Piston-Accumulator Servo
31759	31675-31X07	Piston-accumulator servo
31759	31675-31X02	Piston-Accumulator Servo
31762	31762-31X13	Spring-Shift Valve
31762	31762-31X01	Spring-2Nd & 3Rd Shift
31766	31766-31X21	Valve-Shift
31766	31766-31X24	Valve-Shift
31766	31766-31X60	Valve-Shift
31766	31766-31X03	Valve-1St & 2Nd Shift
31773	31773-31X04	Plug
31773	31773-31X05	Plug
31773	31773-31X02	Plug
31773	31773-31X03	Plug
31773	31845-31X00	Plug
31773	31845-31X01	Plug
31773	31845-27X62	Plug
31773	31845-31X03	Plug
31773	31845-31X04	Plug-Pressure Modifier
31773	31845-31X05	Plug
31773	31845-27X61	Plug-Checking Ball
31773	31845-31X07	Plug
31773	31845-31X08	Plug
31773	31845-31X14	Plug
31801	31801-31X00	Valve-Throttle Vacuum
31802	31802-31X07	Spring-Throttle Relief
31803	31803-31X00	Valve-Detent
31805	31805-31X00	Plug-Throttle
31829	32829-26760	Ball-Check
31879	31879-31X00	Connector
31940	31707-31X00	Clip-Harness
31940	31526-41X02	Seal-O Ring
31940	31526-41X03	Seal-O Ring
31940	31526-31X08	Seal-O Ring

OEM	Part name	Category
01121-03701	BOLT	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31526-31X08	Seal-O Ring	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31526-41X02	Seal-O Ring	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31526-41X03	Seal-O Ring	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31605-31X09	Spring-Servo	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31605-31X15	Spring-Servo	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31675-31X01	Piston-Accumulator Servo	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31675-31X02	Piston-Accumulator Servo	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31675-31X07	Piston-accumulator servo	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31707-31X00	Clip-Harness	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31708-31X00	Tube-Connector, Control Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31713-31X17	Body-Lower, Control Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31718-01X00	Plate-Support, Accumulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31726-31X00	Filter Assy-Oil, Auto Transmission	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31731-31X00	Valve-Manual	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31731-31X02	Valve-Manual	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31741-31X02	Valve-Pressure Regulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X00	Spring-Pressure Regulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X03	Spring-Kick Down Modifier	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X06	Spring-Relief Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X08	Spring-Lock Up Control	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X18	Spring-Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X60	Spring-Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X63	Spring-Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X64	Spring-Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31742-31X70	Spring-Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-31X00	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-31X01	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-31X02	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-31X05	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-31X10	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31743-80X07	Plate-Retainer	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31744-31X05	Plug-Pressure Regulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31744-31X07	Plug-Pressure Regulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31745-31X04	Sleeve-Pressure Regulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31762-31X01	Spring-2Nd & 3Rd Shift	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31762-31X13	Spring-Shift Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31766-31X03	Valve-1St & 2Nd Shift	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31766-31X21	Valve-Shift	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31766-31X24	Valve-Shift	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31766-31X60	Valve-Shift	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-21X00	Valve-Spool	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X00	Valve-Overrun Clutch Control	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X03	Valve-Throttle Modulator	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X06	Valve-Accumulator Control	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X07	Valve-1St Reducing	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X13	Valve-Spool	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X19	Valve-Spool	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-31X20	Valve-Spool	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31772-41X01	Valve-Spool	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31773-31X02	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31773-31X03	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31773-31X04	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31773-31X05	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31801-31X00	Valve-Throttle Vacuum	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31802-31X07	Spring-Throttle Relief	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31803-31X00	Valve-Detent	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31805-31X00	Plug-Throttle	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-27X61	Plug-Checking Ball	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-27X62	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X00	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X01	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X03	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X04	Plug-Pressure Modifier	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X05	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X07	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X08	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31845-31X14	Plug	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31872-31X00	Spring-Relief Valve	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
31879-31X00	Connector	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
32829-26760	Ball-Check	Control valve (atm) (1996-05-01 ~ ; "ウイングロ-ド／AD MAX ロア; AT.F4)
