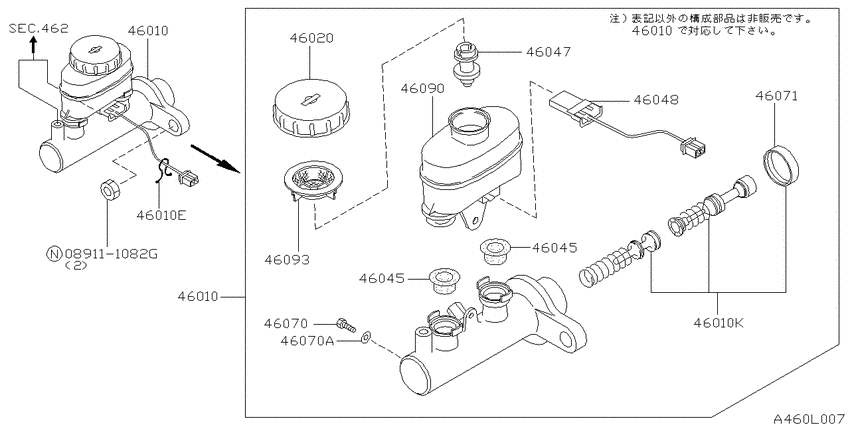

| 46010-40Y20 |
Cylinder Assy-Brake Master |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46010-4H122 |
Cylinder Assy-Brake Master |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46010-62C05 |
Cylinder Assy-Brake Master |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46010-62C60 |
Cylinder Assy-Brake Master |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46011-1E326 |
Piston Kit-Tandem Brake Master Cylinder |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46011-58Y27 |
Piston Kit-Tandem Brake Master Cylinder |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46011-58Y29 |
Piston Kit-Tandem Brake Master Cylinder |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46020-64J21 |
Cap Assy-Oil Reservoir Tank |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46032-57Y20 |
Screw-Stopper |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46037-5V200 |
Pin-Spring |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46047-64J01 |
Float-Reservoir Tank |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46047-64J21 |
Float-Reservoir Tank |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46048-50Y21 |
Indicator Assy-Level |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46048-58Y02 |
Indicator Assy-Level |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46079-1P220 |
Packing-Stopper Screw |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46079-W1300 |
Packing-Stopper Screw |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46082-01A1A |
Ring-Snap |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46082-04B00 |
Ring-Snap |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46082-5V200 |
Ring-Snap |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46091-40Y20 |
Tank-Oil Reservoir |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46091-64J01 |
Tank-Oil Reservoir |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46091-64J62 |
Tank-Oil Reservoir |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46093-5V200 |
Strainer-Brake Oil |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
| 46093-64J62 |
Strainer-Brake Oil |
Brake master cylinder (1997-06-01 ~ ; ｳｲﾝｸﾞﾛｰﾄﾞ/AD MAX ｱﾝﾁ ｽｷｯﾄﾞ付き; ?*W/2D.GA15DE +*W/4D.GA15DE.LE.AT.F4 +*GA15DE.LE.MT.F5 +*CD20.LE) |
