Search › Model › CXR21

CXR21

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,427 parts · 242 categories

6,427 items

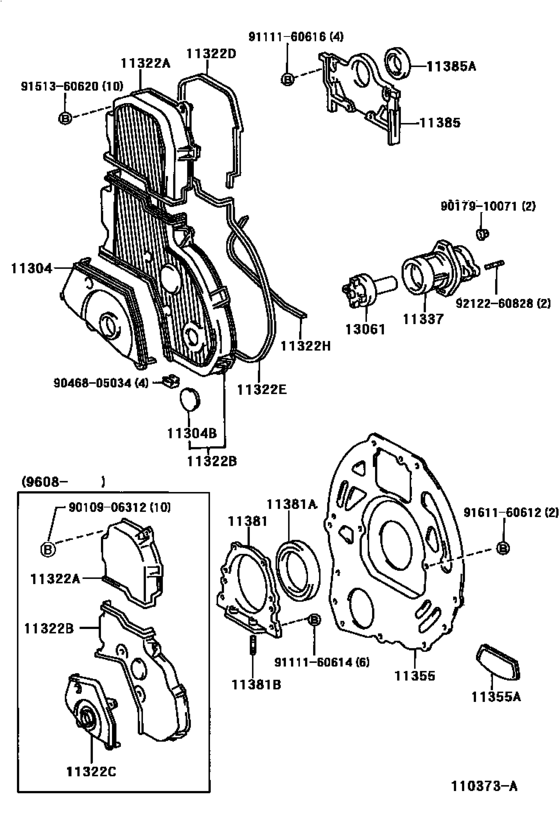

Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#) 37

#	OEM	Part name
11304	11304-64010	Cover, Timing Chain Or Belt, No.2
11304	90950-01357	Plug, Semi Circular(For Chain Cover No.2)
11322	11302-64010	Cover, Timing Belt, No.1
11322	11321-64050	Cover, Timing Belt, No.1
11322	11303-64030	Cover, Timing Belt, No.2
11322	11322-64050	Cover, Timing Belt, No.2
11322	11323-64040	Cover, Timing Belt, No.3
11322	11328-64050	Gasket, Timing Belt Cover, No.1
11322	11328-64060	Gasket, Timing Belt Cover, No.1
11322	11329-64040	Gasket, Timing Belt Cover, No.2
11322	11329-64050	Gasket, Timing Belt Cover, No.2
11322	11319-64010	Gasket, Timing Belt Cover, No.3
11322	11319-64020	Gasket, Timing Belt Cover, No.3
11337	11337-64020	Housing, Injection Pump Drive Shaft Bearing
11355	11355-64080	Plate, Rear End
11355	90950-01738	Plug, Hole(For Rear End Plate)
11381	11381-64012	Retainer, Engine Rear Oil Seal
11381	11381-64020	Retainer, Engine Rear Oil Seal
11381	90311-90008	Seal, Engine Rear Oil
11381	90116-06134	Bolt, Stud(For Timing Gear Cover)
11385	11382-64020	Retainer, Camshaft Oil Seal
11385	90311-38044	Seal, Oil(For Camshaft)
11385	90311-38081	Seal, Oil(For Camshaft)
11385	90311-38061	Seal, Oil(For Camshaft)
13061	13061-64010	Shaft Sub-Assy, Injection Pump Drive
9010906312	90109-06312	New Genuine Part
9017910071	90179-10071	NUT
9046805034	90468-05034	Timing cover clip
9111160614	91111-60614	Bolt(For Transaxle Case Receiver)
9111160614	91611-B0616	Bolt(For Transaxle Case Receiver)
9111160616	91111-60616	Bolt(For Oil Receiver Pipe)
9111160616	91611-60618	Bolt(For Oil Receiver Pipe)
9151360620	91513-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151360620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9212260828	92122-60828	New Genuine Part

OEM	Part name	Category
11302-64010	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11303-64030	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11304-64010	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11319-64010	Gasket, Timing Belt Cover, No.3	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11319-64020	Gasket, Timing Belt Cover, No.3	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11321-64050	Cover, Timing Belt, No.1	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11322-64050	Cover, Timing Belt, No.2	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11323-64040	Cover, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11328-64050	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11328-64060	Gasket, Timing Belt Cover, No.1	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11329-64040	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11329-64050	Gasket, Timing Belt Cover, No.2	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11337-64020	Housing, Injection Pump Drive Shaft Bearing	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11355-64080	Plate, Rear End	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11381-64012	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11381-64020	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
11382-64020	Retainer, Camshaft Oil Seal	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
13061-64010	Shaft Sub-Assy, Injection Pump Drive	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90109-06312	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90116-06134	Bolt, Stud(For Timing Gear Cover)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90179-10071	NUT	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90311-38044	Seal, Oil(For Camshaft)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90311-38061	Seal, Oil(For Camshaft)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90311-38081	Seal, Oil(For Camshaft)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90311-90008	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90468-05034	Timing cover clip	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90950-01357	Plug, Semi Circular(For Chain Cover No.2)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
90950-01738	Plug, Hole(For Rear End Plate)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91111-60614	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91111-60616	Bolt(For Oil Receiver Pipe)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91513-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91611-60618	Bolt(For Oil Receiver Pipe)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91611-B0616	Bolt(For Transaxle Case Receiver)	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
91611-G0612	Bolt	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
92122-60828	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.1992 - ] (9201- )3CT#)
