Search › Model › CXR11
CXR11

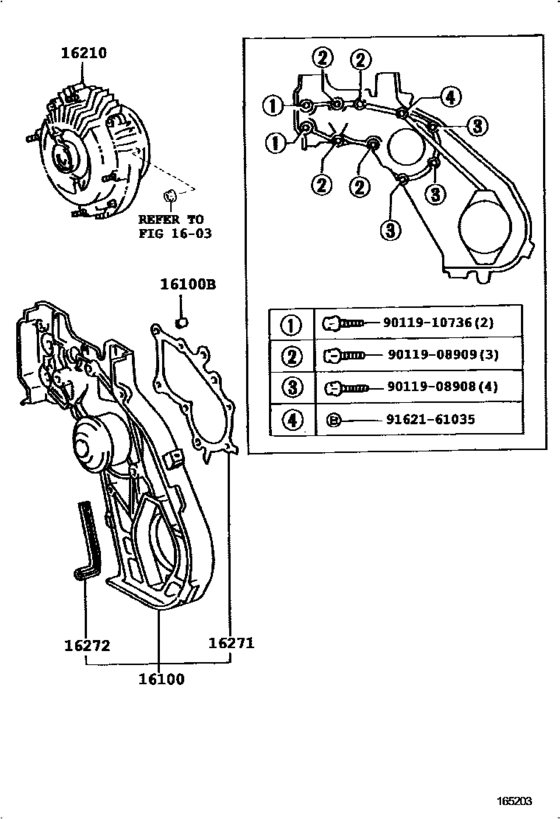

Water Pump ([01.1992 - ] (9201- )3CT#) 9
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-69365 | Pump Assy, Engine Water |
| 16100 | 90253-11021 | Pin, Ring |
| 16210 | 16210-64030 | Coupling Assy, Fluid |
| 16271 | 16271-64050 | Gasket, Water Pump |
| 16272 | 16119-64020 | Gasket, Water Pump, No.2 |
| 9011908908 | 90119-08908 | BOLT WWASHER |
| 9011908909 | 90119-08909 | New Genuine Part |
| 9011910736 | 90119-10736 | BOLT WWASHER |
| 9162161035 | 91621-61035 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 16100-69365 | Pump Assy, Engine Water | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 16119-64020 | Gasket, Water Pump, No.2 | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 16210-64030 | Coupling Assy, Fluid | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 16271-64050 | Gasket, Water Pump | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 90119-08908 | BOLT WWASHER | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 90119-08909 | New Genuine Part | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 90119-10736 | BOLT WWASHER | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 90253-11021 | Pin, Ring | Water Pump ([01.1992 - ] (9201- )3CT#) |
| 91621-61035 | BOLT | Water Pump ([01.1992 - ] (9201- )3CT#) |
