CXR11

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,185 parts · 234 categories
CXR11 ×

← Back to categories

6,185 items

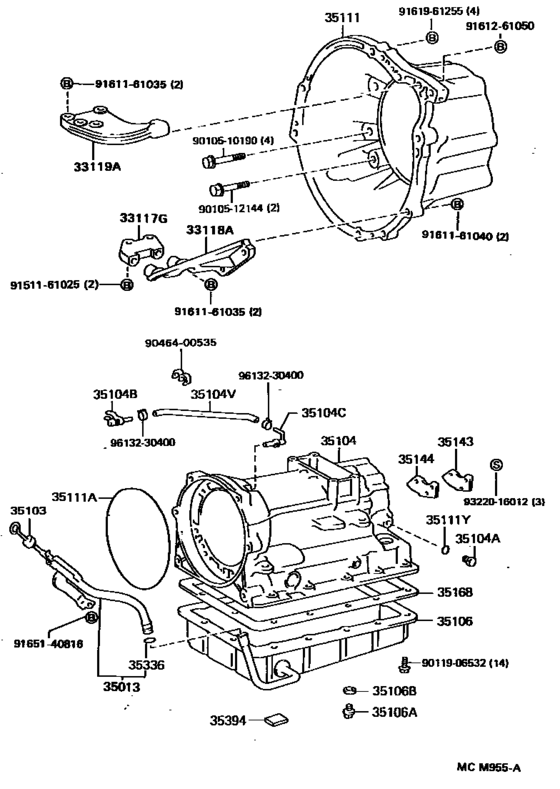

Transmission Case & Oil Pan (Atm) ([01.1992 - 08.1996] A45DE,A45DF (9201-9608)CXR1#,2#..ATM) 42
#OEMPart name
33117 33117-28010 Protector, Manual Transmission Case
33118 33118-28040 Plate, Stiffener, Rh(Mtm)
33119 33119-28040 Plate, Stiffener, Lh(Mtm)
35013 35013-28070 Tube Sub-Assy, Transmission Oil Filler
35013 35013-28071 Tube Sub-Assy, Transmission Oil Filler
35103 35103-28040 Gage Sub-Assy, Transmission Oil Level
35103 35103-28041 Gage Sub-Assy, Transmission Oil Level
35104 35104-28011 Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90930-03099 Plug, Breather, No.1 (Atm)
35104 90930-03098 Plug, Breather, No.1 (Atm)
35104 90445-11096 Hose (For Breather Plug)
35106 35106-28040 Pan Sub-Assy, Automatic Transmission Oil
35106 35106-28010 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10006 Plug (For Transfer Oil Pan)
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35111 35111-28040 Housing, Automatic Transmission
35111 90301-99054 Ring, O (For Automatic Transmission Housing)
35111 90301-06196 O Ring, Transaxle Case, No.1
35143 35143-22010 Cover, Transmission Case, Rear
35144 35144-28010 Gasket, Transmission Case Rear Cover
35168 35168-22011 Gasket, Automatic Transmission Oil Pan
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
9010510190 90105-10190 New Genuine Part
9010512144 90105-12144 New Genuine Part
9011906532 90119-06532 Bolt (For Automatic Transmission Oil Pan)
9011906532 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9046400535 90464-00535 Clamp, Throttle Cable, No.1
9151161025 91511-61025 New Genuine Part
9151161025 91512-G1025 BOLTFLANGE
9161161035 91611-61035 BOLT
9161161035 91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161261050 91612-61050 Bolt(For Transaxle & Engine Setting)
9161961255 91619-61255 Bolt(For Transaxle & Engine Setting)
9165140816 91651-40816 BOLT
9322016012 93220-16012 SCREW
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
