Search › Model › CXR11

CXR11

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 6,185 parts · 234 categories

6,185 items

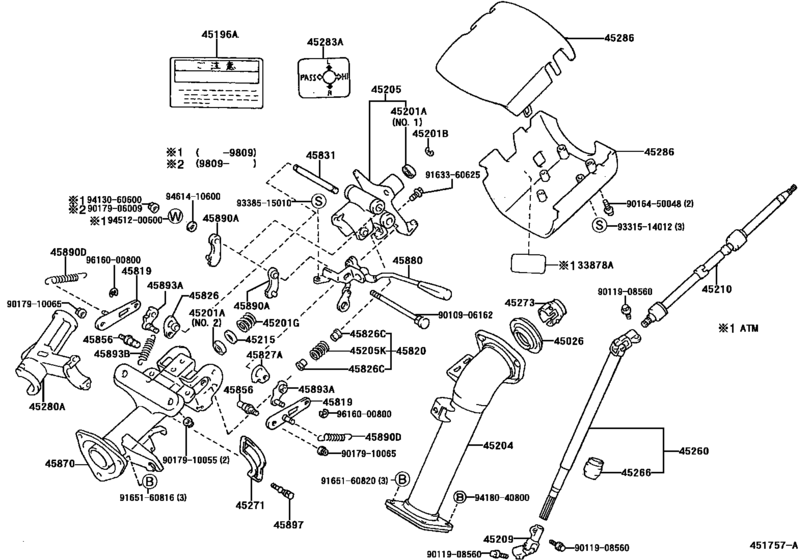

Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- )) 77

#	OEM	Part name
33878	33878-27020	Label, Shift Lock Information, No.2
45026	45026-28010	Cover Sub-Assy, Steering Column Hole, No.2
45196	45196-30010	Label, Steering Shaft Instal Caution
45196	45196-30020	Label, Steering Shaft Instal Caution
45201	90363-18009	Bearing(For Steering Main Shaft)
45201	90363-18010	Bearing(For Steering Main Shaft)
45201	90363-18005	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-40017	Spring, Compression(For Steering Main Shaft)
45204	45204-28071	Tube Assy, Steering Column, Lower
45205	45205-28110	Tube Sub-Assy, Steering Column
45205	45205-28120	Tube Sub-Assy, Steering Column
45205	90504-25002	Spring(For Steering Column Tube)
45209	45209-16010	Yoke Sub-Assy, Steering Sliding
45210	45210-28090	Shaft Assy, Steering Main
45215	45215-12010	Collar, Main Shaft Bearing Thrust
45260	45260-28020	Shaft Assy, Steering Intermediate, No.2
45266	45266-12020	Cover, Steering Intermediate Shaft Dust
45271	45271-12060	Clamp, Steering Column, Upper
45273	45273-28010	Bush, Steering Main Shaft
45280	45280-28190	Bracket Assy, Steering Column, Upper
45283	45283-22010	Plate, Safety Caution
45286	45286-28210-B0	Cover, Steering Column
45286	45286-28210-E2	Cover, Steering Column
45286	45286-28230-B0	Cover, Steering Column
45286	45286-28230-E1	Cover, Steering Column
45286	45287-28230-B0	Cover, Steering Column
45286	45287-28230-E2	Cover, Steering Column
45286	45287-28270-B0	Cover, Steering Column
45286	45287-28270-E1	Cover, Steering Column
45819	45819-22060	Retainer, Tilt Lever
45820	45820-35010	Spring Assy, Tilt Steering Support
45826	45826-22050	Lever, Steering Tilt
45826	90386-06043	Bush(For Steering Column Tube)
45827	45827-22030	Lever, Steering Tilt Sub
45831	45831-22020	Bolt, Tilt Lever Lock, No.1
45856	45856-22010	Bolt, Tilt Steering, No.1
45870	45870-28060	Tube Assy, Steering Column
45880	45880-28011	Lever Assy, Steering Tilt
45890	45890-20110	Pawl Assy, Tilt Steering
45890	45890-22090	Pawl Assy, Tilt Steering
45890	90507-08010	Spring, Tension(For Steering Tilt Lever)
45890	90507-12035	Spring, Tension(For Steering Tilt Lever)
45893	45893-22030	Stopper, Tilt Steering Pawl
45893	45893-22040	Stopper, Tilt Steering Pawl
45893	45893-22050	Stopper, Tilt Steering Pawl
45893	45893-22060	Stopper, Tilt Steering Pawl
45893	45893-22070	Stopper, Tilt Steering Pawl
45893	45893-22080	Stopper, Tilt Steering Pawl
45893	45893-22090	Stopper, Tilt Steering Pawl
45893	45893-22100	Stopper, Tilt Steering Pawl
45893	45893-22110	Stopper, Tilt Steering Pawl
45893	45893-22120	Stopper, Tilt Steering Pawl
45893	90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)
45897	45897-12020	Bolt, Steering Lock Set
9010906162	90109-06162	Bolt(For Steering Tilt Lever)
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9016450048	90164-50048	SCREW
9017906009	90179-06009	Nut (For Transmission Control Cable)
9017906009	90179-06156	Nut (For Transmission Control Cable)
9017910055	90179-10055	NUT
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9163360625	91633-60625	Screw(For Steering Column Tube)
9163360625	91631-60622	Screw
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9331514012	93315-14012	Screw with washer
9338515010	93385-15010	Screw(For Steering Tilt Lever)
9413060600	94130-60600	Nut, Wire Adjusting, No.1
9418040800	94180-40800	NUT
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9461410600	94614-10600	Washer (For Primary Regulator Valve)
9461410600	94613-10601	Washer (For Primary Regulator Valve)
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
33878-27020	Label, Shift Lock Information, No.2	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45026-28010	Cover Sub-Assy, Steering Column Hole, No.2	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45196-30010	Label, Steering Shaft Instal Caution	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45196-30020	Label, Steering Shaft Instal Caution	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45204-28071	Tube Assy, Steering Column, Lower	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45205-28110	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45205-28120	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45209-16010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45210-28090	Shaft Assy, Steering Main	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45215-12010	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45260-28020	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45266-12020	Cover, Steering Intermediate Shaft Dust	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45271-12060	Clamp, Steering Column, Upper	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45273-28010	Bush, Steering Main Shaft	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45280-28190	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45283-22010	Plate, Safety Caution	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45286-28210-B0	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45286-28210-E2	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45286-28230-B0	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45286-28230-E1	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45287-28230-B0	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45287-28230-E2	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45287-28270-B0	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45287-28270-E1	Cover, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45819-22060	Retainer, Tilt Lever	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45820-35010	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45826-22050	Lever, Steering Tilt	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45827-22030	Lever, Steering Tilt Sub	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45831-22020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45856-22010	Bolt, Tilt Steering, No.1	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45870-28060	Tube Assy, Steering Column	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45880-28011	Lever Assy, Steering Tilt	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45890-20110	Pawl Assy, Tilt Steering	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45890-22090	Pawl Assy, Tilt Steering	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22030	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22040	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22050	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22060	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22070	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22080	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22090	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22100	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22110	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45893-22120	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90080-11396	Bolt	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90080-11555	Bolt w-washer	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90109-06162	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90164-50048	SCREW	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90179-06009	Nut (For Transmission Control Cable)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90179-06156	Nut (For Transmission Control Cable)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90179-10055	NUT	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90363-18005	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90363-18009	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90363-18010	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90386-06043	Bush(For Steering Column Tube)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90501-40017	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90504-25002	Spring(For Steering Column Tube)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90507-08010	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90507-12035	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
91631-60622	Screw	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
91633-60625	Screw(For Steering Column Tube)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
91651-60816	BOLT	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
91651-60820	Bolt, Radiator Side Support Plate	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
91651-B0820	Bolt, Radiator Side Support Plate	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
93315-14012	Screw with washer	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
93385-15010	Screw(For Steering Tilt Lever)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
94130-60600	Nut, Wire Adjusting, No.1	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
94180-40800	NUT	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
94512-00600	Washer, Seal(For Head Cover Set)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
94614-10600	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
96160-00800	Ring, E(For Counter Weight)	Steering Column & Shaft ([01.1992 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9201-9308)F ; (9201- ))
