CXR10

Toyota ESTIMA-EMINA-LUCIDA · 1992 · 5,610 parts · 218 categories

5,610 items

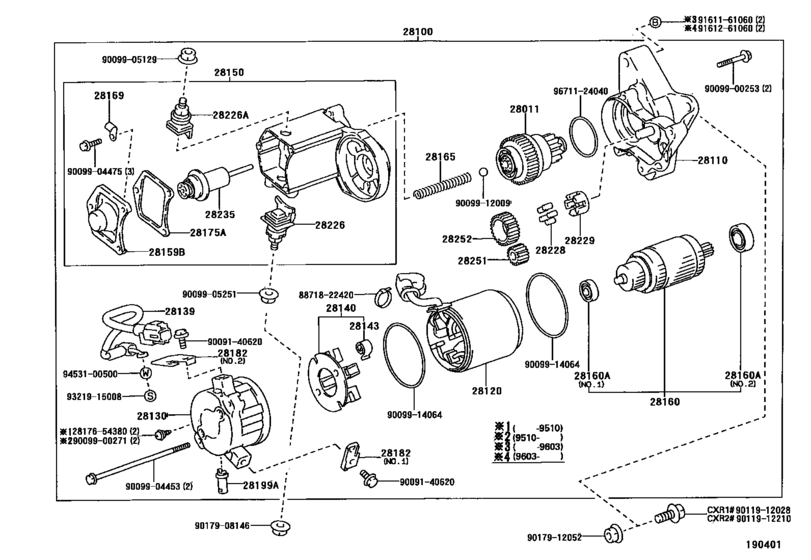

Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE) 70

#	OEM	Part name
28011	28011-64150	Clutch Sub-Assy, Starter
28011	28011-64280	Clutch Sub-Assy, Starter
28100	28100-64160	Starter Assy
28100	28100-64360	Starter Assy
28110	28110-64360	Housing Assy, Starter Drive
28110	28115-64160	Housing Assy, Starter Drive
28120	28120-54380	Yoke Assy, Starter
28120	28120-64160	Yoke Assy, Starter
28130	28130-64360	Frame Assy, Starter Commutator End
28139	28139-64150	Wire, Lead, No.1(For Starter)
28139	28139-67031	Wire, Lead, No.1(For Starter)
28139	28139-67030	Wire, Lead, No.1(For Starter)
28140	28140-54380	Holder Assy, Starter Brush
28140	28140-64040	Holder Assy, Starter Brush
28143	28143-54380	Spring, Starter Brush
28143	90099-17115	Spring, Starter Brush
28150	28150-64160	Switch Assy, Magnet Starter
28150	28150-64360	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-54380	Cover, Magnet Switch
28160	28160-54380	Armature Assy, Starter
28160	28160-64041	Armature Assy, Starter
28160	28253-54070	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28160	90099-10208	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28169	28169-54380	Clamp, Starter Motor Lead Wire
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-54380	Gasket, Magnet Switch Cover
28182	28182-64360	Stay, Starter Commutator End Frame
28182	28182-67020	Stay, Starter Commutator End Frame
28199	28199-64160	Protector, Dust Starter
28199	28199-64360	Protector, Dust Starter
28226	28226-64160	Starter Kit, Battery Terminal
28226	28226-64361	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-64020	Starter Kit, Battery Terminal
28226	28226-64360	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-35080	Plunger, Magnet Switch
28235	28235-54380	Plunger, Magnet Switch
28251	28251-54070	Plate, Lead, Switch Connecting
28251	28254-54380	Pinion, Starter Drive
28252	28254-64040	Pinion, Starter Drive
28252	28254-64130	Pinion, Starter Drive
2817654380	28176-54380	Screw, Starter
8871822420	88718-22420	Pipe, Cooler Refrigerant Suction, No.2
9009140620	90091-40620	BOLT FLANGE
9009900253	90099-00253	New Genuine Part
9009900271	90099-00271	Screw, Starter
9009904453	90099-04453	New Genuine Part
9009904475	90099-04475	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009905251	90099-05251	New Genuine Part
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9011912028	90119-12028	Bolt(For Transmission Case & Engine Setting)
9011912210	90119-12210	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017912052	90179-12052	Nut (For Front Lower Ball Joint Setting)
9161161060	91611-61060	Bolt(for Clutch Release Cylinder Setting)
9161161060	91612-61060	Bolt(for Clutch Release Cylinder Setting)
9321915008	93219-15008	New Genuine Part
9453100500	94531-00500	WASHER,WAVE
9671124040	96711-24040	Ring, O(For Starter Clutch)

OEM	Part name	Category
28011-64150	Clutch Sub-Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28011-64280	Clutch Sub-Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28100-64160	Starter Assy	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28100-64360	Starter Assy	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28110-64360	Housing Assy, Starter Drive	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28115-64160	Housing Assy, Starter Drive	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28120-54380	Yoke Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28120-64160	Yoke Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28130-64360	Frame Assy, Starter Commutator End	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28139-64150	Wire, Lead, No.1(For Starter)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28139-67030	Wire, Lead, No.1(For Starter)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28139-67031	Wire, Lead, No.1(For Starter)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28140-54380	Holder Assy, Starter Brush	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28140-64040	Holder Assy, Starter Brush	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28143-54380	Spring, Starter Brush	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28150-64160	Switch Assy, Magnet Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28150-64360	Switch Assy, Magnet Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28159-10040	Cover, Magnet Switch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28159-54380	Cover, Magnet Switch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28160-54380	Armature Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28160-64041	Armature Assy, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28169-54380	Clamp, Starter Motor Lead Wire	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28175-10040	Gasket, Magnet Switch Cover	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28175-54380	Gasket, Magnet Switch Cover	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28176-54380	Screw, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28182-64360	Stay, Starter Commutator End Frame	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28182-67020	Stay, Starter Commutator End Frame	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28199-64160	Protector, Dust Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28199-64360	Protector, Dust Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28226-64020	Starter Kit, Battery Terminal	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28226-64160	Starter Kit, Battery Terminal	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28226-64360	Starter Kit, Battery Terminal	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28226-64361	Starter Kit, Battery Terminal	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28226-72010	Starter Kit, Motor Terminal	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28229-26040	Retainer, Starter Idle Gear	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28229-74070	Retainer, Starter Idle Gear	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28235-35080	Plunger, Magnet Switch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28235-54380	Plunger, Magnet Switch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28251-54070	Plate, Lead, Switch Connecting	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28253-54070	Bearing, Starter Armature	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28254-54380	Pinion, Starter Drive	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28254-64040	Pinion, Starter Drive	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
28254-64130	Pinion, Starter Drive	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
88718-22420	Pipe, Cooler Refrigerant Suction, No.2	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90091-40620	BOLT FLANGE	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-00253	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-00271	Screw, Starter	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-04453	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-04475	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-05251	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-10143	Bearing, Starter Armature	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-10197	Bearing, Starter Armature	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-10208	Bearing, Starter Armature	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-12009	Ball, Starter Clutch	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-14064	Rubber(For Starter Yoke)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90099-17115	Spring, Starter Brush	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90119-12028	Bolt(For Transmission Case & Engine Setting)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90119-12210	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90179-08146	Nut	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90179-08204	Nut	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
90179-12052	Nut (For Front Lower Ball Joint Setting)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
91611-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
91612-61060	Bolt(for Clutch Release Cylinder Setting)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
93219-15008	New Genuine Part	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
94531-00500	WASHER,WAVE	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
96711-24040	Ring, O(For Starter Clutch)	Starter ([01.1995 - ] 12V 2.0KW (9501- )3CTE)
