Search › Model › CXM10
CXM10

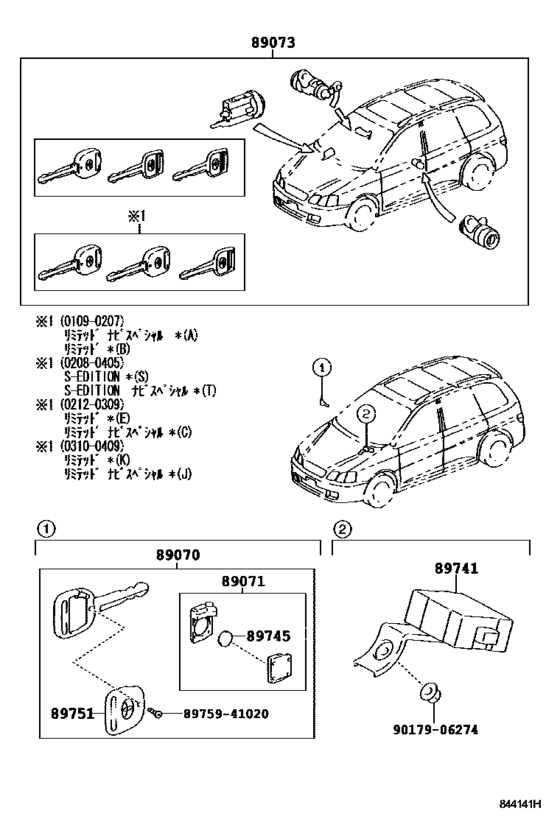

Wireless Door Lock ([04.2001 - ] (0104- )) 12
| # | OEM | Part name |
|---|---|---|
| 89070 | 89070-12011 | Transmitter Assy, Door Control |
| 89070 | 89070-44070 | Transmitter Assy, Door Control |
| 89071 | 89071-12021 | Module Set, Transmitter Sub-Assy, Door Control |
| 89073 | 89073-44020 | Cylinder Set, Lock W/transmitter Housing(Less Module) |
| 89741 | 89741-44100 | Receiver, Door Control |
| 89745 | 89745-26010 | Battery, Transmitter |
| 89745 | 89745-50010 | Battery, Transmitter |
| 89745 | 89745-71010 | Battery, Transmitter |
| 89751 | 89751-44010 | Cover, Transmitter Housing |
| 89751 | 89751-44050 | Cover, Transmitter Housing |
| 8975941020 | 89759-41020 | Screw, Door Control Transmitter |
| 9017906274 | 90179-06274 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 89070-12011 | Transmitter Assy, Door Control | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89070-44070 | Transmitter Assy, Door Control | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89071-12021 | Module Set, Transmitter Sub-Assy, Door Control | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89073-44020 | Cylinder Set, Lock W/transmitter Housing(Less Module) | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89741-44100 | Receiver, Door Control | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89745-26010 | Battery, Transmitter | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89745-50010 | Battery, Transmitter | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89745-71010 | Battery, Transmitter | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89751-44010 | Cover, Transmitter Housing | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89751-44050 | Cover, Transmitter Housing | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 89759-41020 | Screw, Door Control Transmitter | Wireless Door Lock ([04.2001 - ] (0104- )) |
| 90179-06274 | Nut | Wireless Door Lock ([04.2001 - ] (0104- )) |
