CXM10

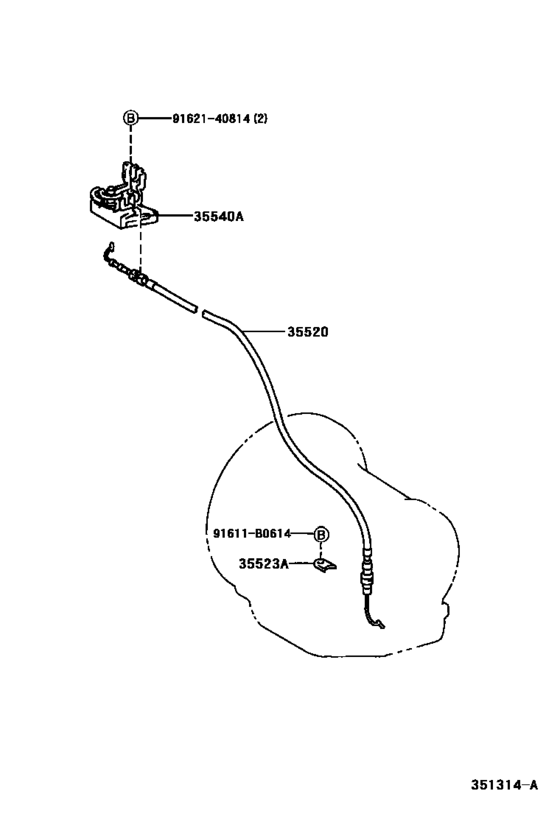

Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) 5
| # | OEM | Part name |
|---|---|---|
| 35520 | 35520-44030 | Cable Assy, Throttle |
| 35523 | 35523-12080 | Clamp, Throttle Cable |
| 35540 | 35540-44010 | Bracket Assy, Throt Link Bellcrank |
| 91611 | 91611-B0614 | Bolt (For Rear Differential Breather Plug Oil Deflector) |
| 9162140814 | 91621-40814 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 35520-44030 | Cable Assy, Throttle | Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) |
| 35523-12080 | Clamp, Throttle Cable | Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) |
| 35540-44010 | Bracket Assy, Throt Link Bellcrank | Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) |
| 91611-B0614 | Bolt (For Rear Differential Breather Plug Oil Deflector) | Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) |
| 91621-40814 | Bolt | Throttle Link & Valve Lever (Atm) ([05.1998 - ] A241E (9805- )CXM10) |
