Search › Model › CXM10

CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories

4,816 items

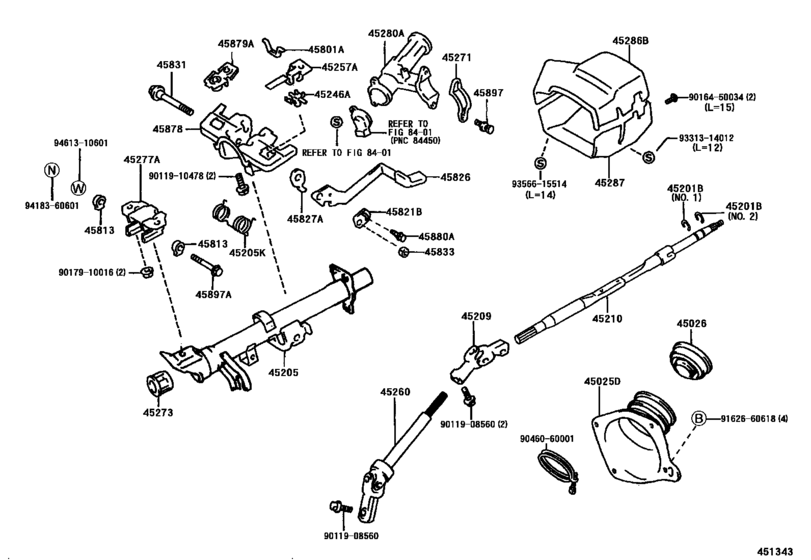

Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104)) 47

#	OEM	Part name
45025	45025-44040	Cover Sub-Assy, Steering Column Hole, No.1
45026	45026-44020	Cover Sub-Assy, Steering Column Hole, No.2
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90520-17269	Ring, Shaft Snap(For Steering Main Shaft)
45205	45205-44060	Tube Sub-Assy, Steering Column
45205	90949-03027	Spring(For Steering Column Tube)
45209	45209-44010	Yoke Sub-Assy, Steering Sliding
45210	45210-44010	Shaft Assy, Steering Main
45246	45246-12110	Guide, Steering Energy Absorbing Plate
45257	45257-12070	Plate, Steering Column Energy Absorbing
45260	45260-44011	Shaft Assy, Steering Intermediate, No.2
45271	45271-16020	Clamp, Steering Column, Upper
45273	45273-12020	Bush, Steering Main Shaft
45277	45277-12010	Support, Tilt Steering
45280	45280-44020	Bracket Assy, Steering Column, Upper
45286	45286-44050-B1	Cover, Steering Column, Upr
45286	45286-44050-B3	Cover, Steering Column, Upr
45286	45286-44050-E0	Cover, Steering Column, Upr
45287	45287-44050-B1	Cover, Steering Column, Lwr
45287	45287-44050-B3	Cover, Steering Column, Lwr
45287	45287-44050-E0	Cover, Steering Column, Lwr
45801	45875-12010	Support Sub-Assy, Steering Post
45813	45813-12010	Collar, Tilt Steering Support, No.1
45821	45821-12010	Reinforce, Tilt Steering Support, No.1
45826	45826-44020	Lever, Steering Tilt
45827	45827-12030	Lever, Steering Tilt Sub
45831	45831-12020	Bolt, Tilt Lever Lock, No.1
45833	45833-12010	Nut, Tilt Steering Adjusting, No.1
45878	45878-12220	Bracket, Steering Column Upper Support
45879	45879-12050	Capsule, Break Away
45880	45832-12010	Bolt(For Steering Tilt Lever)
45897	45897-12020	Bolt, Steering Lock Set
45897	45897-12040	Bolt, Tilt Steering Pawl Set
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9011910478	90119-10478	New Genuine Part
9016450034	90164-50034	Direct
9016450034	93568-55014	Screw
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9046060001	90460-60001	Clamp(For Air Cleaner Hose, No.3)
9162660618	91626-60618	New Genuine Part
9162660618	91621-J0614	BOLT W-WASHER
9331314012	93313-14012	SCREW
9356615514	93566-15514	Direct
9418360601	94183-60601	New Genuine Part
9461310601	94613-10601	Washer (For Primary Regulator Valve)

OEM	Part name	Category
45025-44040	Cover Sub-Assy, Steering Column Hole, No.1	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45026-44020	Cover Sub-Assy, Steering Column Hole, No.2	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45205-44060	Tube Sub-Assy, Steering Column	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45209-44010	Yoke Sub-Assy, Steering Sliding	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45210-44010	Shaft Assy, Steering Main	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45246-12110	Guide, Steering Energy Absorbing Plate	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45257-12070	Plate, Steering Column Energy Absorbing	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45260-44011	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45271-16020	Clamp, Steering Column, Upper	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45273-12020	Bush, Steering Main Shaft	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45277-12010	Support, Tilt Steering	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45280-44020	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45286-44050-B1	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45286-44050-B3	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45286-44050-E0	Cover, Steering Column, Upr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45287-44050-B1	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45287-44050-B3	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45287-44050-E0	Cover, Steering Column, Lwr	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45813-12010	Collar, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45821-12010	Reinforce, Tilt Steering Support, No.1	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45826-44020	Lever, Steering Tilt	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45827-12030	Lever, Steering Tilt Sub	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45831-12020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45832-12010	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45833-12010	Nut, Tilt Steering Adjusting, No.1	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45875-12010	Support Sub-Assy, Steering Post	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45878-12220	Bracket, Steering Column Upper Support	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45879-12050	Capsule, Break Away	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
45897-12040	Bolt, Tilt Steering Pawl Set	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90080-11555	Bolt w-washer	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90119-10478	New Genuine Part	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90164-50034	Direct	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90179-10016	Nut(For Counter Gear Shaft)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90179-10132	Nut	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90460-60001	Clamp(For Air Cleaner Hose, No.3)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90520-17269	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
90949-03027	Spring(For Steering Column Tube)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
91621-J0614	BOLT W-WASHER	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
91626-60618	New Genuine Part	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
93313-14012	SCREW	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
93566-15514	Direct	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
93568-55014	Screw	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
94183-60601	New Genuine Part	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([05.1998 - 04.2001] (9805-0104))
