Search › Model › CXM10
CXM10

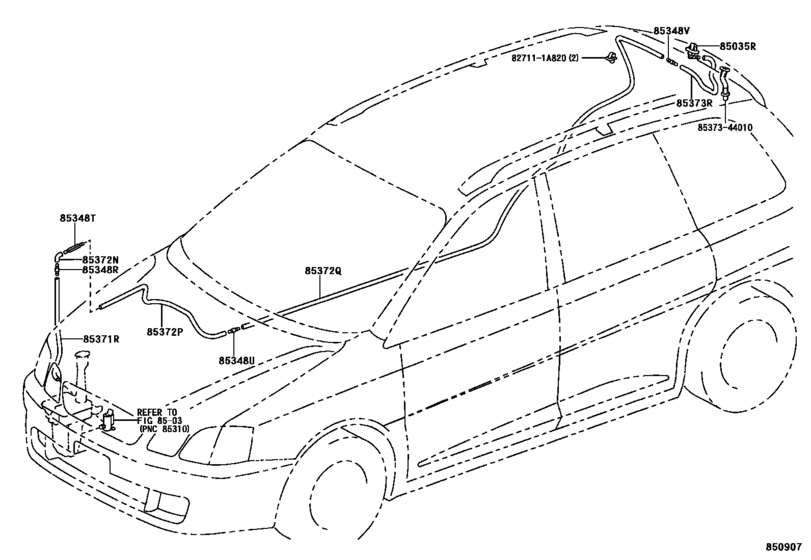

Rear Washer ([04.2001 - ] (0104- )) 9
| # | OEM | Part name |
|---|---|---|
| 85035 | 85391-44020 | Nozzle Sub-Assy, Rear Washer |
| 85348 | 85349-89122 | Valve Sub-Assy, Washer |
| 85348 | 85349-32150 | Joint, Windshield Washer Hose, No.1 |
| 85371 | 90099-33299 | Joint, Windshield Washer Elbow, No.2 |
| 85371 | 90446-07001 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90099-33595 | Hose, Rear Washer (From Joint To Joint), No.1 |
| 827111 | 82711-1A820 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8537344010 | 85373-44010 | Grommet, Rear Washer Hose |
| OEM | Part name | Category |
|---|---|---|
| 82711-1A820 | Wire, Fuse To Fuse(for Combustion Heater) | Rear Washer ([04.2001 - ] (0104- )) |
| 85349-32150 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([04.2001 - ] (0104- )) |
| 85349-89122 | Valve Sub-Assy, Washer | Rear Washer ([04.2001 - ] (0104- )) |
| 85373-44010 | Grommet, Rear Washer Hose | Rear Washer ([04.2001 - ] (0104- )) |
| 85391-44020 | Nozzle Sub-Assy, Rear Washer | Rear Washer ([04.2001 - ] (0104- )) |
| 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([04.2001 - ] (0104- )) |
| 90099-33299 | Joint, Windshield Washer Elbow, No.2 | Rear Washer ([04.2001 - ] (0104- )) |
| 90099-33595 | Hose, Rear Washer (From Joint To Joint), No.1 | Rear Washer ([04.2001 - ] (0104- )) |
| 90446-07001 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([04.2001 - ] (0104- )) |
