CXM10

Toyota GAIA · 1998 · 4,816 parts · 234 categories
CXM10 ×

← Back to categories

4,816 items

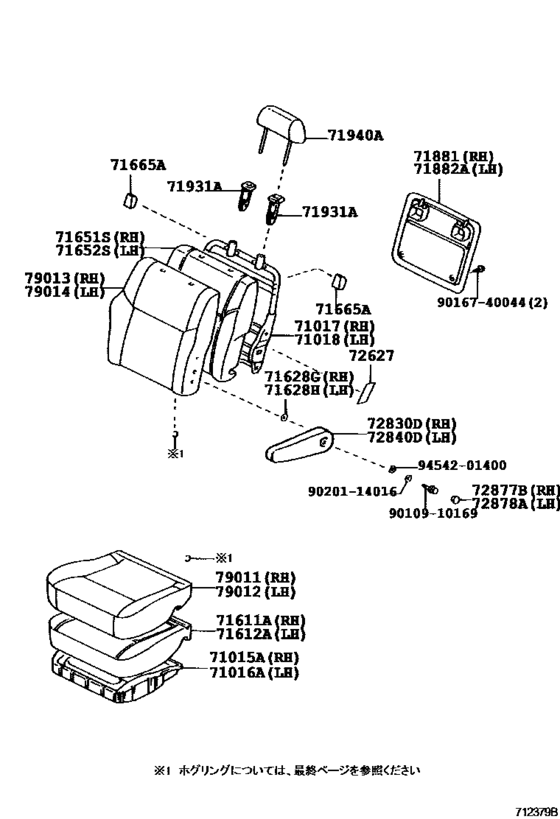

Rear Seat & Seat Track ([08.2002 - ] ﾘﾔ NO.1 ｼ-ﾄ (0208- )07S) 158
#OEMPart name
71015 71015-44030 Frame Sub-Assy, Rear Seat Cushion, Rh
71016 71016-44020 Frame Sub-Assy, Rear Seat Cushion, Lh
71017 71017-44040 Frame Sub-Assy, Rear Seat Back, Rh
71017 79103-44010 Frame Sub-Assy, Rear Seat Back, Rh
71018 79104-44010 Frame Sub-Assy, Rear Seat Back, Lh
71611 79135-44110 Pad, Rear Seat Cushion, Rh
71612 79136-44040 Pad, Rear Seat Cushion, Lh
71628 71628-44030 Spacer, Rear Seat Cushion, Rh
71651 79175-44010 Pad, Rear Seat Back, Rh(For Separate Type)
71651 79175-44120 Pad, Rear Seat Back, Rh(For Separate Type)
71652 79185-44010 Pad, Rear Seat Back, Lh(For Separate Type)
71652 79185-44080 Pad, Rear Seat Back, Lh(For Separate Type)
71665 71665-44010 Pad, Rear Seat Back, Side A
71665 71665-44020 Pad, Rear Seat Back, Side A
71811 71811-44020-A0 Shield, Rear Seat Cushion, Rh
71811 71811-44020-B1 Shield, Rear Seat Cushion, Rh
71812 71812-44020-A0 Shield, Rear Seat Cushion, Lh
71812 71812-44020-B1 Shield, Rear Seat Cushion, Lh
71833 90467-05017-A0 Clip (For Rear Seat Reclining Cover)
71861 71861-44070-A0 Shield, Rear Seat Cushion, Inner Rh
71861 71861-44070-B0 Shield, Rear Seat Cushion, Inner Rh
71862 71862-44070-A0 Shield, Rear Seat Cushion, Inner Lh
71862 71862-44070-B0 Shield, Rear Seat Cushion, Inner Lh
71881 71881-44010-A0 Board, Rear Seat Back, Rh
71881 71881-44010-C0 Board, Rear Seat Back, Rh
71881 71881-44020-A0 Board, Rear Seat Back, Rh
71931 71930-44010-A1 Support, Front Seat Headrest
71931 71930-44010-C0 Support, Front Seat Headrest
71931 71930-44010-E5 Support, Front Seat Headrest
71931 71931-28030-A1 Support, Front Seat Headrest
71931 71931-28030-C0 Support, Front Seat Headrest (BLACK)
71931 71931-28030-E7 Support, Front Seat Headrest
71940 71910-44050-A0 Headrest Assy, Front Seat
71940 71910-44060-A0 Headrest Assy, Front Seat
71940 71910-44320-A0 Headrest Assy, Front Seat
71940 71910-44330-A0 Headrest Assy, Front Seat
72129 72129-44020 Protector, Seat Track Lower Rail
72129 72129-44040 Protector, Seat Track Lower Rail
72160 72160-44011 Track Assy, Rear Seat, Outer Rh
72160 72160-44021 Track Assy, Rear Seat, Outer Rh
72170 72170-44011 Track Assy, Rear Seat, Outer Lh
72170 72170-44021 Track Assy, Rear Seat, Outer Lh
72210 72210-44011 Cable Assy, Seat Track Control
72265 72265-44010-A0 Cover, Seat Track Upper Rail, Rh
72265 72265-44010-B1 Cover, Seat Track Upper Rail, Rh
72265 72265-44020-A0 Cover, Seat Track Upper Rail, Rh
72265 72265-44020-B1 Cover, Seat Track Upper Rail, Rh
72266 72266-44010-A0 Cover, Seat Track Upper Rail, Lh
72266 72266-44010-B1 Cover, Seat Track Upper Rail, Lh
72266 72266-44020-A0 Cover, Seat Track Upper Rail, Lh
72266 72266-44020-B1 Cover, Seat Track Upper Rail, Lh
72345 72345-44010 Pipe,reclining Connecting, Rh
72345 72345-44020 Pipe,reclining Connecting, Rh
72506 72506-44020 Rod Sub-Assy, Reclining Connecting, Rh
72506 72506-44030 Rod Sub-Assy, Reclining Connecting, Lh
72525 72525-16010-A1 Handle, Reclining Adjuster Release, Rh
72525 72525-16010-A0 Handle, Reclining Adjuster Release, Rh
72525 72525-44010-A0 Handle, Reclining Adjuster Release, Rh
72525 72525-44010-B0 Handle, Reclining Adjuster Release, Rh
72526 72526-16010-A1 Handle, Reclining Adjuster Release, Lh
72526 72526-16010-A0 Handle, Reclining Adjuster Release, Lh
72526 72526-44010-A0 Handle, Reclining Adjuster Release, Lh
72526 72526-44010-B0 Handle, Reclining Adjuster Release, Lh
72530 72530-44060 Adjuster Assy, Reclining Seat, Inner Rh
72540 72540-44060 Adjuster Assy, Reclining Seat, Inner Lh
72627 72627-44020 Plate, Rear Seat Back Protector
72637 72637-44030-A0 Handle, Rear Seat Lock
72637 72637-44030-B1 Handle, Rear Seat Lock
72638 72638-44030-A0 Handle, Rear Seat Lock, Lh
72638 72638-44030-B1 Handle, Rear Seat Lock, Lh
72704 72704-44010 Cable, Rear Seat Reclining Control
72704 72704-44031 Cable, Rear Seat Reclining Control
72730 72510-44050 Adjuster Assy, Rear Seat Reclining, Rh
72730 72710-44010 Adjuster Assy, Rear Seat Reclining, Rh
72740 72520-44050 Adjuster Assy, Rear Seat Reclining, Lh
72740 72720-44010 Adjuster Assy, Rear Seat Reclining, Lh
72830 72830-44270-A0 Armrest Assy, Rear Seat, Rh
72830 72830-44280-A0 Armrest Assy, Rear Seat, Rh
72840 72840-44140-A0 Armrest Assy, Rear Seat, Lh
72840 72840-44150-A0 Armrest Assy, Rear Seat, Lh
72877 72877-32070-A1 Cover, Seat Armrest, Rh
72877 72877-32070-A0 Cover, Rear Seat Armrest Hole
72995 72995-44010-A0 Cover, No.1 Seat Cushion, Rh
72995 72995-44010-B0 Cover, No.1 Seat Cushion, Rh
72996 72996-44010-A0 Cover, Rear Seat Back, Rh
72996 72996-44010-B1 Cover, Rear Seat Back, Rh
72996 72996-44030-A0 Cover, Rear Seat Back, Rh
72996 72996-44030-B1 Cover, Rear Seat Back, Rh
72996 72997-44010-A0 Cover, Rear Seat Back, Inner Rh
72996 72997-44010-B1 Cover, Rear Seat Back, Inner Rh
72996 72997-44030-A0 Cover, Rear Seat Back, Inner Rh
72996 72997-44030-B1 Cover, Rear Seat Back, Inner Rh
72997 72997-44020-A0 Cover, Rear Seat Back, Lh
72997 72997-44020-B1 Cover, Rear Seat Back, Lh
72997 72996-44020-A0 Cover, Rear Seat Back, Inner Lh
72997 72996-44020-B1 Cover, Rear Seat Back, Inner Lh
72998 72998-44010-A0 Cover, No.1 Seat Cushion, Lh
72998 72998-44010-B0 Cover, No.1 Seat Cushion, Lh
79011 79011-44550-A0 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-44560-A0 Cover Sub-Assy, No.1 Seat Cushion, Rh
79012 79012-44120-A0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79012 79012-44130-A0 Cover Sub-Assy, No.1 Seat Cushion, Lh
79013 79013-44070-B0 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-44090-B0 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-44470-A0 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-44490-A0 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-44570-A0 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-44590-A0 Cover Sub-Assy, No.1 Seat Back, Rh
79014 79014-44070-B0 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-44090-B0 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-44400-A0 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-44420-A0 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-44480-A0 Cover Sub-Assy, No.1 Seat Back, Lh
79014 79014-44500-A0 Cover Sub-Assy, No.1 Seat Back, Lh
79169 79169-44010 Rod, Rear Seat Hinge Connector
79169 79169-44020 Rod, Rear Seat Hinge Connector
79187 79187-44010-A0 Cover, No.1 Seat Inner Bracket
79187 79187-44010-B1 Cover, No.1 Seat Inner Bracket
79187 79187-44070-A0 Cover, No.1 Seat Inner Bracket
79187 79187-44020-A0 Cover, No.1 Seat Inner Bracket, Lh
79187 79187-44020-B1 Cover, No.1 Seat Inner Bracket, Lh
79187 79187-44080-A0 Cover, No.1 Seat Inner Bracket, Lh
79188 79188-44010-A0 Cover, No.1 Seat Outer Bracket
79188 79188-44010-B1 Cover, No.1 Seat Outer Bracket
79188 79188-44030-A0 Cover, No.1 Seat Outer Bracket
79188 79188-44030-B1 Cover, No.1 Seat Outer Bracket
79188 79188-44020-A0 Cover, No.1 Seat Outer Bracket, Lh
79188 79188-44020-B1 Cover, No.1 Seat Outer Bracket, Lh
79188 79188-44040-A0 Cover, No.1 Seat Outer Bracket, Lh
79955 79955-44010-A0 Cover, Rear Seat Front Bracket, Rh
79955 79955-44010-B0 Cover, Rear Seat Front Bracket, Rh
79956 79966-44010-A0 Cover, Rear Seat Leg Side, Rh
79956 79966-44010-B1 Cover, Rear Seat Leg Side, Rh
79956 79966-44020-A0 Cover, Rear Seat Leg Side, Lh
79956 79966-44020-B1 Cover, Rear Seat Leg Side, Lh
79956 79956-44010-A0 Cover, Rear Seat Front Bracket, Lh
79956 79956-44010-B0 Cover, Rear Seat Front Bracket, Lh
79957 79957-44010-A0 Cover, Rear Seat Rear Bracket, Rh
79957 79957-44010-B0 Cover, Rear Seat Rear Bracket, Rh
79958 79958-44010-A0 Cover, Rear Seat Rear Bracket, Lh
79958 79958-44010-B0 Cover, Rear Seat Rear Bracket, Lh
79959 79959-44010-A0 Cover, Rear Seat Leg, Rh
79959 79959-44010-B1 Cover, Rear Seat Leg, Rh
79959 79959-44020-A0 Cover, Rear Seat Leg, Lh
79959 79959-44020-B1 Cover, Rear Seat Leg, Lh
91511 91511-B0816 BOLT
91511 90080-10159 New Genuine Part
9010910169 90109-10169 BOLT
9011910473 90119-10473 New Genuine Part
9011910842 90119-10842 New Genuine Part
9011910862 90119-10862 New Genuine Part
9011910862 90119-10827 New Genuine Part
9016740044 90167-40044 BOLT
9016840043 90168-40043 SCREW
9020114016 90201-14016 WASHER
9151560845 91515-60845 New Genuine Part
9417060820 94170-60820 New Genuine Part
9454201400 94542-01400 Spacer, Center Seat Hinge
